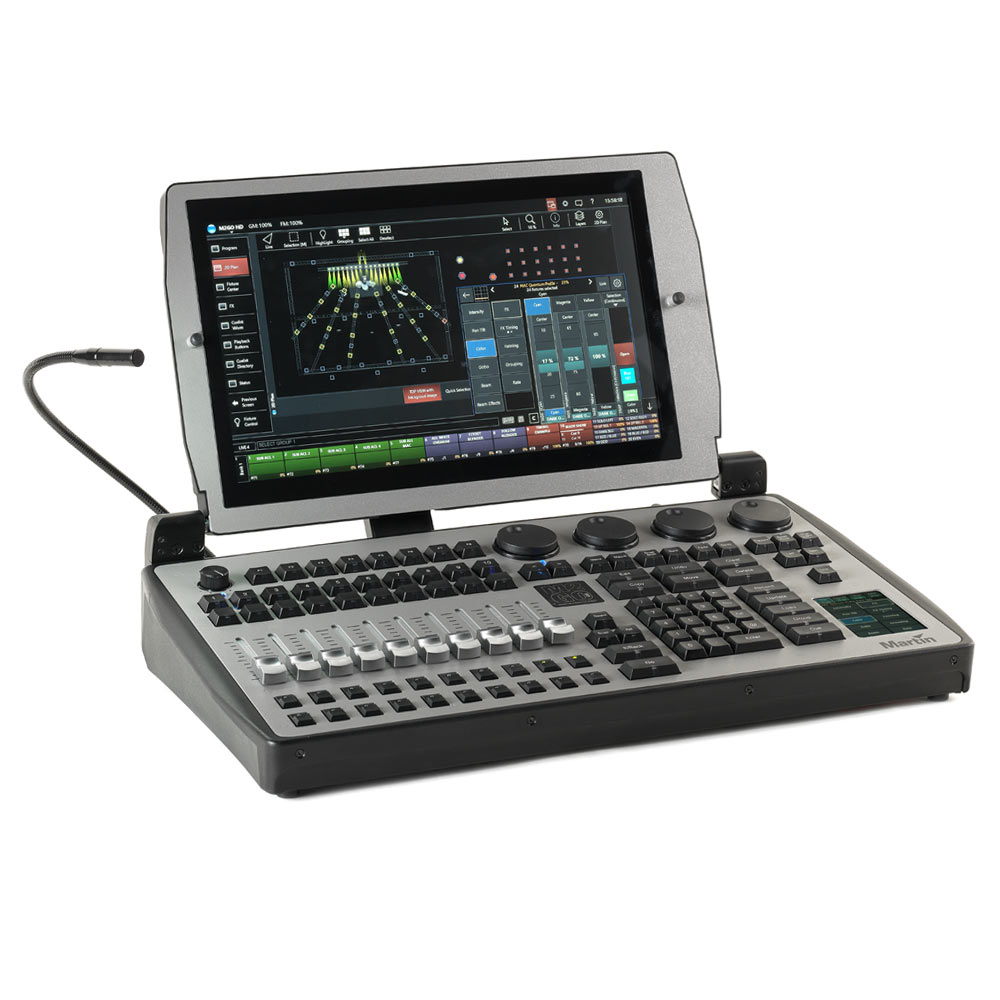

Martin Professional M2GO HD
20 Universe Lighting Control Surface with Integrated Touchscreen

OUR PART #:  M2GO-HD

The Martin Professional M2GO HD has a large footprint and small built-in touchscreen.
Learn More

Call for price! Not available online.
List Price: $9,995.00

Similar Products

The Martin Professional M2GO HD has a large footprint and small built-in touchscreen. The M2GO HD offers a professional level of features in a portable package and has been developed with cost, ergonomics, feature set, size and weight in mind. The M2GO HD is a unique, portable and powerful lighting console.

Martin Professional M2GO-HD Includes:

  • 1.5 m power cable, EU (Schuko), 3-pin IEC
  • 1.5 m power cable, US, 3-pin IEC
  • MW 12 VDC 5 A external PSU
  • LED desklight, angular XLR, 13": P/N 91613090
  • Martin™ One-Key: ShowDesigner 6™ Lite 3D Visualizer180-day trial
  • M-PC Pro with 64 Universe License
  • M2GO HD dust cover

Martin Professional M2GO-HD Features:

  • High resolution folding capacitive multi-touchscreen
  • Integrated Industrial high speed processing
  • 3.5” touchscreen for fast and direct parameter access
  • 8 digital encoders for parameter control
  • 8 customizable function keys
  • 4x DMX Universes direct from the console; up to 20Universes via Artnet and sACN without external processors
  • Controls up to 10240 parameters
  • Built-in 2D visualizer for selection and real-timevisualization
  • Customizable Graphical User Interface with contextsensitive toolbars and integrated Help menu
  • Powerful effects engine
  • 1000 cuelists with fader control
  • 1000 cuelists with playback control buttons
  • Parallel execution of multiple cuelists
  • Submaster, Groupmaster and Override functionality
  • Parameter and Time-fanning functionality
  • Auto update for presets and cues
  • On-the-fly global timing adjustments
  • M-Series Manager Software for programming andtriggering via time and calendar schedules, , RS232 and IP triggers
  • Multiple wing attachment (M-Series Modules)
  • MaxNet synchronized programming and playback support

Martin Professional M2GO-HD Specifications:

  • Physical:
    • Length: 11.9" (300 mm)
    • Width: 21.3" (540 mm)
    • Height: 3.9" (99 mm)\
    • Weight: 11.5 lbs. (5.2 kg)
  • Control and Programming:
    • Protocol: DMX512A (RDM), Artnet2, sACN
    • 4 physical DMX ports
    • 20 DMX universes integrated
    • No limit to number of DMX channels per fixture
    • Extensive fixture library for all known manufacturers
    • 65000 presets for each group of functions (P/T, color, gobo, etc.)
    • Effect generator for automated programming of complex effects
    • Customizable highlight and lowlight function to identify individual fixtures
    • Relative or absolute programming
    • Fan function for all channels (including timing parameters)
    • On-the-fly global timing changes
    • Virtual cuelists
    • Macros
    • Wait, follow and link cues
    • HTP, LTP, chase, timecode, submaster and group master playback functionality
    • Individual parameter timings Intuitive patch feature
    • Fixture type cloning
    • All channels with 16-bit resolution
  • Control/User Interface:
    • Main playback interface: Ten 60 mm playback faders, each with four function-assignable buttons
    • Eight customizable multi-function keys
    • Playback Select button
    • Master Go section with Go, Pause, Snap and Release
    • Four digital rotary encoders with push function and status LED for fixture parameter control
    • 3.5” touchscreen for parameter groups, effect parameters, fanning and global timings and button
    • Built-in 2D visualizer for selection and real-time visualization Grand master rotary fader
    • Blind/preview button
    • Customizable highlight/lowlight function
    • Customizable parameter defaults
    • Next/last fixtures/groups
    • Large command keys
  • Playback:
    • Assign a cue, cuelist or effect to any playback fader
    • 500 playback banks, each containing 10 playbacks
    • 100 pages of 100 playbacks activated by touchscreen button
    • No limit to cues per cuelist
    • Full 16-bit fading for high-resolution fixtures
    • Individual fade in/fade out times for all playbacks
    • Manual override available at all times
    • Live 0-1000% override of global cue timings
    • Live programmer timing (“Sneak”)
    • Cuelists can be executed in tracking or non-tracking mode
  • Hardware:
    • Industrial 15.6 inch TFT 16:9 touchscreen (1376x768 pixels)
    • 3.5" RGB touchscreen
    • 64 GB SSD storage drive
    • Industrial motherboard with Intel Quad-Core processor
    • 8 GB RAM
    • Integrated graphics processor
  • Software:
    • Windows 10 Embedded OS
    • OS installation by USB 3.0 storage device
    • Show backup on hard disk or USB storage device (not included)
    • Support for ELO and Windows USB touchscreens
  • Connections:
    • 4 x DMX universe outputs: 5-pin locking XLR
    • External monitor screen: VGA and HDMI
    • Artnet/sACN for up to 20 DMX universes in total: Gigabit
    • RJ-45 MaxNet controller link: Gigabit RJ-45
    • Storage media/hardware peripherals: USB 3.0
    • Built-in Internal MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode)
    • Built-in Internal SMPTE Timecode In/Out: 3-pin XLR
    • 12 VDC power supply input: 4-pin XLR
    • Desk lamp (dimmable): XLR
    • USB (storage media/hardware peripherals):
      • Back of mainboard: 2 x USB 3.0
      • Side of console: 1 x USB 2.0
  • Electrical:
    • AC mains power to 12 VDC external PSU (included): 100-240 V nominal, 50/60 Hz
    • Maximum current: 1.4 A
    • 12 VDC output: 5 A, 60 W max.
  • Accessories:
    • Replacement 12 VDC external PSU: P/N 91613100
    • Replacement LED desk lamp: P/N 91613090
    • Dust cover for M2GO HD: TBA
    • Flightcase for M2GO HD: TBA
    • Martin™ M-Play: P/N 90737030
  • Related Items:
    • Martin Ether2DMX8™: P/N 90758130
    • Martin M-DMX Interface Box / Martin M-PC 2U package: P/N 90737070
  • Ordering Information: M2GO HD Console: P/N 90737080
