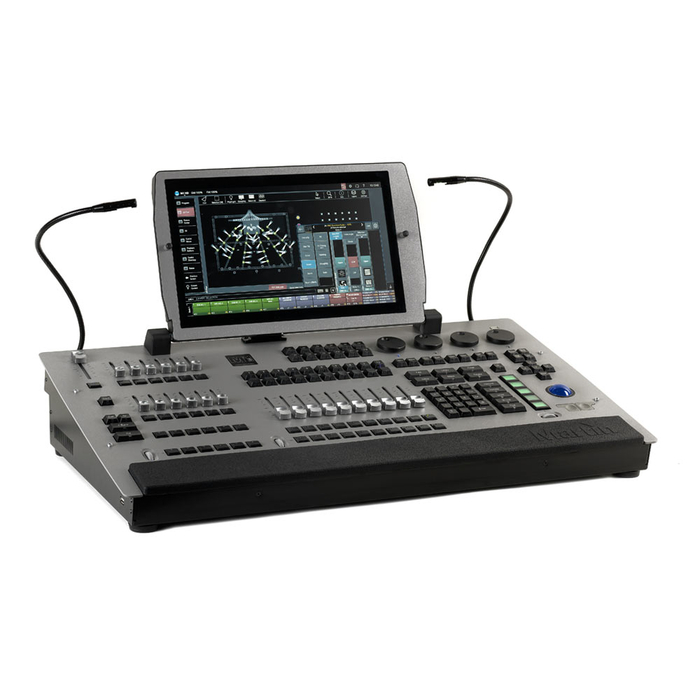

Elation Pro Lighting M1 HD
40 Universe Lighting Console with Integrated Touchscreen


The Elation Professional M1 HD continues the tradition of the M1, being one of the most ergonomic lighting consoles on the market.
Learn More

Call for price! Not available online.
List Price: $14,500.00

Related Products

The Elation Professional M1 HD continues the tradition of the M1, being one of the most ergonomic lighting consoles on the market. The M1 HD has the full power of a larger desk and the agility of a smaller one making it an all-in-one lighting desk. With more processing power than ever, the Elation M1 HD sets again a new standard as the most powerful and affordable full-featured lighting console of its category on the market.

Elation Professional M1 HD Includes:

  • Dust cover for M1: P/N 91613070
  • Two LED desklights, built-in
  • USB Flash Recovery Drive
  • Elation™ One-Key: ShowDesigner 6™ Lite 3D Visualizer 180-day trial
  • M-PC Pro with 64 Universe License

Elation Professional M1 HD Features:

  • High resolution folding capacitive multi-touchscreen
  • Integrated Industrial high speed processing
  • Digital LCD buttons for fast and direct parameter access
  • Eight digital encoders for parameter control
  • 12 customizable function keys
  • Multiple wing attachment (M-Series Modules)
  • 4x DMX Universes direct from the console; up to 40 Universes via Artnet and sACN without external processors
  • M-Series Manager Software for programming and triggering via time and calendar schedules, RS232 and IP triggers
  • Customizable Graphical User Interface with context sensitive toolbars and integrated help menu
  • Powerful effects engine
  • Controls up to 20480 parameters
  • Built-in 2D visualizer for selection and real-time visualization
  • 1000 cuelists with fader control
  • 1000 cuelists with playback control buttons
  • Two separate playback sections
  • Parallel execution of multiple cuelists
  • Submaster, groupmaster and override functionality
  • Parameter and time-fanning functionality
  • Auto update for presets and cues
  • On-the-fly global timing adjustments
  • MaxNet synchronized programming and playback support

Elation Professional M1 HD Specifications:

  • Physical:
    • Length: 32.4" (823 mm)
    • Width: 18.3" (464 mm)
    • Height: 7.0" (178 mm) closed; 15.6" (395 mm) open
    • Weight: 31.8 lbs. (14.4 kg)
    • Shipping weight (in cardboard box): 43.9 lbs. (19.9 kg)
    • Shipping weight (in flightcase): 72.1 lbs. (32.7 kg)
  • Control and Programming:
    • Protocol: DMX512A (RDM), Artnet2, sACN
    • Four physical DMX ports
    • 40 DMX universes
    • Integrated processing, 20480 parameters
    • No limit to number of DMX channels per fixture
    • Extensive fixture library for all known manufacturers
    • 65000 presets for each group of functions (P/T, color, gobo, etc.)
    • Effect generator for automated programming of complex effects
    • Relative or absolute programming
    • Fan function for all channels (including timing parameters)
    • On-the-fly global timing changes
    • Virtual cuelists
    • Macros
    • Wait, follow and link cues
    • HTP, LTP, chase, timecode, submaster and group master playback functionality
    • Individual parameter timings Intuitive patch feature
    • Fixture type cloning
    • All channels with 16-bit resolution
  • Control/User Interface:
    • Main playback: 10 x 60 mm playback faders, each with four function-assignable buttons
    • Sub playback:
      • 24 playbacks
      • Twelve 40 mm playback faders with one assignable button
      • 12 x single assignable buttons
    • Other controls:
      • 2 x scrollwheels for bank changes
      • 12 x customizable multi-function keys
      • Playback Select button
      • Master Go section with Go, Pause, Snap and Release
      • 4 x digital rotary encoders with push function and status LED for fixture parameter control
      • 4 x additional user-definable digital rotary encoders with push function on the right of the main display
      • 5 x dynamically labeled digital LCD buttons for parameter groups, effect parameters, fanning and global timings
      • Grand master fader and button
      • Blind/preview button
      • Customizable highlight/lowlight function
      • Customizable parameter defaults
      • Next/last fixtures/groups
      • Trackball with pan/tilt control switch
      • Left/right mouse button
      • Large command keys
  • Playback:
    • Assign a cue, cuelist or effect to any playback fader
    • 500 playback banks, each containing 10 playbacks
    • 500 sub playback banks, each containing 24 playbacks
    • 100 pages of 100 playbacks activated by touchscreen button
    • No limit to cues per cuelist
    • Full 16-bit fading for high-resolution fixtures
    • Individual fade in/fade out times for all playbacks
    • Manual override available at all times
    • Live 0-1000% override of global cue timings
    • Live programmer timing (“Sneak”)
    • Cuelists can be executed in tracking or non-tracking mode
  • Hardware:
    • Industrial 15.6" TFT 16:9 touchscreen (1376x768 pixels)
    • 64GB SSD storage drive
    • Industrial motherboard, Intel Quad-Core Processor
    • 8 GB RAM Integrated graphics
    • 2 x Integrated LED desklights
  • Software:
    • Windows 10 Embedded OS
    • OS installation by USB 3.0 storage device
    • Show backup on hard disk or USB storage device (not included)
    • Support for ELO and Windows USB touchscreens
  • Connections:
    • 4 x DMX universe outputs: 5-pin locking XLR
    • 1 x DMX in: 5-pin locking XLR
    • External displays: 2x HDMI (1920x1080 pixels)
    • Artnet / sACN for up to 40 DMX universes in total: RJ-45 Ethercon
    • MaxNet controller link: RJ-45 Ethercon
    • 2 x M-Series Module interfaces: RJ-45 Ethercon
    • MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode): 5-pin DIN
    • SMPTE In/Out: 3-pin locking XLR
    • AC power input: Neutrik PowerCon TRUE1
    • USB (storage media/hardware peripherals):
      • Back of mainboard: 4 x USB 3.0
      • Side of console: 2 x USB 2.0
      • Front of console: 1 x USB 2.0
  • Electrical: AC power: 100-240 V nominal, 50/60 Hz
  • Typical Power and Current: 0.75 A, 80 W
  • Accessories:
    • Flightcase for M1 HD Console: P/N TBA
    • Elation M-Play: P/N 90737030
    • Elation M-DMX Interface Box / Elation M-PC 2U package: P/N 90737070
    • Elation Ether2DMX8: P/N 90758130
  • Ordering Information: Elation M1 HD Console: P/N 90732090
