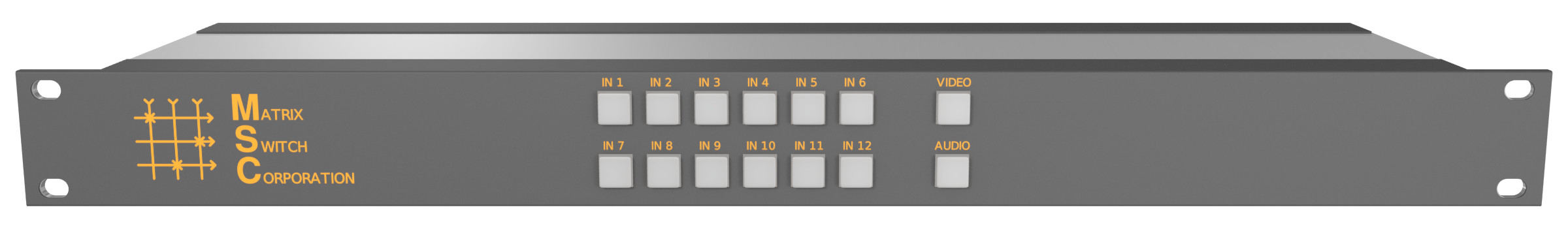

Matrix Switch Corporation MSC-HD121DEL
12 Input 1 Output 3G-SDI Video Router With Button Panel and AES Audio

OUR PART #:  MSC-HD121DEL

The Matrix Switch Corporation MSC-HD121DEL SDI routing switcher has 12 inputs and 1 output, supports reclocking of standard 3G/HD/SD SDI rates...
Learn More
Our Price: $2,065.50
List Price: $2,295.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Matrix Switch Corporation MSC-HD121DEL
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Matrix Switch Corporation MSC-HD121DEL SDI routing switcher has 12 inputs and 1 output, supports reclocking of standard 3G/HD/SD SDI rates, automatic bypass of non-standard rates between 20 Mbit/s and 3 Gbit/s, and passes all SDI embedded audio/ancillary data. In addition any output can be independently muted. Switch on vertical sync is provided with the sync reference input with a pass-through connector and provides support for Tri-level sync and NTSC/PAL black burst signals.

With 4 BNCs per SDI output on this router, the need for additional distribution amplifiers is often eliminated.

Integrated AES-3id audio provides a second matrix level of audio (in addition to SDI embedded audio) with support for AES audio break-away from SDI. AES-3id uses standard 75 ohm coax with BNC connectors .

Matrix Switch Corporation routers provide several options for control and system integration. The built-in webpage interface offers a convenient method for control and configuration using a PC or mobile device. In addition to Matrix Switch Corporation's powerful yet easy to use MASCOT protocol, there is also support for some common 3rd party protocols. Additional control interfaces on this router include: RS-232, and TCP/IP over the Ethernet interface.

Matrix Switch Corporation Remote Panels can also be used with this router for remote control up to a virtually unlimited distance over TCP/IP. The built-in button panel provides an additional interface for directly changing the matrix routing state.

Matrix Switch Corporation MSC-HD121DEL Features:

  • Four BNCs per output often eliminates the need for additional distribution amplifiers
  • Re-clocks standard SDI rates 3G (2.97 Gbit/s), HD (1.484 Gbit/s), and SD (270 Mbit/s)
  • Auto bypass of non-standard SDI rates from 20 Mbit/s to 3 Gbit/s
  • Passes SDI embedded audio and ancillary data
  • Additional 75 ohm AES digital audio level in the same 1RU enclosure with audio break away from SDI support
  • Inputs can be switched to multiple outputs without restriction
  • Outputs can be individually muted
  • Vertical interval switching using vertical sync input (Tri-level sync or NTSC/PAL black burst)
  • Store and recall up to 10 preset salvos
  • Includes button control panel interface
  • Supports Matrix Switch Corporation Remote Panels
  • Ethernet port for control via built in web page interface or TCP/IP ports
  • Interactive web page interface (Interactive Demo)
  • Serial control via RS-232 port
  • Support for some common 3rd party protocols for added integration flexibility
  • System software updates over Ethernet port
  • Compact enclosure design with a depth of only 5"
  • Less than 5 pounds
  • External DC power supply
  • Redundant power supply option (additional charge applies)
  • Complies with all relevant FCC, U/L, CE, and RoHS requirements

Matrix Switch Corporation MSC-HD121DEL Specifications:

  • General:
    • Inputs: 12
    • Outputs: 1
    • Enclosure Type: 1RU
    • Size: 19" x 1.75" x 5"
    • Weight: 5.0 lbs
    • USA List Price: $2,295
    • Power: 5 VDC 4A Adapter
    • Power Connector: 5.5mm OD 2.5mm ID coaxial
    • Panel Type: Buttons
    • Ethernet: 10 Base-T
    • Made in: USA
  • SDI Inputs:
    • Connector Type: BNC
    • Data Rates: 19 Mbit/s through 3.0 Gbit/s
    • Input Return Loss: > 15dB @ HD, > 12dB @ 3G
    • Input Impedance: 75 Ohms +/- 1%
    • Input Level: 800 mV P-P +/- 20%
    • Cable Equalization: 400m @ SD, 140m @ HD, 120m @ 3G (1694A coax)
  • SDI Outputs:
    • Connector Type: BNC
    • Data Rates: 19 Mbit/s through 3.0 Gbit/s
    • Re-clocking Data Rates: 2.97 Gbit/s, 1.485 Gbit/s, 270 Mbit/s
    • Output Return Loss: > 15dB @ HD, > 12dB @ 3G
    • Output Impedance: 75 Ohms +/- 1%
    • Output Level: 800 mV P-P +/- 5%
    • Output Jitter: < 0.2 UI
  • SDI Standards:
    • SD Formats: 625i25 PAL and 525i29.97 NTSC
    • HD Formats: 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60
    • 3G Formats: 1080p50, 1080p59.94, 1080p60
    • 2K Formats: 2048 x 1556p23.98/24/25
    • Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601
    • Video Sampling: 4:2:2 and 4:4:4
    • Audio Sampling: 24 bit @ 48 KHz
    • Color Precision: 4:2:2 and 4:4:4 10 bit
    • Color Space: YUV or RGB
    • Metadata Support: Ancillary data as defined by SMPTE 352M
  • Reference Sync:
    • Connector Type: Analog BNC with pass-through
    • Format: Tri-Level Sync and NTSC/PAL Black Burst
