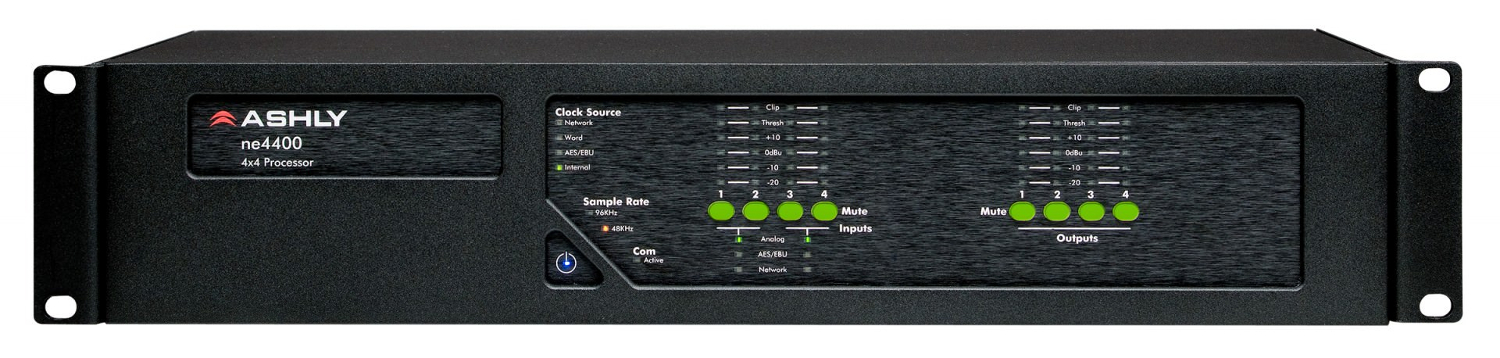

Ashly NE4400D
Networkable Protea DSP Processor, 4 x 4, with AES3 Inputs

OUR PART #:  NE4400D

Ashly NE4400D is a networkable Protea DSP processor 4 x 4 with AES3 inputs.
Learn More
Our Price: $1,890.00
List Price: $2,360.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ashly NE4400D
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Ashly NE4400D is a networkable Protea DSP processor 4 x 4 with AES3 inputs.

Complimentary to their amplifiers, the Network-Enabled DSP Processors offer easy setup and control using standard 10/100 Ethernet protocol and Protea™ ne Software. No special outboard control units are needed. Connecting and controlling an audio processor for networked systems is simplified with our ne Digital Signal Processors.

Standard units are analog line input/output format of ne4400 (4×4), ne4800 (4×8), and ne8800 (8×8) with four option bays supporting network audio, AES3, and mic input options. The DSP signal processing library is extensive and utilizes multiple SHARC 32-bit processors with sample rates of either 48KHz or 96KHz.

Processing blocks include either a 4×4, 4×8 or 8×8 matrix mixer, a full array of graphic, parametric and all pass equalization, crossover filters including 8th-order Butterworth, Bessel, Linkwitz-Riley and notched Linkwitz-Riley.

The Protea™ Software Suite also includes an extremely advanced automatic feedback suppressor, gain sharing automatic microphone mixing, ambient noise sensing and level adjustment, autolevelers, compressors, matrix duckers, limiters, frequency-keyed noise gates, signal delay up to 1,365ms on every channel and your choice of sinewave, pink or white noise generators.

All programming is accomplished using standard 10/100 Ethernet or RS-232 protocol and Protea ne Software on a PC platform. Hot-plug software control allows you to plug any function into any channel block even when running live audio with recompiling necessary. Automatic DHCP network IP configuration reduces network set up time. Multi-level software security with password access assures you a tamper-proof audio system.

Ashly NE4400D Features:

  • CobraNet®, Dante®, AES3, Mic Input options
  • 10/100 Ethernet and RS-232 computer interface standard
  • Extensive DSP available
  • Easy and intuitive user interface
  • 24-Bit A/D–D/A audio resolution
  • 32-Bit SHARC DSPs
  • Sample rates of 48kHz and 96KHz
  • Hot-plug software control
  • Automatic DHCP network IP configuration
  • Butterworth, Bessel, Linkwitz-Riley, and Notched-Linkwitz-Riley filters
  • FIR filter capability
  • Advanced automatic feedback suppression
  • Word Clock input and output
  • Euroblock connectors for audio, preset recall, DC remote level control and data in/out
  • Remote controls for level, logic I/O and programmable functions
  • Third-party control friendly, input and output metering, multi-level security
  • Safety/Compliance: cTUVus, CE, FCC, RoHS
