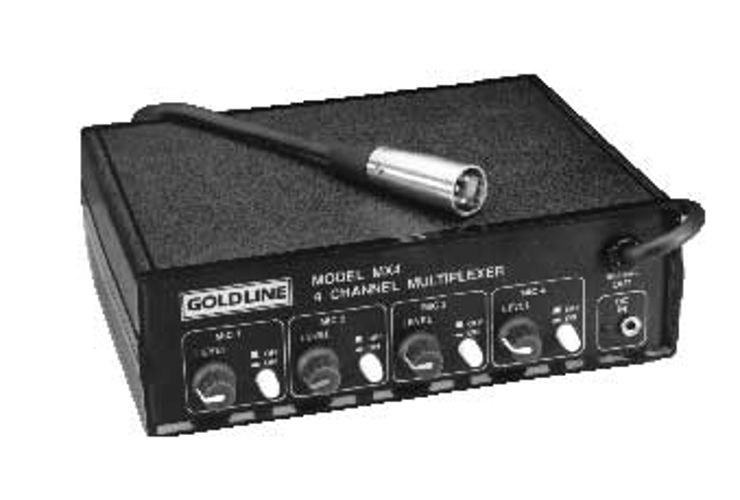

Goldline MX4310 [RESTOCK ITEM]
4-Channel Microphone Multiplexer (with 3 Mics)

OUR PART #:  MX4310-RST-01

Goldline's MX4 allows the user to enable single channels or any combination of channels...
Learn More
Sale Price: $955.08
List Price: $1,636.50
You save 42%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Goldline MX4310 [RESTOCK ITEM]
Qty:
In Stock

Similar Products

Goldline's MX4 allows the user to enable single channels or any combination of channels, allowing for comparison of individual microphone locations versus the spatially averaged data from multiple microphone tests. Each of the four channels has a gain control to allow the user to match the input level from different locations.

The multiplexer can be used with all Gold Line 1/3 octave Real Time Analyzers and with most other popular models. The MX4 comes with three Model TEF04 instrument microphones.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

Goldline MX4310 Features:

  • Expands the capability of single channel real-time analyzers
  • Averages up to four microphone positions
  • Allows spatial averaging
  • Analyzes overall response

Goldline MX4310 Specifications:

  • Inputs:
    • Channels: 4
    • Max. level: Mic. 117dBSPL
    • Typical input impedance: 1.2k ohms
    • Noise floor: 35dB SPL
    • CMRR:60Hz - 1kHz: 70dB / 20Hz - 20kHz: 65dB
    • Phantom power: each microphone input, 12Vdc, 1.2k ohm x 2
  • Outputs:
    • Channels: 1 (Active Balanced)
    • Maximum Level:+10dBu
    • Output Impedance: 180 ohms
  • Connectors: XLR, 3 pin plug, Pin 1 Shield, Pin 2 (+),Pin 3 (-)
  • Maximum Gain:
    • Microphone input: 7dB
    • Adjustment range per channel: ┬▒7dB
  • Frequency Response: 20Hz - 20kHz ┬▒1dB
  • Noise, 20Hz to 20kHz, Typical: Output noise all inputs off; -85dBu
  • Crosstalk, Typical: Adjacent inputs/outputs @ 1kHz;-88dB
  • Microphones: 3 Gold Line TEF04 omnidirectional electret condenser microphones
  • Power Requirements: 12Vdc @ 500mA; UL approved battery eliminator supplied.
  • Size (WxHxD): 7-7/8" x 2-5/8" x 7"
  • Weight: 2 lbs.
  • Case Material: High Impact ABS
