MIPRO ACT-32T
Miniature Bodypack Wireless Transmitter, 5NC Frequency Range

OUR PART #:  ACT32T-5NC

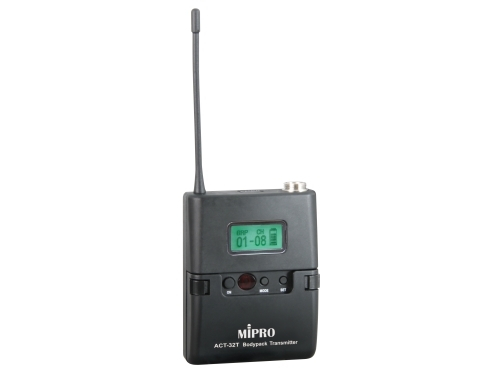

The MIPRO ACT-32T is a bodypack transmitter. This lightweight transmitter is compact in size and has a sturdy plastic housing.
Learn More
Our Price: $179.00
List Price: $229.00
You save 22%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

MIPRO ACT-32T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The MIPRO ACT-32T is a bodypack transmitter. This lightweight transmitter is compact in size and has a sturdy plastic housing. It features a mute switch, mini-XLR connector and antenna.

MIPRO ACT-32T Features:

  • Backlit LCD displays various parameters and status.
  • Innovatively designed battery cover allows easyaccess to operate buttons and prevents accidental operation.
  • Mute button with remote-control jack for easyactivation of mute function.
  • Stable PLL circuits. Automatically synchronized withthe receiver’s frequency by MIPRO’s patented ACT™ function.
  • Can directly match to high-low input impedance formicrophone or guitar without switching.
  • Mini-XLR input with secure screw lock connector forlavaliere / headworn mics and guitar.
  • Adjustable belt clip allows wearing transmitter in upor down position.
  • High-efficiency circuitry design provides 12~14 hours of operation from 2AA batteries (depending on the battery quality).

MIPRO ACT32T-5NC Specifications:

  • Frequency Range: UHF 480 – 934 MHz, 542 to 566 MHz
  • Bandwidth: 24 MHz
  • Oscillation Mode: PLL Synthesized
  • Channel Set-Up: ACT Sync
  • RF Output Power: 10 mW / 30 mW (switchable)
  • Deviation: < +/- 40 kHz
  • Spurious Emissions: </= -55 dBc
  • LCD Display: Group, Channel, Frequency, AF gain,Frequency band, RF power, Mute mode, Lock status, Battery status and errorcodes
  • Max. Input Level: 0 dBV
  • Mute Connector: Optional MJ-70 remote mute switch
  • Battery Type: 2 AA alkaline
  • Operating Time: Min. 12 hours
  • Current Consumption: High Power: approx. 161 mA ; LowPower: approx. 120 mA
  • Dimensions (W × H × D): 63 × 82 × 22 mm / 2.5 × 3.2 ×0.9 "
  • Net Weight Approx.: 83 g / 2.9 oz
