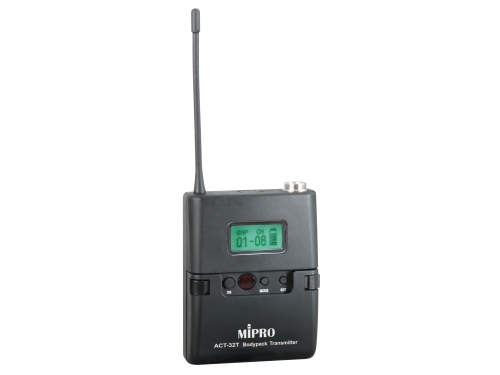

MIPRO ACT-32T
Miniature Bodypack Wireless Transmitter, 5A Frequency Range

OUR PART #:  ACT32T-5A

The MIPRO ACT-32T is a bodypack transmitter. This lightweight transmitter is compact in size and has a sturdy plastic housing.
Learn More
Our Price: $145.00
List Price: $165.00
You save 12%!
Write the first review.
MIPRO ACT-32T
Qty:
In Stock
Related Products

The MIPRO ACT-32T is a bodypack transmitter. This lightweight transmitter is compact in size and has a sturdy plastic housing. It features a mute switch, mini-XLR connector and antenna.

MIPRO ACT-32T Features:

  • Backlit LCD displays various parameters and status.
  • Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
  • Mute button with remote-control jack for easy activation of mute function.
  • Stable PLL circuits. Automatically synchronized with the receiver’s frequency by MIPRO’s patented ACT™ function.
  • Can directly match to high-low input impedance for microphone or guitar without switching.
  • Mini-XLR input with secure screw lock connector for lavaliere / headworn mics and guitar.
  • Adjustable belt clip allows wearing transmitter in upor down position.
  • High-efficiency circuitry design provides 12~14 hours of operation from 2AA batteries (depending on the battery quality).

MIPRO ACT32T-5A Specifications:

  • Frequency Range: UHF 480 – 934 MHz, 506 to 530 MHz
  • Bandwidth: 24 MHz
  • Oscillation Mode: PLL Synthesized
  • Channel Set-Up: ACT Sync
  • RF Output Power: 10 mW / 30 mW (switchable)
  • Deviation: < +/- 40 kHz
  • Spurious Emissions: </= -55 dBc
  • LCD Display: Group, Channel, Frequency, AF gain,Frequency band, RF power, Mute mode, Lock status, Battery status and errorcodes
  • Max. Input Level: 0 dBV
  • Mute Connector: Optional MJ-70 remote mute switch
  • Battery Type: 2 AA alkaline
  • Operating Time: Min. 12 hours
  • Current Consumption: High Power: approx. 161 mA ; LowPower: approx. 120 mA
  • Dimensions (W × H × D): 63 × 82 × 22 mm / 2.5 × 3.2 ×0.9 "
  • Net Weight Approx.: 83 g / 2.9 oz
