Product Overview

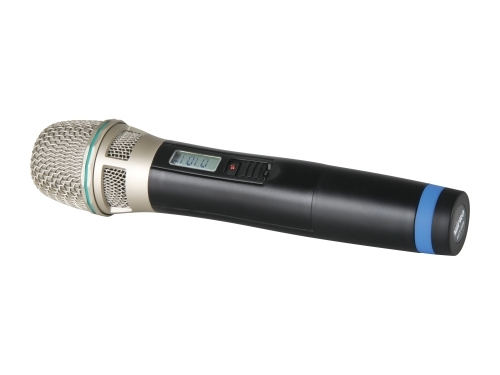

The MIPRO ACT-32H is a cardioid condenser handheld transmitter. This microphone features unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound. It also has a robust, lightweight plastic housing.
MIPRO ACT-32H Features:
- Interchangeable capsule module with premium condenseror dynamic options for easy and fast changeovers.
- Premium condenser capsules exhibit high fidelity,wide dynamic range, fast transient responses, good feedback rejection,accurate sound image characteristics, transparent sound quality and withstandmaximum SPL.
- Reversible end-cap allows power on/off switch beinglocked to avoid accidental power-off during performance.
- Impact-resistant battery compartment holds 2 AAbatteries.
- Backlit LCD displays various parameters and status.
- Stable PLL circuits. Automatically synchronized withthe receiver’s frequency by MIPRO’s patented ACT™ function.
- Patented “built-in” antenna design.
- Interchangeable colored rings for microphone channelidentification on stage.
- High-efficiency circuitry design provides more than 16 hours of operationfrom 2 AA batteries (depending on the battery quality).
MIPRO ACT-32H Specifications:
- Frequency Range: UHF 480 – 934 MHz, operates 506 - 530MHz
- Bandwidth: 24 MHz
- Oscillation Mode: PLL Synthesized
- Channel Set-Up: ACT Sync
- RF Output Power: 10mW / 30mW (switchable)
- Spurious Emissions: < -55 dBc
- LCD Display: Group, Channel, Battery status &error codes
- Max. SPL: 140 dB SPL
- Battery Type: 2 AA alkaline
- Operating Time: Min. 12 hours (Low Power)
- Current Consumption: Approx. 92 mA
- Dimensions (Ø × L): 51 × 234 mm / 2 × 9.2"
- Net Weight: Approx. 251 g / 8.9 oz
