Shure UA874V Active Directional Antenna, 174 - 216 MHz

OUR PART #: UA874V MFR #: UA874V

Copied to clipboard

The Shure UA874 is an active directional antenna with integrated amplifier for improved wireless signal reception. Experience improved wireless reception with the UA874. ...Read more

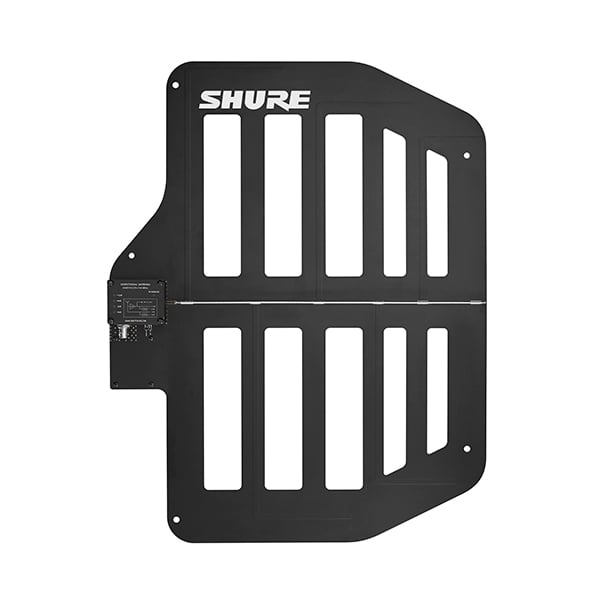

Shure UA874V Active Directional Antenna, 174 - 216 MHz Image 1
Shure UA874V Active Directional Antenna, 174 - 216 MHz
Our Price: $506.00
List Price: $708.00
You save 29%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$15/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Shure UA874 is an active directional antenna with integrated amplifier for improved wireless signal reception. Experience improved wireless reception with the UA874. This antenna uses a log periodic dipole array to produce a cardioid pattern toward the desired coverage area, achieving greater rejection of RF signals outside the area than standard ½ wave omnidirectional antennas.

An integrated amplifier with four gain settings compensates for varying degrees of coaxial cable signal loss.

The UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.

The Shure UA874V will work with ULXDVHF or QLXDVHF.

Features

  • Compatible with all Shure wireless receivers and antenna distribution systems that provide 12 V DC bias
  • Four-position gain selector switch
  • Low-noise signal amplifier that compensates for transmission loss in coaxial cable
  • Integrated threaded adapter that mounts easily to microphones stands
  • Legendary Shure build quality and reliability

Specifications

  • Connector Type: BNC, Female
  • Impedance: 50 Ω
  • Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mA
  • RF Frequency Range: 174–216 MHz
  • Reception Pattern: 3 dB Beam Width, 120 degrees
  • Third-order Overload Intercept Point (OIP3): >30 dBm
  • Antenna Gain: On Axis, 3dBi
  • Signal Gain, ±1 dB, Switchable: +12 dB +6 dB 0 dB −6 dB
  • RF Overload LED Threshold: −5 dBm (RF overload LED does not operate for passive gain settings)
  • Dimensions (H x W x D): 559 x 435 x 68 mm (22 x 17.1 x 2.7 in.)
  • Net Weight: 765 g (27.0 oz.)
  • Operating Temperature Range: −18°C (0°F) to 63°C (145°F)
  • Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
