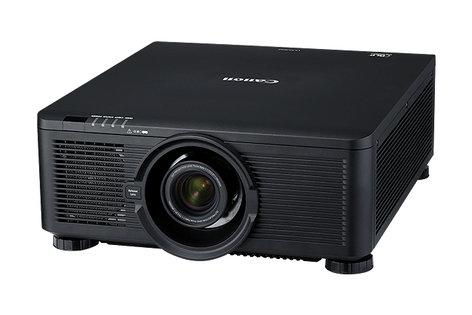

Canon LX-MU800Z
8000-Lumen WUXGA DLP Projector (No Lens Included)


The Canon LX-MU800Z brings the high performance, reliability and exceptionally long life of a laser light source to Canon’s LX-series.
Learn More

Call for price! Not available online.
List Price: $14,099.00

Related Products

The Canon LX-MU800Z brings the high performance, reliability and exceptionally long life of a laser light source to Canon’s LX-series. It delivers an outstanding 8000 lumens of brightness and up to 20,000 hours of continuous, virtually maintenance-free operation for large venues in higher education and corporate environments, houses of worship and digital signage applications – representing a lower total cost of ownership. Digital Light Processing (DLP) technology, WUXGA (1920 x 1200) high-resolution, and a high contrast ratio of up to 10,500:1 combine to help produce highly detailed images and accurate color over a large projection area.

NOTE: Lens is NOT Included

Canon LX-MU800Z Includes:

  • LX-MU800Z Pro AV Projector
  • Dust Cap
  • Power Cord
  • VGA to VGA Connection Cable (Mini Dsub15-Mini Dsub15)
  • Projector Remote Control LX-RC01 (includes two AA batteries)
  • Anti-Theft Screw For Lens (used to prevent mounted projection lens from being removed)
  • Important Information Guide (book)
  • User's Manual (CD-ROM)
  • Warranty Card

Canon LX-MU800Z Features:

  • Laser Light Source Provides Longevity while Reducing Total Cost of Ownership
  • 8000 Lumens with up to 10,500:1* Contrast Ratio
  • Native WUXGA Resolution (1920 x 1200)
  • DLP Technology
  • Seven Optional Interchangeable Lenses for Installation Flexibility
  • Installation Convenience including 360° Installation, Portrait Projection, Motorized Lens Shift, 4-Point Keystone Correction and Lens Position Memory
  • Multiple Professional Adjustments for Optimal Image Quality Reproduction
    Versatile Connectivity: HDBaseT™, 3G-SDI, HDMI, DVI-D, USB mini B, RJ-45, RS-232, 3D Sync Out
  • Network Management including PJLink™, Extron Connectivity, Crestron Connectivity and AMX Device Discovery
  • Backed by Canon's 3-Year Projector Limited Warranty, and 3-Year AdvancedWarranty Service Exchange Program and Service Loaner Program

Canon LX-MU800Z Specifications:

  • Projector Specifications:
    • Imaging Device: DMD x1
    • Aspect Ratio: 16:10
    • Native Resolution: 1920 x 1200 (WUXGA)
    • Brightness: 8000lm
    • Uniformity: 90%
    • Contrast Ratio: 1050:1/10,500:1 (Dynamic Black Off/On)
    • Digital Keystone: V±40°, H±60°
  • Image Adjustment:
    • Image Modes: Presentation, Standard, Video
    • Color Adjustment: n/a
    • Screen Color Correction: n/a
    • Mounting: 360°
    • Adjustable Feet: Front 2: Rear: 2
  • Image Signals:
    • Scanning Frequency: H: 15.62KHz ~ 91.15KHz, V: 24Hz ~ 85.06Hz
    • Analog Video Input: n/a
    • Component Input: 1080p/1080i/720p/576p/480p
    • Digital Video Input: 1080p/1080i/720p/576p/480p/576i/480i
    • Dot Clock: 157.5 MHz
  • Terminals:
    • Dsub15 (Computer-1): Analog PC / Component Video Input
    • 5BNC (Computer-2): Analog PC / Component Video Input
    • DVI-D: Digital PC / Digital Video Input\
    • HDMI: Digital PC / Digital Video Input
    • DisplayPort: n/a
    • RJ-45: HDbaseT Input / Network Connection (100BASE-TX / 10BASE-T)
    • Dsub15 (Monitor-out): Image Output
    • 5BNC (3G-SDI): 1x Input, 1x Output
    • Dsub9 (Control): RS-232 Connection
    • USB Mini B: n/a
    • 3D Sync Out: n/a
    • Mini Jack (Trigger): For Picture Control
    • Mini Jack (Remote): Wired Remote Control Connection
  • Lamp:
    • Type: Laser/Phosphor
    • Life: 20,000 hours
    • Power: n/a
  • Rating:
    • Fan Noise: 40/37dB
    • Power Consumption: 890/845W
    • Standby Power Consumption: 6.0/0.5W
    • Heat Dissipation: Up to 3,038 BTU/h
    • Power Voltage: AC 100 - 240V, 50/60Hz
    • Operating Temperature: 40°F - 104°F
    • Storage Temperature: n/a
    • Dimensions (WxDxH): 19.68" x 8.50" x 23.38"
    • Weight: 61.7lbs.
