EAW RSX12 12" Touring Subwoofer

OUR PART #: RSX12 MFR #: 2047584-90

Copied to clipboard

The EAW RSX12 is a 12" self-powered loudspeaker. ...Read more

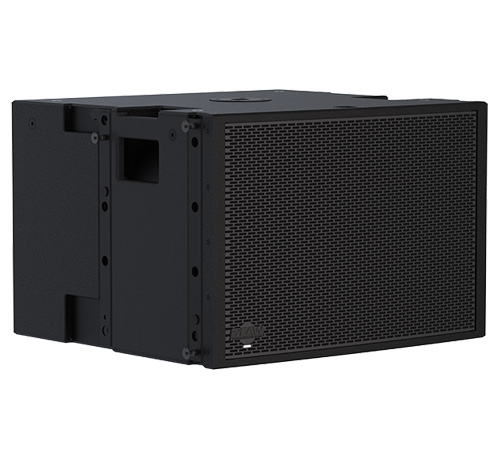

EAW RSX12 12" Touring Subwoofer Image 1
EAW RSX12 12" Touring Subwoofer Image 2
EAW RSX12 12" Touring Subwoofer Image 3
EAW RSX12 12" Touring Subwoofer
Our Price: $2,917.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$82/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The EAW RSX12 is a 12" self-powered loudspeaker. Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW’s signature acoustical design to deliver solutions for rental firms and system integrators. The RSX12 12” subwoofer is flyable and ultra-compact, ideal for installs or other applications with minimal floor space for subwoofers. The RSX12 features onboard electronics (1000W per channel) and ultra-wide ports that drastically reduce low-frequency turbulence. EAWmosaic™ app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application. With the proven sonic performance of EAW’s acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

EAW RSX12 Features:

  • Compact, flyable design ideal for installs with floor space constraints or specific aesthetic demands.
  • Extremely approachable EAWmosaic™ iOS app delivers system prediction, control and monitoring from any location in the venue.
  • Proven EAW acoustical design and DSP including Focusing™ and DynO™ provides a pristine impulse response at all output levels.
  • Integrated Dante™ networking (with loop-thru) on all models includingAnalog redundancy capability.

EAW RSX12 Specifications:

  • Configuration:
    • Subsystem:
      • Transducer: 1 x 12 in cone, 3 in voice coil.
      • Loading: LF – Vented
    • Operating Mode:
    • Amplifier Channels: Single-amp LF
    • Signal Processing: DSP w/ Dyn0
  • Performance:
    • Operating Range: 40 Hz to 300 Hz
    • Nominal Beamwidth:
      • Horizontal 360°
      • Vertical 360°
    • Calculated Axial Output Limit (whole space SPL):
      • Average: 118 dB (whole space), 124 dB (half space)
      • Peak: 124 dB (whole space), 130 dB (half space)
    • Input:
      • Type: Electronically balanced
      • Max Input Level: 21dBu
      • Impedance: 20 kOhm (balanced)
      • Input Wiring: XLRF, Pin 1 chassis, pin 2 +, pin 3 – separate loop-thru XLRM (for analog signal only)
      • Input Selection: Analog, Dante
    • Amplifiers & Processing (LF):
      • Type: Modified Class D
      • Maximum Output: 1000W
      • Driver Protection: Integral DSP limiting
    • AM Mains (nominal):
      • Connector: Neutrik PowerCon®
      • Input: 100 V to 240 V
      • Frequency: 50 Hz to 60 Hz
      • Power Consumption:
      • Idle – 50W
      • Peak Draw – 1000 W
    • Controls/Communication:
    • Connections: 2x Neutrik® etherCON™, RJ-45
    • Protocols: Ethernet/Dante
    • Software: EAWmosaic™
    • Indicators: LCD Screen on amplifier panel for UI, Logo LED (User-definable behavior)
    • User Controls: Push-button Rotary Encoder
