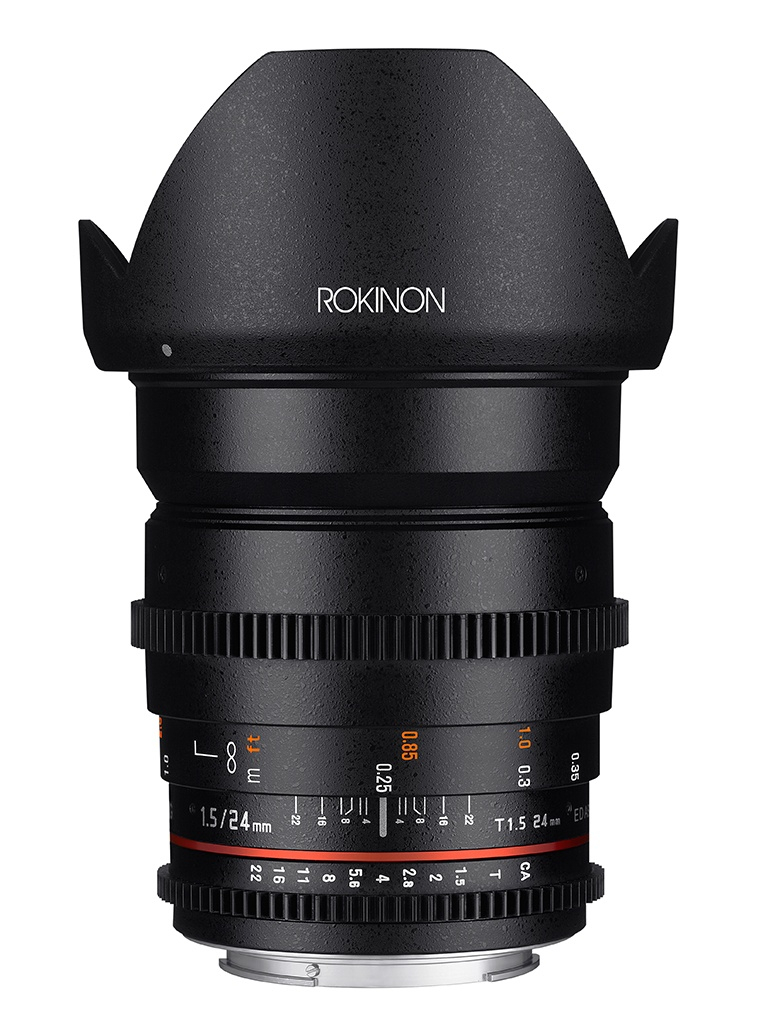

Rokinon 24mm T1.5
Full Frame Wide Angle Cine DS Lens

OUR PART #  DS24M

Selected Model Price: $799.00
List Price: $899.00

Save up to 11%!
Select model: (shipping times are approximate)

Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon® 24mm T1.5 Cine DS Lens answers the challenge of assembling a set of lenses over time. This model is available in two versions - DS24M-C (Canon EF mount) and DS24M-MFT (Micro 4/3 mount.)

This Cine DS lens features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

This 24mm lens produces a 84.1° coverage when used with full frame cameras. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of just under 10" from the lens. A removable petal shaped lens hood provides flare protection when shooting without a matte box, the lenses threaded front accepts a 77mm filter ring.

NOTE: Some cameras may require that Shutter Lock be disengaged when using this lens.

Rokinon 24mm T1.5 Lens Features:

  • 24mm lens with approximate angle of view of:
    • Full-Frame: 84.1°
    • APS-C: 57.6°
  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • "De-clicked" aperture ring for smooth iris pulls.
  • A minimum focusing distance of 9.8" allows you to get up close to your subject.
  • A removable petal-type lens hood provides flare protection without a mattebox.

Rokinon 24mm T1.5 Lens Specifications:

  • Models:
    • Canon EF Mount: DS24M-C
    • Micro 4/3 Mount: DS24M-MFT
  • Focal Length: 24mm
  • Maximum Aperture: T1.5
  • Coverage: Full Frame (FX)
  • Optical Construction: 13 Glass Elements In 12 Groups
  • Aperture Range: T1.5 to T22
  • Diaphragm Blades: 8
  • Coating: Ultra Multi-Coating
  • Minimum Focusing Distance: 9.8 ” (0.25m)
  • Filter Size: 77mm
  • Lens Hood: Removable Petal Shaped
  • Maximum Diameter: 3.27”(83mm)
  • Dimensions:
    • Canon:
      • Weight: 21.7oz (615g)
      • Length: 3.84” (97.5mm)
    • Micro 4/3:
      • Weight: 22.4oz (635g)
      • Length: 4.82” (122.3mm)



Rokinon 24mm T1.5
Full Frame Wide Angle Cine DS Lens

OUR PART #  DS24M

Product Information:

Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon® 24mm T1.5 Cine DS Lens answers the challenge of assembling a set of lenses over time. This model is available in two versions - DS24M-C (Canon EF mount) and DS24M-MFT (Micro 4/3 mount.)

This Cine DS lens features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

This 24mm lens produces a 84.1° coverage when used with full frame cameras. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of just under 10" from the lens. A removable petal shaped lens hood provides flare protection when shooting without a matte box, the lenses threaded front accepts a 77mm filter ring.

NOTE: Some cameras may require that Shutter Lock be disengaged when using this lens.

Rokinon 24mm T1.5 Lens Features:

  • 24mm lens with approximate angle of view of:
    • Full-Frame: 84.1°
    • APS-C: 57.6°
  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • "De-clicked" aperture ring for smooth iris pulls.
  • A minimum focusing distance of 9.8" allows you to get up close to your subject.
  • A removable petal-type lens hood provides flare protection without a mattebox.

Rokinon 24mm T1.5 Lens Specifications:

  • Models:
    • Canon EF Mount: DS24M-C
    • Micro 4/3 Mount: DS24M-MFT
  • Focal Length: 24mm
  • Maximum Aperture: T1.5
  • Coverage: Full Frame (FX)
  • Optical Construction: 13 Glass Elements In 12 Groups
  • Aperture Range: T1.5 to T22
  • Diaphragm Blades: 8
  • Coating: Ultra Multi-Coating
  • Minimum Focusing Distance: 9.8 ” (0.25m)
  • Filter Size: 77mm
  • Lens Hood: Removable Petal Shaped
  • Maximum Diameter: 3.27”(83mm)
  • Dimensions:
    • Canon:
      • Weight: 21.7oz (615g)
      • Length: 3.84” (97.5mm)
    • Micro 4/3:
      • Weight: 22.4oz (635g)
      • Length: 4.82” (122.3mm)
