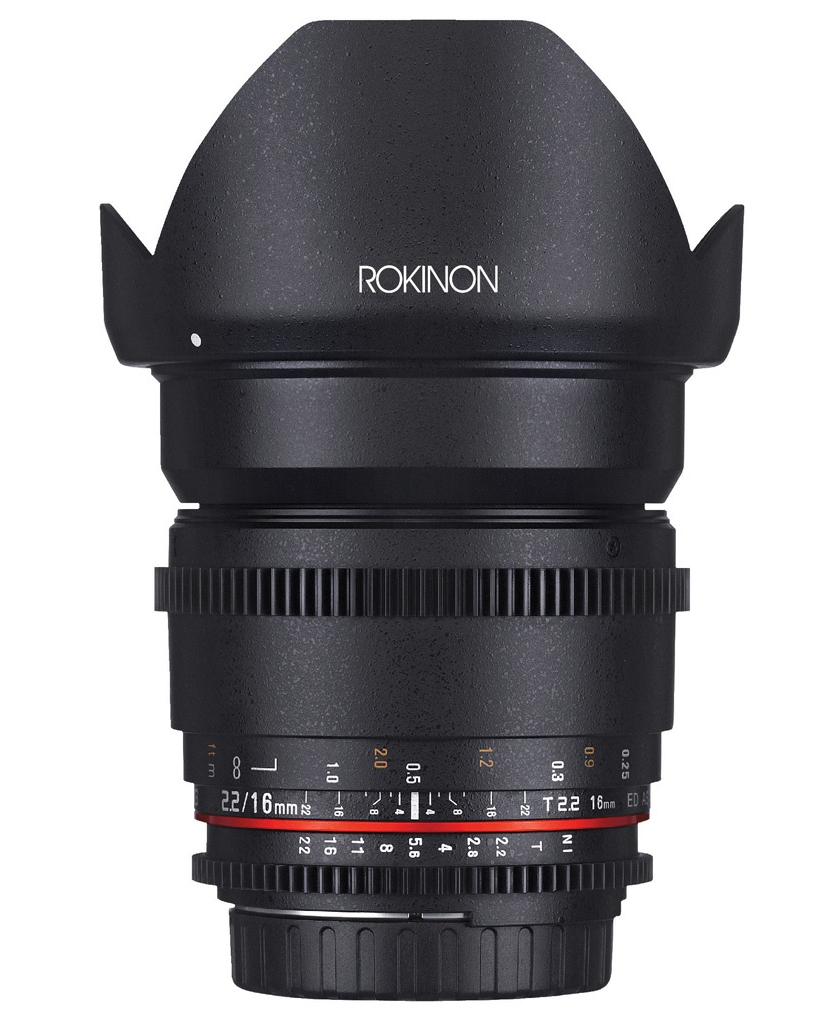

Rokinon 16mm T2.2
High Speed Wide Angle Cine DS Lens

OUR PART #  DS16M

Selected Model Price: $549.00
List Price: $599.00

Save up to 8%!
Select model: (shipping times are approximate)

The Rokinon® 16mm T2.2 Cine Lens is a wide-angle lens optimized for digital cinematography and produces an image circle that will cover APS-C sized sensors or smaller. This lens is available in two models - DS16M-C (for Canon EF mounts) and the DS16M-MFT (for Micro 4/3 mounts.)

The focus and aperture rings feature industry-standard 0.8 pitch gearing for attaching a follow focus unit. The aperture ring is also de-clicked to allow for smooth iris pulls while shooting. Focus, aperture, and depth of field markings are on the side of the lens to aid focus pullers, who typically operates on the side of the camera.

This 16mm T2.2 Cine DS lens is constructed out of 13 individual elements in 11 groups, including one aspherical and one hybrid aspherical element. Aspherical elements help minimize unwanted distortion and chromatic aberrations. The lens also has a multi-layer coating to reduce flares and maintain image contrast in bright conditions.

With an angle of view of 79.5°, this Rokinon lens is well-suited for shooting landscapes, architecture, and for use in tight interior locations. A maximum aperture of T2.2 means that the lens is effective in low-light shooting and can produce a shallow depth of field when the lens is closer to the subject. The lens has a minimum focus distance of 7.87". A bayonet-mount lens hood and lens pouch come included with the lens.

Rokinon 16mm T2.2 Lens Features:

  • 16mm lens with 79.5° angle-of-view
  • Image Circle covers APS-C sized sensors
  • Industry Standard 0.8 pitch gearing on Focus and Iris rings
  • De-clicked aperture for smooth focus pulls
  • 13 elements in 11 groups with an aspherical and a hybrid aspherical lens element
  • Ultra Multi Coating on lens minimizes flares and ghosting
  • Depth of Field markings on side of the lens
  • A minimum focusing distance of 7.87 inches
  • Includes bayonet mount lens hood

Rokinon 16mm T2.2 Lens Specifications:

  • Mounts:
    • DS16M-C (Canon EF mounts)
    • DS16M-MFT (Micro 4/3 mounts)
  • Focal Length: 16mm
  • Maximum Aperture: T2.2
  • Coverage: APS-C/Four Thirds
  • Optical Construction: 13 Glass Elements In 11 Groups
  • Aperture Range: T2.2 to T22
  • Diaphragm Blades: 8
  • Coating: Ultra Multi-Coating
  • Minimum Focusing Distance: 7.9”(0.20m)
  • Filter Size: 77mm
  • Lens Hood: Removable Petal Shaped
  • Maximum Diameter: 3.27” (83mm)
  • Dimensions:
    • Canon:
      • Weight: 20.8oz (590g)
      • Length: 3.52” (89.4mm)
    • Micro 4/3:
      • Weight: 21.9oz (620g)
      • Length: 4.49” (114.2mm)


Rokinon 16mm T2.2
High Speed Wide Angle Cine DS Lens

OUR PART #  DS16M

Product Information:

The Rokinon® 16mm T2.2 Cine Lens is a wide-angle lens optimized for digital cinematography and produces an image circle that will cover APS-C sized sensors or smaller. This lens is available in two models - DS16M-C (for Canon EF mounts) and the DS16M-MFT (for Micro 4/3 mounts.)

The focus and aperture rings feature industry-standard 0.8 pitch gearing for attaching a follow focus unit. The aperture ring is also de-clicked to allow for smooth iris pulls while shooting. Focus, aperture, and depth of field markings are on the side of the lens to aid focus pullers, who typically operates on the side of the camera.

This 16mm T2.2 Cine DS lens is constructed out of 13 individual elements in 11 groups, including one aspherical and one hybrid aspherical element. Aspherical elements help minimize unwanted distortion and chromatic aberrations. The lens also has a multi-layer coating to reduce flares and maintain image contrast in bright conditions.

With an angle of view of 79.5°, this Rokinon lens is well-suited for shooting landscapes, architecture, and for use in tight interior locations. A maximum aperture of T2.2 means that the lens is effective in low-light shooting and can produce a shallow depth of field when the lens is closer to the subject. The lens has a minimum focus distance of 7.87". A bayonet-mount lens hood and lens pouch come included with the lens.

Rokinon 16mm T2.2 Lens Features:

  • 16mm lens with 79.5° angle-of-view
  • Image Circle covers APS-C sized sensors
  • Industry Standard 0.8 pitch gearing on Focus and Iris rings
  • De-clicked aperture for smooth focus pulls
  • 13 elements in 11 groups with an aspherical and a hybrid aspherical lens element
  • Ultra Multi Coating on lens minimizes flares and ghosting
  • Depth of Field markings on side of the lens
  • A minimum focusing distance of 7.87 inches
  • Includes bayonet mount lens hood

Rokinon 16mm T2.2 Lens Specifications:

  • Mounts:
    • DS16M-C (Canon EF mounts)
    • DS16M-MFT (Micro 4/3 mounts)
  • Focal Length: 16mm
  • Maximum Aperture: T2.2
  • Coverage: APS-C/Four Thirds
  • Optical Construction: 13 Glass Elements In 11 Groups
  • Aperture Range: T2.2 to T22
  • Diaphragm Blades: 8
  • Coating: Ultra Multi-Coating
  • Minimum Focusing Distance: 7.9”(0.20m)
  • Filter Size: 77mm
  • Lens Hood: Removable Petal Shaped
  • Maximum Diameter: 3.27” (83mm)
  • Dimensions:
    • Canon:
      • Weight: 20.8oz (590g)
      • Length: 3.52” (89.4mm)
    • Micro 4/3:
      • Weight: 21.9oz (620g)
      • Length: 4.49” (114.2mm)
