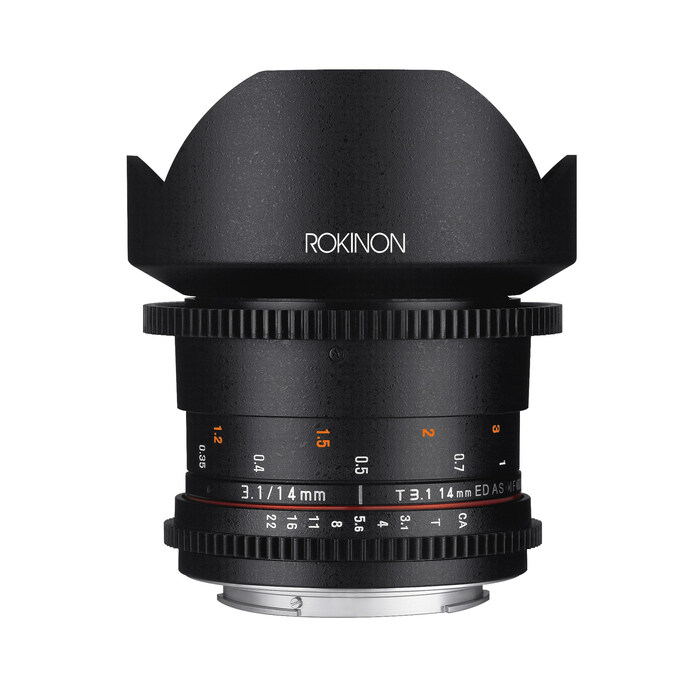

Rokinon 14mm T3.1
Cine ED AS IF UMC Lens

OUR PART #  DS14M

Selected Model Price: $499.00
List Price: $599.00

Save up to 17%!
Select model: (shipping times are approximate)

Developed primarily for film and video applications, the Rokinon 14mm T3.1 Cine ED AS IF UMC Lens is the cine version of Rokinon's 14mm lens, and features industry-standard gearing for the focus and aperture ring, and de-clicked aperture ring for smooth iris pulls. Also, the aperture and focus scales have been relocated to the side of the lens, where it's easier for focus pullers to read them.

This lens is compatible with full-frame sensors and can also be used on APS-C-sized sensors, where the 35mm-equivalent focal length will be 22.4mm. Its optical construction incorporates three (3) high-refractive index elements, two (2) extra-low dispersion elements, one (1) hybrid aspherical element, and one (1) aspherical element to reduce chromatic aberration and distortion, producing sharper imagery. Additionally, a UMC coating has been applied to lens elements, minimizing lens flare and ghosting, offering more contrast-rich images.

Rokinon 14mm T3.1 Cine ED AS IF UMC Lens Features:

  • Fast T3.1 maximum aperture benefits working in low-light conditions.
  • Three (3) high refractive index elements, two (2) extra-low dispersion elements, one (1) hybrid aspherical element, and one (1) aspherical element reduce chromatic aberrations in order to produce greater sharpness and clarity.
  • UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
  • Geared aperture and focus rings are compatible with standard follow focuses for greater control over adjustment.
  • De-clicked aperture ring facilitates smooth, quiet exposure adjustments during recording.

Rokinon 14mm T3.1 Cine ED AS IF UMC Lens Specifications:

  • Camera Mount:
    • DS14M-C: Canon
    • DS14M-MFT: Micro 4/3
  • Focal Length: 14mm
  • Maximum Aperture: T3.1
  • Coverage: Full Frame (FX)
  • Optical Construction: 14 Glass Elements In 10 Groups
  • Aperture Range: T3.1 to T22
  • Diaphragm Blades: 6
  • Coating: Ultra Multi-Coating
  • Minimum Focusing Distance: 11" (0.28m)
  • Filter Size: n/a
  • Lens Hood: Built-in Petal Shaped
  • Maximum Diameter: 3.4" (87mm)
  • Weight:
    • DS14M-C: 21.9oz (620g)
    • DS14M-MFT: 22.9oz (650g)
  • Length:
    • DS14M-C: 3.78" (96.1mm)
    • DS14M-MFT: 4.76" (120.9mm)
  • Lens Structure Detail:

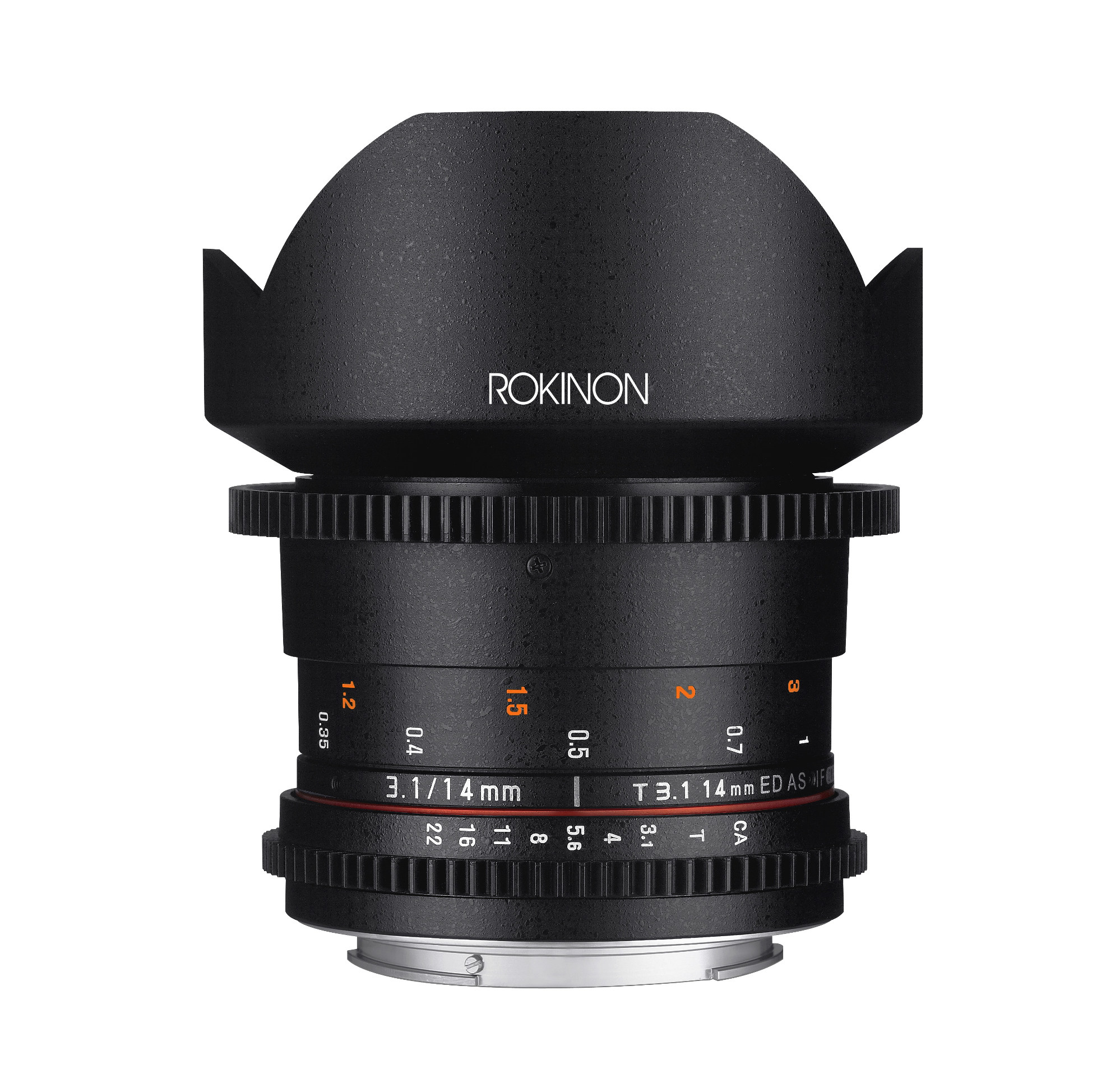

Rokinon 14mm T3.1
Cine ED AS IF UMC Lens

OUR PART #  DS14M

Product Information:

Developed primarily for film and video applications, the Rokinon 14mm T3.1 Cine ED AS IF UMC Lens is the cine version of Rokinon's 14mm lens, and features industry-standard gearing for the focus and aperture ring, and de-clicked aperture ring for smooth iris pulls. Also, the aperture and focus scales have been relocated to the side of the lens, where it's easier for focus pullers to read them.

This lens is compatible with full-frame sensors and can also be used on APS-C-sized sensors, where the 35mm-equivalent focal length will be 22.4mm. Its optical construction incorporates three (3) high-refractive index elements, two (2) extra-low dispersion elements, one (1) hybrid aspherical element, and one (1) aspherical element to reduce chromatic aberration and distortion, producing sharper imagery. Additionally, a UMC coating has been applied to lens elements, minimizing lens flare and ghosting, offering more contrast-rich images.

Rokinon 14mm T3.1 Cine ED AS IF UMC Lens Features:

  • Fast T3.1 maximum aperture benefits working in low-light conditions.
  • Three (3) high refractive index elements, two (2) extra-low dispersion elements, one (1) hybrid aspherical element, and one (1) aspherical element reduce chromatic aberrations in order to produce greater sharpness and clarity.
  • UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
  • Geared aperture and focus rings are compatible with standard follow focuses for greater control over adjustment.
  • De-clicked aperture ring facilitates smooth, quiet exposure adjustments during recording.

Rokinon 14mm T3.1 Cine ED AS IF UMC Lens Specifications:

  • Camera Mount:
    • DS14M-C: Canon
    • DS14M-MFT: Micro 4/3
  • Focal Length: 14mm
  • Maximum Aperture: T3.1
  • Coverage: Full Frame (FX)
  • Optical Construction: 14 Glass Elements In 10 Groups
  • Aperture Range: T3.1 to T22
  • Diaphragm Blades: 6
  • Coating: Ultra Multi-Coating
  • Minimum Focusing Distance: 11" (0.28m)
  • Filter Size: n/a
  • Lens Hood: Built-in Petal Shaped
  • Maximum Diameter: 3.4" (87mm)
  • Weight:
    • DS14M-C: 21.9oz (620g)
    • DS14M-MFT: 22.9oz (650g)
  • Length:
    • DS14M-C: 3.78" (96.1mm)
    • DS14M-MFT: 4.76" (120.9mm)
  • Lens Structure Detail:
