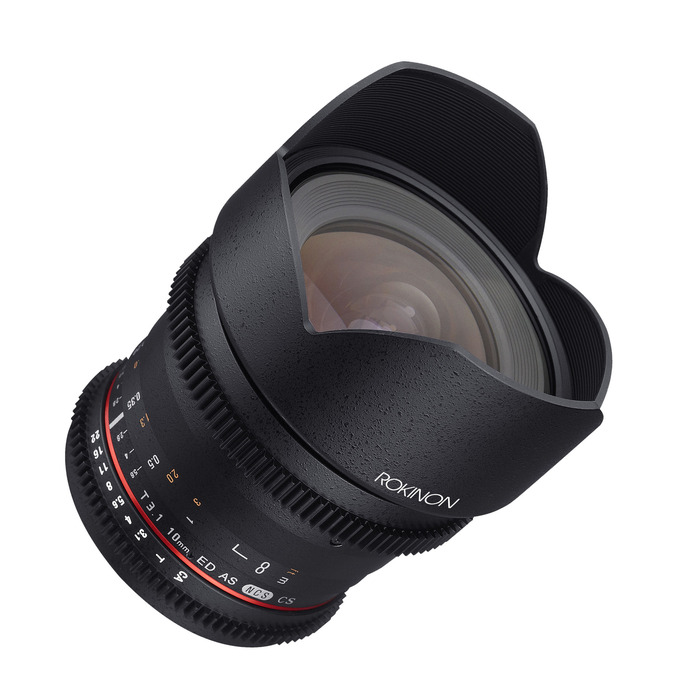

Rokinon DS10M 10mm T3.1 Cine DS Ultra Wide Angle Lens

A wide-angle lens optimized for digital cinematography, the Rokinon 10mm T3.1 Cine Lens, part of their Cine DS series of lenses, produces an image circle that will cover APS-C sized sensors or smaller. Its focus and aperture rings feature industry-standard 0.8 pitch gearing, providing for use with a follow focus unit. Also, the aperture ring is de-clicked, allowing for smooth iris pulls while shooting. Focus, aperture, and depth of field markings are included on the side of the lens to aid focus pullers who typically operate on the side of the camera.

With a 109.5° angle of view, this lens is well-suited for shooting landscapes and architecture, as well as tight interior locations. One (1) extra-low dispersion element (ED) and two (2) aspherical elements have been integrated into the optical design to minimize chromatic aberrations and distortion, helping produce sharper images. Additionally, a Nano Coating System (NCS) has been added to the lens elements in order to reduce surface reflections along with preventing lens flare and ghosting, thus improving light transmission and delivering more contrast-rich imagery.

Rokinon 10mm T3.1 Cine Lens Features:

• 10mm lens with 109.5° angle-of-view
• Aperture Range: T3.1 to T22
• Image Circle covers APS-C sized sensors
• Industry Standard 0.8 pitch gearing on focus and aperture rings
• De-clicked aperture for smooth focus pulls
• 14 elements in 9 groups, including one ED and two aspherical elements
• Nano Coating System improves light transmission, minimizes flares and ghosting for higher contrast images
• Depth of Field markings on side of the lens
• A minimum focusing distance of 9.45"
• Integrated lens hood (not removable)

Rokinon 10mm T3.1 Cine Lens Features:

• Camera Mount:
  • DS10M-C: Canon EF Mount
  • DS10M-MFT: Micro Four Thirds
• Focal Length: 10mm
• Maximum Aperture: T3.1
• Coverage: APS-C/Four Thirds
• Optical Construction: 14 Glass Elements In 9 Groups
• Aperture Range: T3.1 to T22
• Diaphragm Blades: 6
• Coating: Nano Coating System
• Minimum Focusing Distance: 9.45" (0.24m)
• Filter Size: n/a
• Lens Hood: Built-in Petal Shaped
• Maximum Diameter: 3.43" (87mm)
• Length:
  • DS10M-C: 4.18" (106.1mm)
  • DS10M-MFT: 5.15" (130.9mm)
• Weight:
  • DS10M-C: 21.2 oz (600g)
  • DS10M-MFT: 22.2 oz (630g)
• Lens Structure Detail:
