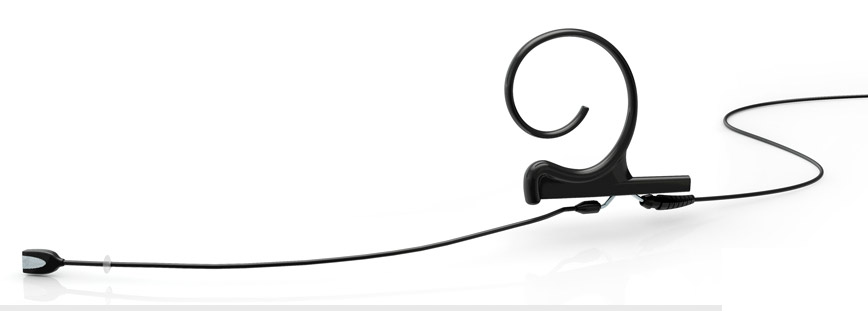

DPA Microphones FIOBA34-M [RESTOCK ITEM]
d:fine™ Omnidirectional Headset with Single Ear Medium Boom and 3.5mm Locking Connector for Sennheiser in Black

OUR PART #:  FIOBA34-M-RST-01

The DPA Microphones FIOBA34-M is a single-ear, 3.5" medium boom, omnidirectional headset microphone with 3.5mm Locking Connector for Sennheiser wirless bodypacks.
Learn More
Sale Price: $580.38
List Price: $699.95
You save 17%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones FIOBA34-M [RESTOCK ITEM]
Qty:
In Stock

Similar Products

The DPA Microphones FIOBA34-M is a single-ear, 3.5" medium boom, omnidirectional headset microphone with 3.5mm Locking Connector for Sennheiser wirless bodypacks.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

d:fine™ has been ergonomically designed to fit easily and seamlessly. It will adjust to fit any ear size and head shape while mounting securely and hardly visible on both ears. The dual-ear mount is dedicated for more active situations and will be safe in even the most rigorous and energetic performance applications. Just by rotating the boom and the earhooks, the microphone can be moved from left to right ear, or into the optimum position.

The d:fine™ omni is sensitive to sound from all directions making the positioning of the headset less critical and can be done by untrained personnel. It is truly a plug-and-play solution for any situation. The microphone boom is available in two lengths, the shorter one to keep out of sight and for handling extreme loud voices.

Staying true to the DPA legacy, d:fine offers accurate, natural voice intelligibility and very high SPL capabilities – users can both speak and sing into the mic with no hint of distortion.

DPA Microphones FIOBA34-M Includes:

  • Make-up and moisture filter pre-mounted on the mic
  • Cable clip which anchors the cable to your clothing
  • Five color coded identification rings
  • Make-up cover/ capsule protection cap
  • Three windscreens

DPA Microphones FIOBA34-M Features:

  • Pristine audio quality
  • Easy single-ear or dual-ear mounting
  • Minimal visual impact
  • Adapts to all pro wireless systems

DPA Microphones FIOBA34-M Specifications:

  • Directional characteristics: Omnidirectional
  • Principle of operation: Pressure or pressure gradient
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 20 Hz - 20 kHz
  • Frequency range, ± 2 dB: Omni: 20 Hz - 20 kHz with 3 dB soft boostat 8 - 15 kHz. Directional: 100 Hz - 20 kHz with 3 dB soft boost at 8 - 20kHz.
  • Sensitivity, nominal, ± 3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Omni: Typ. 26 dB(A) re. 20 µPa(max. 28 dB(A)). Directional: Typ. 28 dB(A) re. 20 µPa (max. 30 dB(A)).
  • Equivalent noise level, ITU-R BS.468-4: Omni: Typ. 38 dB (max. 40dB). Directional: Typ. 40 dB (max. 42 dB).
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Omni: Typ. 68dB(A). Directional: Typ. 66 dB(A).
  • Total Harmonic Distortion (THD): <1 % up to 123 dB SPL peak;<1 % up to 120 dB SPL RMS sine
  • Dynamic range: Omni: Typ. 97 dB. Directional: Typ. 95 dB.
  • Max. SPL, peak before clipping: 144 dB
  • Output impedance: From MicroDot: 30 - 40 ohm. From DAD6001-BC: 100ohm.
  • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter
  • Output balance principle: Signal balanced with DAD6001-BC XLR adapter
  • Common Mode Rejection Ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter
  • Power supply (for full performance): Min. 5 V to max. 50 V through DPA adapter for wireless systems. 48 V phantom power ± 4 V with DAD6001-BC XLR adapter.
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR adapter.
  • Connector: MicroDot
  • Color: Black
  • Weight:  Microphone boom: 0.8 g (0.03 oz); earhook: 1.1 g (0.04 oz); cable: 6.6 g (0.23 oz). Total: 8.5 g (0.30 oz).
  • Microphone head size (HxWxD): 0.37" x 0.21" x 0.11" (9.5 x 5.3 x 2.9 mm)
  • Capsule diameter: 0.2" (5.4 mm)
  • Mic boom lengths: 3.5" (90mm )
  • Cable length: 4.3 ft (1.3 m)
  • Cable color: Black
  • Cable diameter: 0.06" (1.6 mm)
  • Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)
  • Electro Magnetic Compatibility (EMC): Fully compatible
  • Temperature range: -40 °F to 113 °F (-40 °C to 45 °C)
  • Relative Humidity (RH): Up to 90%
