AMX NMX-ENC-N1122-C SVSI Minimal Proprietary Compression Video Over IP Encoder Card

OUR PART #: FGN1122-CD MFR #: FGN1122A-CD

Copied to clipboard

The AMX FGN1122-CD provides users with two RJ45 network ports (one POE). All MPC N1000 series includes output scaling, serial, balanced audio, and HDMI video connection. ...Read more

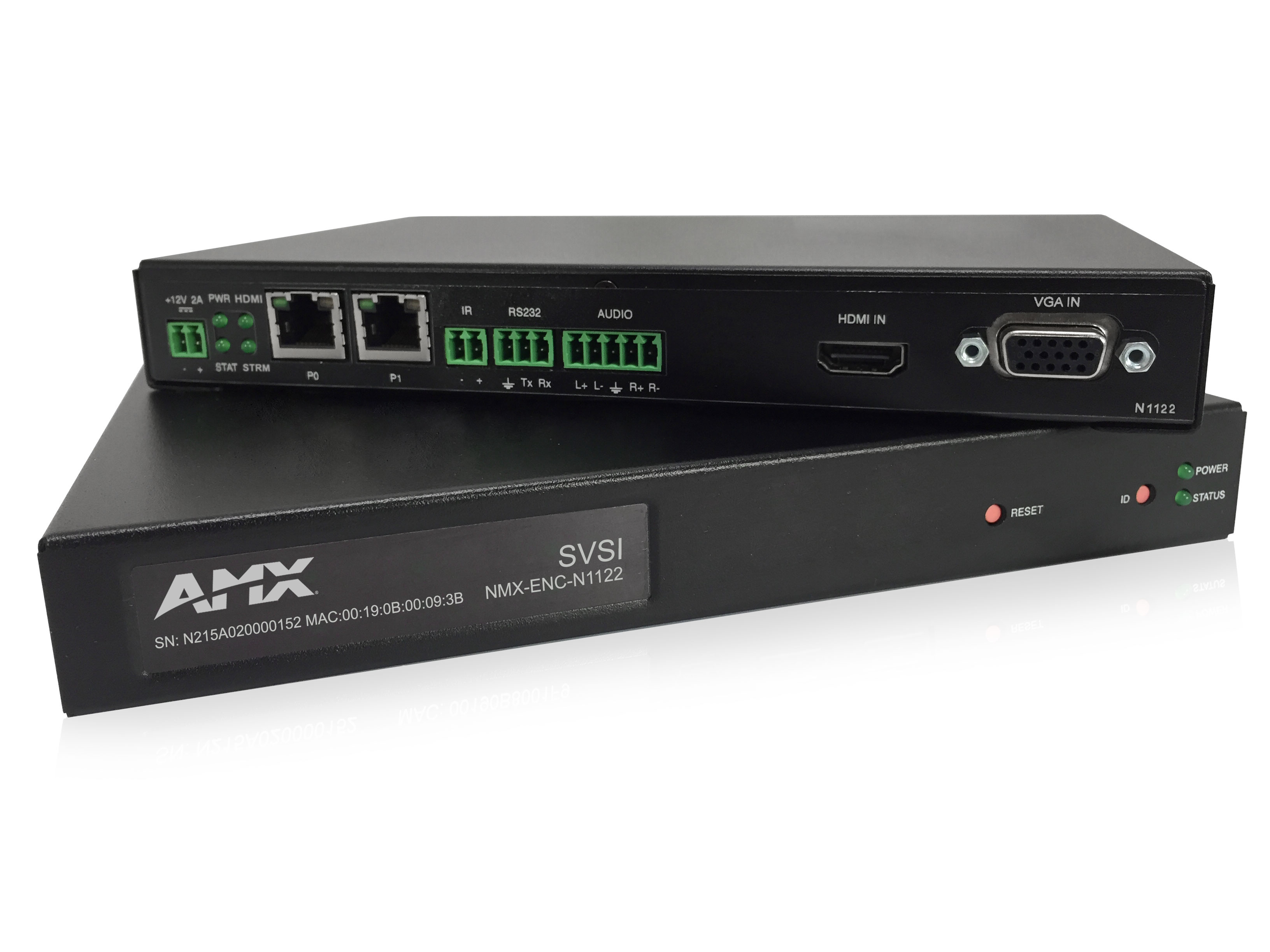

AMX NMX-ENC-N1122-C SVSI Minimal Proprietary Compression Video Over IP Encoder Card Image 1
AMX NMX-ENC-N1122-C SVSI Minimal Proprietary Compression Video Over IP Encoder Card
Our Price: $1,506.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$42/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 19-21 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The AMX FGN1122-CD provides users with two RJ45 network ports (one POE). All MPC N1000 series includes output scaling, serial, balanced audio, and HDMI video connection. The N1000 Series is the perfect solution for in-room or small video matrices under 32×32 in size.

The N1000 Series Encoders and Decoders are an affordable local AV over IP switching solution that packetizes video into a minimally compressed IP format to create anywhere from a small 2×1 seamless presentation switcher up to a large 32×32 matrix switcher using off-the-shelf layer-3 network switches.

The ability to send IP Media for distribution using common managed network switches in any size and configuration makes N1000 solutions extremely flexible and easy to deploy.

Applications:

The NMX-ENC-N1122 is the perfect solution for any low-latency application and video matrix smaller than 32x32. Common applications include classrooms, conference rooms, performing arts, and sports bars.

AMX FGN1122-CD Features:

  • Output Scaling – Video scaling at output allows seamless switching from any source, at any resolution, to any display or projector, while preserving video fidelity
  • 1 Frame Latency – Same as HDBaseT
  • Minimal Proprietary Compression (MPC) – Visually lossless MPC algorithm
  • Power Over Ethernet (PoE) – PoE eliminates the need for power supply
  • Infrared (IR) – Infrared emitter connection allows control of low-cost, IR-only display devices
  • Onboard Control – All N-Series encoders and decoders have on-board, built-in control capability via events that can trigger any number of TCP/UDP commands to other IP controllable devices
  • Unmatched Flexibility – Highly competitive pricing for matrices up to 32x32
  • Separate Inputs – Separate HDMI and VGA input connectors on the encoder
  • Two RJ45 Ports – Encoder features two RJ45 network ports (one PoE)
  • Stand Alone or Card – Available as a stand alone device, or card for use with NMX-ACC-N9206

AMX FGN1122-CD Specifications:

  • Video:
    • Digital Video Input: HDMI, DVI-D (through adapter), RGB/VGA
    • Analog Video Input:
      • HD-15 VGA, Component
      • Component is supported through a passive adapter
    • Video Output: Network video over Ethernet via RJ45 port
    • Formats:
      • HDMI, DVI-D (through adapter), Dual-Mode DisplayPort (DP++), HDCP content protection support, RGBHV, YPbPr
      • DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter
    • Progressive Input Resolutions: Supports most common HD up to 1920x1200
    • Interlaced Input Resolutions: Supports 1080i60
    • Analog Input Resolutions: Supports most common HD up to 1920x1200
    • Analog-To-Digital Conversion: 8-bit 165 MHz per each of three color channels
  • Audio:
    • Input Signal Types: Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced)
    • Output Signal Types: Ethernet
    • HDMI Audio Formats: 8ch PCM
    • Analog Audio Formats: Stereo 2-channel
    • Analog-To-Digital Conversion: 16-bit 32 kHz, 44.1 kHz and 48 kHz
  • Latency: 10 ms at 60 fps
  • Communications:
    • Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP
    • HDMI: HDCP, EDID management
  • Ports:
    • +12V 2A: One 12 Volt DC power input
    • P0:
      • 8-wire RJ45 female
      • 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port
      • Provides network connection, network AV video, and power to the Encoders and Decoders
    • P1:
      • 8-wire RJ45 female
      • 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port
      • Provides network connection
    • IR: 2-pin terminal Phoenix connector. Provides Infrared (IR) output only (33-60 kHz; typically 39 kHz). Emitter may be necessary (not included)
    • RS232: 3-pin terminal Phoenix connector which provides a serial control interface. Full duplex communication. Available terminal speed settings: 1200-115200 baud rate
    • AUDIO: 5-pin terminal Phoenix connector which provides user-selectable balanced/unbalanced input. Dedicated audio input
    • HDMI IN: HDMI video input
    • VGA IN: DB15 analog input
  • Controls and Indicators — Front Panel:
    • RESET Button:
      • Recessed pushbutton
      • Press to initiate a 'warm restart' causing the processor to reset, but not lose power. A reset does NOT affect the current settings
    • ID Button:
      • Recessed pushbutton
      • Press to send a notification out on the network to identify the unit (the notification causes a pop-up dialog in N-Able and N-Command)
    • POWER LED:
      • On solid (green) when operating power is supplied (via PoE or local power supply)
      • This activity is also shown by the PWR LED on the rear panel
    • STATUS LED:
    • On flashing (green) when there is software activity
    • This activity is also shown by the STAT LED on the rear panel
  • Controls and Indicators — Rear Panel:
    • PWR LED: Same as POWER LED described above
    • HDMI LED: On (green) when there is a connection to a valid video source
    • STAT LED: Same as STATUS LED described above
    • STRM LED: On (green) when the unit is streaming video
  • Environmental:
    • Temperature: 32° to 104°F (0° to 40°C)
    • Humidity: 10% to 90% RH (non-condensing)
    • Heat Dissipation: Up to ~44 BTU/Hr
  • General:
    • Regulatory Compliance: FCC, CE, and NTRL
    • Recommended Accessories: NMX-ACC-N9206 (FGN9206), 2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
