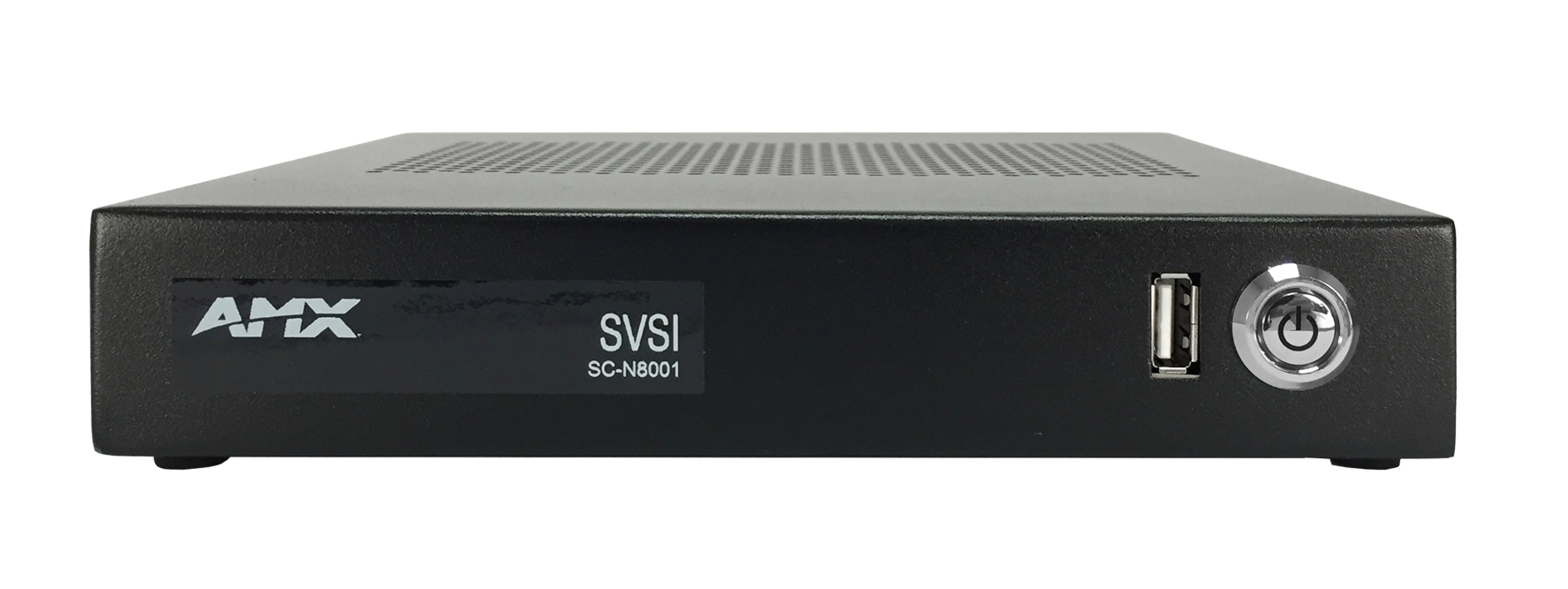

AMX SC-N8001
N-Series Controller for 5 Users - 50 Devices

OUR PART #:  FGN8001

The SC-N8001 (also known as Part # FGN8001) is one of the SC-N8000 N-Command Control Applications from AMX.
Learn More
Our Price: $2,390.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AMX SC-N8001
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The SC-N8001 (also known as Part # FGN8001) is one of the SC-N8000 N-Command Control Applications from AMX. This model provides intuitive and powerful management of SVSI system configuration, task automation, scripting, and wall building. The SC-N8001 offers AV switching for 5 users and 50 devices, while the SCN8002/SC-N8012 allow unlimited users and devices. N-Command Control Appliances also include a simplified ASCII interface for 3rd-party control via TCP/IP.

AMX SC-N8001 Features:

  • Multi-user web-based graphical matrix displays offer easy point and click control distributing and switching.
  • Switch between live video stream and locally-stored content
  • Tasks can be scheduled, edited, deleted, or executed immediately for content display
  • Includes wall builder, scripting, and panel builder features
  • Manage multiple video streams on a single Ethernet connection

AMX SC-N8001 Specifications:

  • Part #: FGN8001
  • Interface: Ethernet
  • Web-Based Control: Yes
  • Communicates with N-Command Mobile: Yes
  • Custom Panels: Yes
  • Custom Scripts: Yes
  • Max Devices: 50
  • Group Management: Yes
  • Host PC Required: No
  • Platform: Dedicated HW
  • Users: 5 Simultaneous
  • Confidence Viewer*: Yes

NOTE: *Only available via N3000 webpage

  • Audio Matrix Control: Yes
  • Backup and Restore: Yes
  • Direct TCP: Yes
  • Control 3rd-Party Devices: Yes
  • DIMENSIONS (HxWxD)
    • 1.5" x 7.625" x 7.625"
    • 3.81 cm x 19.36 cm x 19.36 cm
  • WEIGHT:
    • 2.2 lbs
    • 0.99 kg
  • ENVIRONMENTAL:
    • Temperature: 32° to 104°F (0° to 40°C)
    • Humidity: 10% to 90% RH (non-condensing)
    • Heat Dissipation: Up to ~200 BTU/Hr
  • REGULATORY COMPLIANCE:
    • FCC
    • CE
    • NTRL
