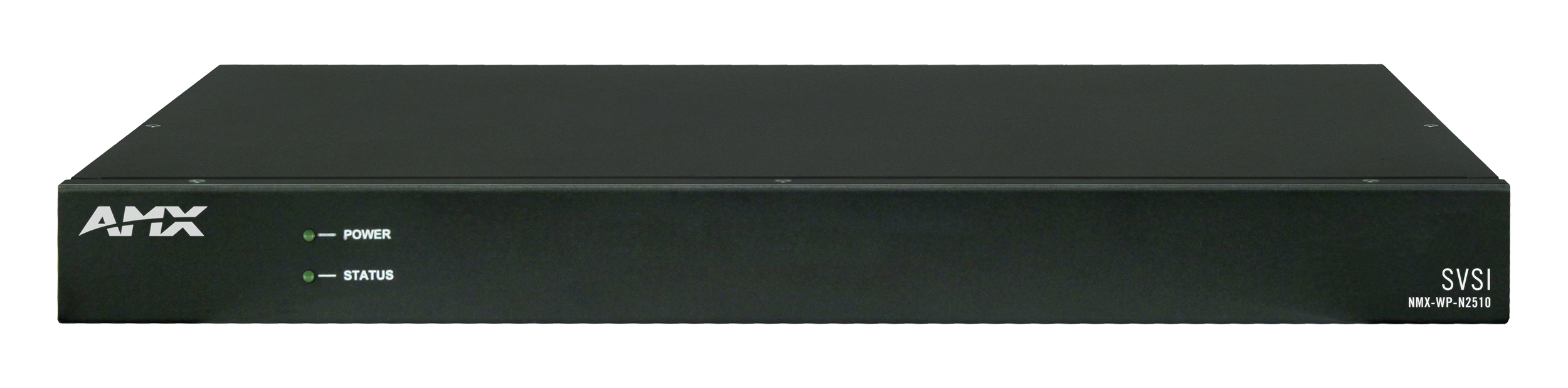

AMX FGN2510
N-Series Windowing Processor

OUR PART #:  FGN2510

Call for price! Not available online.
List Price: $7,490.00

Similar Products

The AMX FGN2510 Windowing Processor functions with the N-Series family of Video over IP Encoders and Decoders and are capable of handling multiple real-time HD streams with no video input or output connectors – using only a single network port. This is a fundamental shift in the way ProAV technologies have traditionally addressed windowing, but one that increases capability and flexibility while reducing installation and support costs.

The N-Series Windowing Processor is a 1RU rack-mount appliance that connects to an SVSI video over ip network and accepts any four video streams as input. Each input can be cropped, scaled, and positioned according to stored presets (such as quad, window-in-window, 3+1, etc) or in any user-defined configuration. The combined output video stream is then routed to one or more displays at HD 1080p or CG 1600×1200 resolution. It functions as a 4×1 windowing processor and can be stacked to give 7×1, 10×1, 13×1, 16×1, or higher capability. A single connection to the network provides access to all available SVSI video streams for window selection and for output of the combined stream.

AMX FGN2510 Features:

  • Retrofit Capable: Easily retrofits to an existing SVSi video network
  • Up to 4 Video Streams: Accepts up to four independent video streams in addition to user-defined static backgrounds
  • Built-In Web Interface: Easy-to-use, built-in web browser interface provides pallets to manipulate each ‘window’ stream: Crop, scale and position in seconds
  • 4x1 Windowing + Stacking: 4×1 windowing with stacking capability
  • HD Output: ?HD 1080p or CG 1600×1200 resolution output
  • Audio Matrix Switch: Built-in audio matrix switch allows selection of any audio stream for Windowing Processor output

AMX FGN2510 Specifications:

  • Video:
    • Signal Types: Network video over Ethernet via RJ45
    • Input Resolutions:
      • Input Stream
        • Pixel clock between 27 MHz - 150 MHz
        • Minimum resolution of 720x480p
        • Maximum horizontal resolution of 1920 or a vertical resolution of 1080
    • Output Resolutions: HD Up to 1080p60
  • Latency:
    • 720p: 112 ms
    • 1080p: 196 ms
  • Ports:
    • Power: One 120 Volt AC power input
    • P0-P2:
      • 8-wire RJ45 female
      • 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch ports
    • U0-U3:
      • 8-wire RJ45 female
      • 1000 Mbps 1000Base-T gigabit Ethernet switch ports. (Required for uncompressed video.)
  • Controls and Indicators – Front Panel:
    • RESET button: Recessed pushbutton. Recessed pushbutton. Press to initiate a 'warm restart' causing the processor to reset, but not lose power. A reset does NOT affect the current settings unless you press and hold one minute (which will restore the unit to factory default settings).
    • POWER LED: On solid (green) when operating power is supplied (via local power supply)
    • STATUS LED: On flashing (green) when there is software activity
    • Diagnostic LEDs:
      • LEDs 0-3 on top row: Flashing (green) represents activity on corresponding window.
      • LEDs 0-3 on bottom row: Solid (green) represents presence of video input stream on corresponding window
      • LEDs 4 on top and bottom rows: Used for advanced diagnostics
      • LED 5 on top row: Flashing green represents output video status/activity
      • LED 5 on bottom row: Flashing green represents software status/activity
  • Power Supply: Internal: 1.0 Amp @ 120 Volts AC; 100-240 Volts AC power supply
  • Environmental:
    • Temperature: 32° to 104°F (0° to 40°C)
    • Humidity: 10% to 90% RH (non-condensing)
    • Heat Dissipation: Up to ~44 BTU/Hr
  • General:
    • Dimensions (HxWxD): 1.75" x 17.25" x 12" (4.5 cm x 43.8 cm x 30.5 cm)
    • Weight: 7.15 lbs (3.24 kg)
    • Compliance: FCC, CE, and NTRL
    • Rack Mounting: Mounting ears included in shipment
