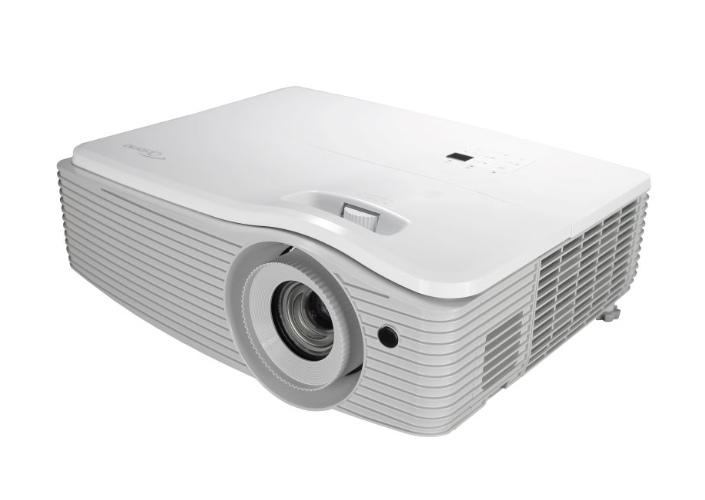

Optoma EH504WIFI
5000 Lumens 1080p DLP Installation Projector


The Optoma EH504WIFI is a full HD 1080p professional installation projector, offering a brightness of 5000 lumens, crystal clear images...
Learn More
Our Price: $1,399.00
List Price: $2,699.00
You save 48%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Optoma EH504WIFI
In Stock

Similar Products
Projection Calculator

The Optoma EH504WIFI is a full HD 1080p professional installation projector, offering a brightness of 5000 lumens, crystal clear images, and a variety of advanced features to facilitate a quick installation. The Optoma EH504WIFI is ideal for conference rooms, large classrooms, lecture theatres, museums and houses of worship. For more complex installations, this projector is equipped with a large zoom range, vertical lens shift and a built-in geometric adjustment feature - ideal for uneven walls or where a projector placement is awkward and needs to be installed at an angle.

Optoma EH504WIFI Features:

  • Wireless ready for screen mirroring and 4-way splitscreen presentation
  • Bright Projection - 5000 ANSI lumens
  • Four Corner correction - For a quick installation ontouneven walls
  • Installation flexibility – Vertical lens shift and1.6x zoom
  • Full Control over LAN and RS232
  • Vertical and Horizontal Keystone

Optoma EH504WIFI Specifications:

  • Display Technology: Single 0.65” 1080p chip, DLP®Technology from Texas Instruments™
  • Native Resolution: 1080p 1920 x 1080
  • Brightness: 5000 Lumens
  • Contrast Ratio: 15000:1
  • Throw Ratio: 1.41~2.24:1 (distance/width)
  • Keystone Correction: ±30° Vertical and Horizontal
  • Weight: 10.2 lb (4.6 kg)
  • Dimensions (WxHxD): 14.5" x 12" x 5.2"
  • Aspect Ratio: 16:9 (native), 4:3, Auto
  • Offset: 99% to 116% (+/- 5% variance)
  • Projection Screen Size: 26.2"~301.1" (diagonal)
  • Projection Distance: 51.18"–370"
  • Projection Lens: F=2.5~3.26, f=20.913~32.626mm -manual zoom and focus
  • Uniformity: 70%
  • Maximum Resolution: 1080p (1920 x 1080)
  • Computer Compatibility: UXGA, SXGA, XGA, SVGA, VGA,WXGA,1080p, Mac
  • Video Compatibility: PAL (B, D, G, H, I, M, N,4.43MHz), NTSC (M, J, 3.58MHz, 4.443MHz), SECAM (B, D, G, K, K1, L, 4.25,MHz,4.4MHz, 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz) 1080p(24/50/60Hz)
  • 3D Compatibility: Side-by-Side:1080i50 / 60Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
  • Horizontal Scan Rate: 15.375–91.146 KHz
  • Vertical Scan Rate: 24–85 Hz (120 Hz for 3D featureprojector)
  • Displayable Colors: 1.07 Billion
  • Power Supply: AC input 100–240V, 50–60 Hz,auto-switching
  • Power Consumption: 421W Max (Bright), 329W Max (ECO)
  • Operating Conditions: Operating Temp @ Sea Level to10000 feet = 23°C (max); must manually switch to high altitude mode @ 5000feet & above (using OSD)
  • Remote Control: SP.72702GC01
  • Optional Wireless: No
  • Warranty: 3 Years
  • Projection method: Front, rear, ceiling mount, tabletop
  • Warranty: 3-Year Optoma Express Service, 1-Year on Lamp
