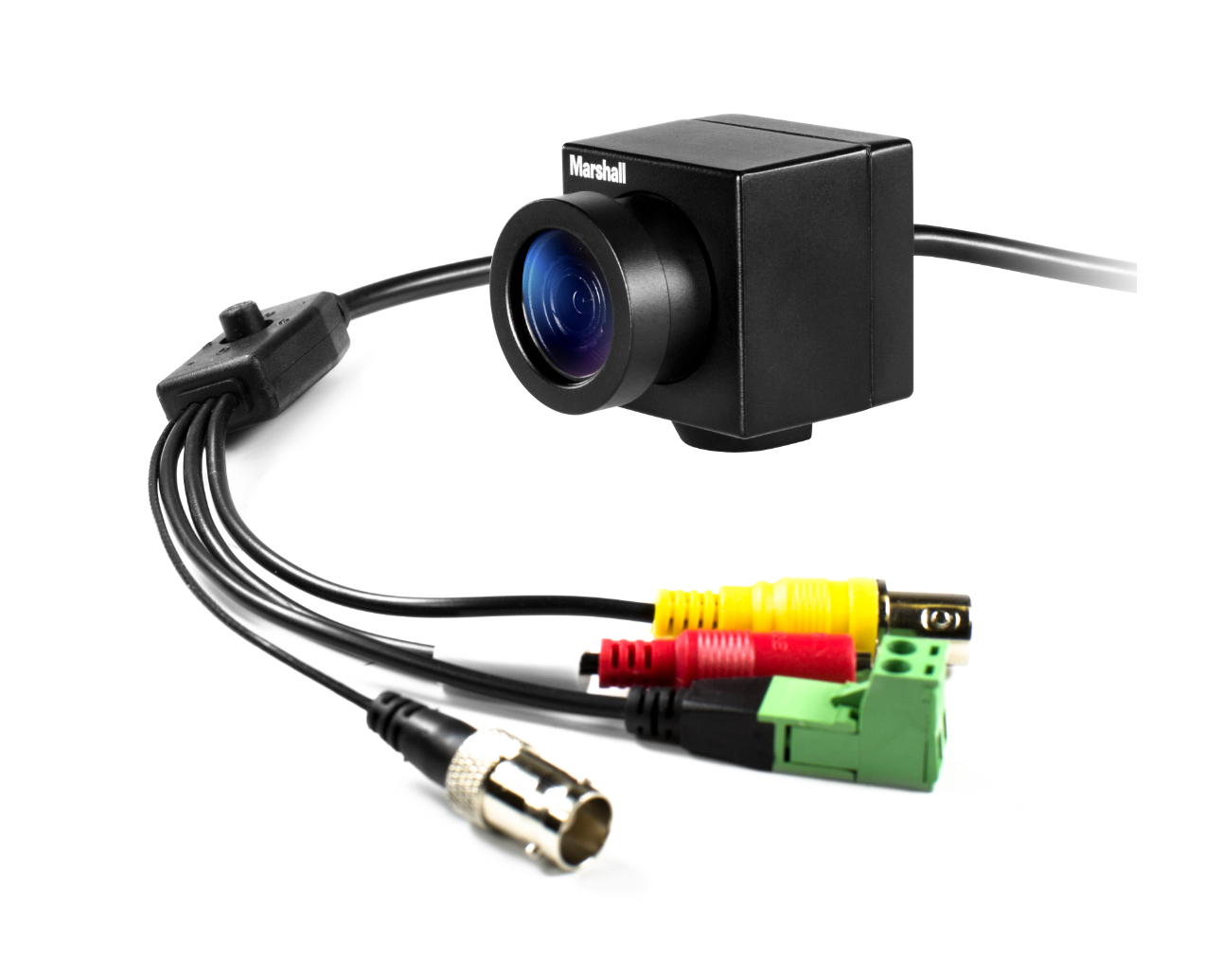

Marshall Electronics CV502-WPM
Full HD Weatherproof Mini Non-Broadcast Camera with 3.7mm Lens

OUR PART #:  CV502-WPM

The Marshall Electronics CV502-WPM is great for applications where weather becomes a factor; outdoor sporting events, nature observation...
Learn More
Our Price: $549.00
List Price: $699.00
You save 21%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics CV502-WPM
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Marshall Electronics CV502-WPM is great for applications where weather becomes a factor; outdoor sporting events, nature observation, or any non-Broadcast outdoor application where mother nature has an influence. Utilizing state of the art 1/3" high speed sensor packing 2,476,296 pixels (2.5 Megapixels) of clear, crisp video capture through full sized 3G/HD-SDI (BNC) outputs at resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/50/30/25 fps. Its proprietary pixel technology offers the lowest noise ratio on the market today, capturing sharp, vivid color images in very low light conditions, as low as 0.05 lux. Industry-leading low power consumption draws very low power in full 1920x1080p60/50fps modes. The CV502-WPM Pro-Series POV Camera continues to offer Field-of-View flexibility with interchangeable lenses and convenience of HD-SDI outputs, plus its RS485 connect-ability offers remote camera control communication via SONY VISCA or PELCO protocols. Includes both 3.7mm HD M12 Lens and power supply.

Applications:

  • Professional Sports
  • College Sports
  • OB Vans/Trucks
  • Concert & Studio Music Video
  • Performing Arts
  • Culinary Shows
  • Hidden Camera Shows
  • International Racing Circuits
  • Off-road Racing
  • Horse Racing
  • House of Worship
  • POV Video Shots

Marshall Electronics CV502-WPM Features:

  • 2.5 Megapixel 1/3" CMOS Sensor
  • Weatherproof IP67 rated Housing for outdoor applications
  • IP67: water protection submerged up to 1m (3.2") - total protection against dust, dirt, sand
  • Resolution: 1920x1080p60/50/30/25, 1920x1080i60/50, 1280x720p60/50/30/25fps
  • 3.7mm HD M12 Lens comes standard - 2.8mm (CV4702.8-3MP-IR) & 6.0mm (CV4706-3MP-IR) also available (sold separately
  • 3G/HDSDI (BNC) & CVBS (BNC) connections at end of 10ft breakout cable
  • RS-485 (connector) & 12V Power (connector) at end of 10ft breakout cable
  • Captures sharp & vivid color HD images at 0.2 Lux (low-light sensitive)
  • New WDR function supports high speed & high sensitivity to multiple light sources
  • Stepped (Red/Blue) Gain Control, Gamma, Brightness, and Shutter adjust via RS485 (Visca/Pelco)
  • OSD Menu Joystick, RS-485 connectable (Pelco/Visca)
  • Free Downloadable Software Control

Marshall Electronics CV502-WPM Specifications:

  • Sensor:
    • Image Sensor: 1/3" Progressive CMOS (Approx. 2.1 mega)
    • Scanning System: 16:9 Progressive
    • Sync. System: Internal
    • Effective Pixel: 1920 (H) x 1080 (V)
    • Min. Illumination: 0.2 Lux (Color), 0.1 Lux (Black/White), 0.005 Lux (DSS on)
    • Horizontal Resolution: 1000TVL
  • Optics:
    • Lens: CV502 comes with 3.7mm (M12 mount) - interchangeable (other lenses sold separately)
  • Functions:
    • Back Light Compensation: WDR (Wide Dynamic Range)/BLC (Back Light Compensation), HLC (High Light Compensation)
    • Exposure: Auto / Manual
    • White Balance: Auto (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / Manual
    • Day & Night System: AGC (Automatic Gain Control) / True Day/Night auto switch based on light environment (auto/manual) (ICR)
    • Electronic Shutter:
      • NTSC: 1/30~1/30000,
      • PAL: 1/25~1/30000, DSS( ~X64)
    • Functions: Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog, DIS (Digital Image stabilizer), NegArt, Freeze, B&W
  • Video Outputs:
    • 3G-SDI (+optional Audio) and HD-SDI (+optional Audio):
      • SMPTE 424M (2.97Gbps):
        • 1920x1080p @ 50/60fps
      • SMPTE 292M (1.485Gbps):
        • 1920x1080p @ 25/30
        • 1920x1080i @ 50/60fps
        • 1280x720p @ 60
    • CVBS (BNC): Composite-CVBS (BNC): 700TVL NTSC/PAL
  • Audio Input:
    • MIC Input:
      • Mic Level (1Vrms). 2.5V Microphone bias
      • 16-, 20-, 24-, 32-bits audio format. 48KHz sample rates
      • Gain: -12dB ~ 59.5dB
  • Control Interface:
    • RS-485:
      • PELCO-P/D, SONY-VISCA protocol
      • 8-bits data, 1 stop bit, no parity, 2400~115200bps
  • General:
    • Operation Temperature: -10°C ~ 50°C
    • Power Input: 12VDC (7V to 15VDC) - power supply included
    • Power consumption: Max 6W
    • Dimensions (WxHxD): 37 x 37 x 35 mm
    • Weight (Net): Approx. 140g
  • Camera Control Software Interface Screen Capture:

Free POV Camera Control Application
