Elation Pro Lighting E-FLY-TRANSCEIVER
E-Fly Wireless DMX Transceiver


Elation Pro Lighting E-FLY-TRANSCEIVER 1
Elation Pro Lighting E-FLY-TRANSCEIVER 2
Elation Pro Lighting E-FLY-TRANSCEIVER 3
Elation Pro Lighting E-FLY-TRANSCEIVER 4

Click a thumbnail to see more images. (5 total)

Our Price: $176.00
List Price: $220.00
You save 20%!
Write the first review.
Elation Pro Lighting E-FLY-TRANSCEIVER
In Stock

Related Products

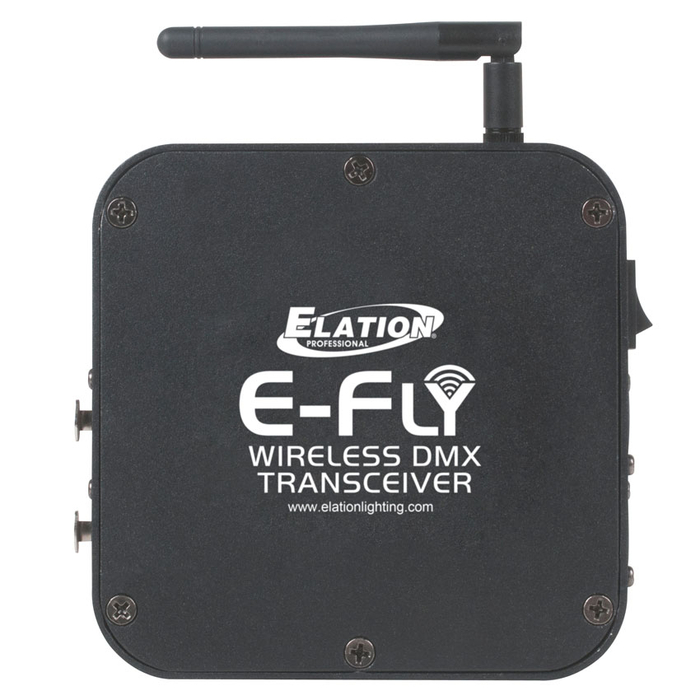

The Elation Pro Lighting E-FLY-TRANSCEIVER E-FLY™ Transceiver is a high-powered wireless DMX Transceiver (Transmitter/Receiver in one) that is compatible with other E-FLY™ and products and includes a rechargeable battery, which provides a solution for remote applications where access to power is a challenge. Connected to a DMX Controller, the E-FLY™ Transceiver will provide a constant and reliable wireless DMX signal up to 2,500 feet (762m) to other Elation E-FLY™ products. The 2.4 GHz wireless frequency will coexist in busy RF environments alongside technologies like Bluetooth and Wi-Fi.

Elation Pro Lighting E-FLY-TRANSCEIVER Includes:

  • 12VDC Power Supply
  • Back Panel Magnet for Easy Metal Surface Mounting
  • Mini Omega Bracket For Clamp/Truss Mounting (Clamp not included)

Elation Pro Lighting E-FLY-TRANSCEIVER Specifications:

  • Wireless DMX Transceiver (Transmitter/Receiver In One)
  • Rechargeable Battery Life - Up To 20-25 Hours From a 4 Hour Charge
  • Battery Life and Signal Strength Indicator Display
  • Wireless Range Up to 2,500 ft (762m) Open Line of Sight
  • Transmit To Multiple Receivers On Same Radio Channel
  • Supports Up To (15) DMX-512 Universes
  • (15) Radio Channels (1 DMX universe per channel)
  • Auto Pairing Feature
  • 3pin & 5pin DMX In/Out
  • Wireless Frequency: 2.4 GHz ISM
  • Control/Connections:
    • Battery Switch
    • Power Save Button
    • 3pin and 5pin DMX In/Out
    • 12VDC Power Supply Input
  • Size/Weight:
    • Length: 6.0” (152.7mm)
    • Width: 5.3” (134.4mm)
    • Vertical Height: 1.6” (62mm)
    • Weight: 1.3 lbs. (0.6kg)
  • Electrical/Thermal: 12VDC, 1A (AC or DC powered)

To be the first to review this item, click here.

Add to Cart

We're sorry, only of this item available

Call a Sales Pro at 800-356-5844 for more information
