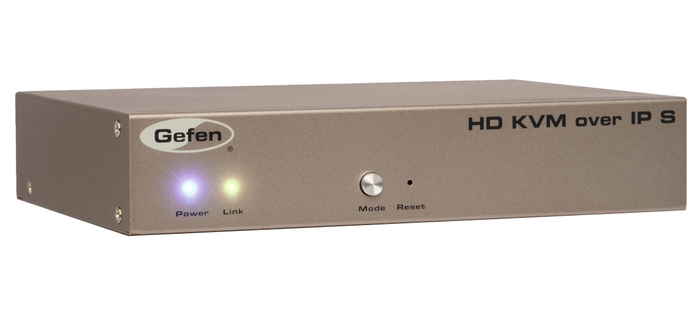

Gefen Inc HD KVM Over IP
Transmitter/Sender Package


The Gefen HD KVM over IP Sender Package is the transmitter component of their sender/receiver system that can extend HDMI, USB, 2-way analog audio...
Learn More
Our Price: $579.00
Write the first review.
Gefen Inc HD KVM Over IP
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Gefen HD KVM over IP Sender Package is the transmitter component of their sender/receiver system that can extend HDMI, USB, 2-way analog audio, RS-232, and IR over a Gigabit Local Area Network. Resolutions of up to 1080p Full HD, and 1920 x 1200 (WUXGA) are supported. This transmitter unit can automatically or manually be configured to unique IP addresses, allowing the connection of multiple units to the same network. Multiple Receiver units can simultaneously be connected to any Sender within the network, including the Gefen KVM over LAN products with HDMI, DVI, or VGA video, providing for the creation of a virtual crosspoint matrix of just over 65,000 total Sender and Receiver units, depending on bandwidth of the network and number of ports on the network switch*. When using HDCP-encrypted content, only HDMI Sender and Receiver units can accept and display it. Each Receiver has an Ethernet switch onboard, as well as 2 additional RJ-45 Ethernet ports allowing for the connection of computers and other IP-enabled devices. It supports USB 2.0 data rates of up to 480 Mbps along with USB 1.1 backward-compatibility. Each Receiver includes 2 USB ports with up to 500mA current draw per connector, offering access to keyboard, mouse, and other compatible devices. Bi-directional analog audio support lets audio be transported between Senders and the Receivers. The onboard mic pre-amp on the Receiver provides compatibility with a variety of microphones. IR commands from the Receiver side can be extended to signal sources connected to any of the connected Senders. Also, RS-232 serial control can be extended between each Sender and Receiver unit. The onboard web server interface makes for easy and intuitive operation, set-up, and configuration. Gefen's HD KVM over IP system is an ideal solution for large scale remote workstation access and digital signage uses.

*Note:  A Gigabit switch is required. The Gigabit switch must support 8k jumbo frame packets in order for multicast mode to operate. If your LAN is not dedicated to Gefen KVM-LAN products exclusively, then a managed switch is highly recommended.

Gefen HD KVM Over IP Sender Package Includes:

  • (1) HD KVM over IP - Sender (EXT-HDKVM-LANS)
  • (1) 6 ft. locking HDMI cable (M-M) (CAB-HD-LCK-06MM)
  • (1) 6 ft. USB cable (A-B) (CAB-USB-6)
  • (1) 6 ft. RS232 Cable (CAB-DB9-6MF)
  • (2) Pairs, L-Shaped Surface Mounting Brackets with screws (EXT-MP-C01)
  • (2) 5V DC Power Supplies (EXT-PS526AIP-LP)
  • (1) Quick-Start Guide (QSG-HDKVM-LAN)

Gefen HD KVM Over IP Sender Package Features:

  • Extends HDMI, USB, RS-232, bi-directional stereo analog audio, and IR over IP, using a Gigabit Local Area Network
  • Supports resolutions: up to 1080p Full HD and 1920 x 1200 (WUXGA)
  • Supported HDMI Features:
    • HDCP
    • Deep Color
    • LPCM 7.1 audio, Dolby® TrueHD, and DTS-HD® Master Audio™
    • Lip-Sync pass-through
  • Built-in web interface facilitates intuitive set up and operation
  • Any of the Senders within a network can be accessed by any Receiver unit via a web browser on a mobile device or computer, or by using the Gefen Keyboard Switching Controller software (available for download - contact your Sales Pro for more information)
  • Supports a total of just over 65,000 Sender and Receiver units, depending on  the network bandwidth and number of ports on your network switch
  • USB 2.0 data rates up to 480 Mbps and backward-compatibility with USB 1.1
  • Onboard 3-port Gigabit Ethernet switch
  • Mode button on Sender for sharpness or motion optimization of image
  • Field-upgradable firmware via web server interface
  • Locking power supply connectors
  • 1U tall, half-rack width enclosures are rack-mountable using EXT-RACK-1U (sold separately)

Gefen HD KVM Over IP Sender Package Specifications:

  • Manufacturer #: EXT-HDKVM-LANTX
  • Maximum Pixel Clock: 225 MHz
  • Video Input Connector: (1) HDMI Type A 19-pin, female, locking
  • Mic Input: (1) 3.5mm mini-stereo jack
  • Line Output: (1) 3.5mm mini-stereo jack
  • USB Host Interface: (1) USB Type B, female
  • RS-232 Connector: (1) DB-9, female
  • IR Extender: (1) 3.5mm mini-mono jack
  • IR Extender Type: EXT-RMT-EXTIRN (sold separately)
  • Ethernet connectors: (1) RJ-45, shielded
  • Mode button: (1) tact-type
  • ID Selector switch: (1) rotary-type
  • Link Indicator: (1) LED, green
  • Power Indicator: (1) LED, blue
  • Power Supply: 5V DC, locking
  • Power Consumption: 10W (max.)
  • Dimensions: 8.4" W x 1.7" H x 4.5" D (213 x 43 x 113mm)
  • Shipping Weight: 5.7 lbs (3.0 kg)
