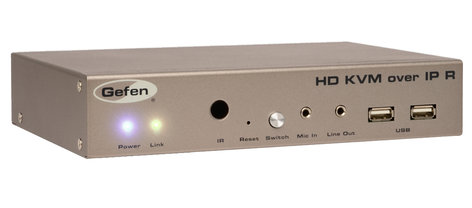

Gefen Inc HD KVM Over IP
Receiver Package

OUR PART #:  EXT-HDKVM-LANRX

The Gefen HD KVM over IP Receiver Package is the receiver part of their sender/receiver system that extends HDMI, USB, 2-way analog audio...
Learn More
Our Price: $449.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Gefen Inc HD KVM Over IP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Gefen HD KVM over IP Receiver Package is the receiver part of their sender/receiver system that extends HDMI, USB, 2-way analog audio, RS-232, and IR over a Gigabit Local Area Network. Resolutions of up to 1080p Full HD, and 1920 x 1200 (WUXGA) are supported. This unit can automatically or manually be configured to unique IP addresses, allowing the connection of multiple units to the same network. Multiple Receiver units can be simultaneously connected to any Sender unit within the network, including the Gefen KVM over LAN products with HDMI, DVI, or VGA video, allowing for the creation of a virtual crosspoint matrix of just over 65,000 total Sender and Receiver units, depending on network bandwidth and number of ports on the network switch*. When using HDCP-encrypted content, only HDMI Senders and Receiver units can accept and display it. Each Receiver has an onboard Ethernet switch and 2 additional RJ-45 Ethernet ports allowing for the connection of computers and other IP-enabled devices. USB 2.0 data rates of up to 480 Mbps are supported along with backward-compatibility with USB 1.1. Each Receiver has 2 USB ports with up to 500mA current draw per connector, offering access to keyboard, mouse, and other compatible devices. Bi-directional analog audio capability lets audio be transported between the Sender and the Receiver units. The onboard mic pre-amp on the Receiver assures compatibility with a variety of microphones. IR commands from the Receiver side can be extended to signal sources connected to any of the Senders. RS-232 serial control can also be extended between each Sender and Receiver unit. The onboard web server interface makes operation, set-up, and configuration easy and intuitive. The Gefen HD KVM over IP system is a terrific solution for large scale remote workstation access and digital signage uses.

*Note:  A Gigabit switch is required. The Gigabit switch must support 8k jumbo frame packets in order for multicast mode to operate. If your LAN is not dedicated to Gefen KVM-LAN products exclusively, then a managed switch is highly recommended.

Gefen HD KVM Over IP Receiver Package Includes:

  • (1) HD KVM over IP - Receiver (EXT-HDKVM-LANR)
  • (1) 6ft locking HDMI cable (M-M) (CAB-HD-LCK-06MM)
  • (1) 6ft USB cable (A-B) (CAB-USB-6)
  • (1) 6ft RS232 Cable (CAB-DB9-6MF)
  • (2) Pairs, L-Shaped Surface Mounting Brackets with screws (EXT-MP-C01)
  • (2) 5V DC Power Supplies (EXT-PS526AIP-LP)
  • (1) Quick-Start Guide (QSG-HDKVM-LAN)

Gefen HD KVM Over IP Receiver Package Features:

  • Extends HDMI, USB, RS-232, bi-directional stereo analog audio, and IR over IP, using a Gigabit Local Area Network
  • Supports resolutions: up to 1080p Full HD and 1920 x 1200 (WUXGA)
  • Supported HDMI Features:
    • HDCP
    • Deep Color
    • LPCM 7.1 audio, Dolby® TrueHD, and DTS-HD® Master Audio™
    • Lip-Sync pass-through
  • Built-in web interface facilitates intuitive set up and operation
  • Any of the Senders within a network can be accessed by any Receiver unit via a web browser on a mobile device or computer, or by using the Gefen Keyboard Switching Controller software (available for download - contact your Sales Pro)
  • Supports a total of just over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
  • USB 2.0 data rates up to 480 Mbps and backward-compatibility with USB 1.1
  • Onboard 3-port Gigabit Ethernet switch
  • Mode button on Sender for sharpness or motion optimization of image
  • Field-upgradable firmware via web server interface
  • Locking power supply connectors
  • 1U tall, half-rack width enclosures are rack-mountable using EXT-RACK-1U (sold separately)

Gefen HD KVM Over IP Receiver Package Specifications:

  • Manufacturer #: EXT-HDKVM-LANRX
  • Maximum Pixel Clock: 225 MHz
  • Video Output Connector: (1) HDMI Type A 19-pin, female, locking
  • Mic Input: (1) 3.5mm mini-stereo jack
  • Line Output: (1) 3.5mm mini-stereo jack
  • USB Device Connectors: (2) USB Type A, female
  • RS-232 Connector: (1) DB-9, male
  • IR Extender: (1) 3.5mm mini-stereo jack
  • IR Extender Type: EXT-RMT-EXTIRN (sold separately)
  • Ethernet connectors: (3) RJ-45, shielded
  • Switch button: (1) tact-type
  • Reset button: (1) tact-type, recessed
  • Link Indicator: (1) LED, green
  • Power Indicator: (1) LED, blue
  • Power Supply: 5V DC, locking
  • Power Consumption: 10W (max.)
  • Dimensions: 8.4" W x 1.7" H x 4.5" D (213 x 43 x 113mm)
  • Shipping Weight: 4.6 lbs (2.0 kg)
