HK Audio Smart Base Single System PA System with E 835 and E 110 Sub AS

OUR PART #: HKSMARTBASE MFR #: EL-SMART

Copied to clipboard

The HK Audio Smart Base single system is incredibly flexible and easy to expand, making it the perfect PA solution for anything from clubs to open air gigs. ...Read more

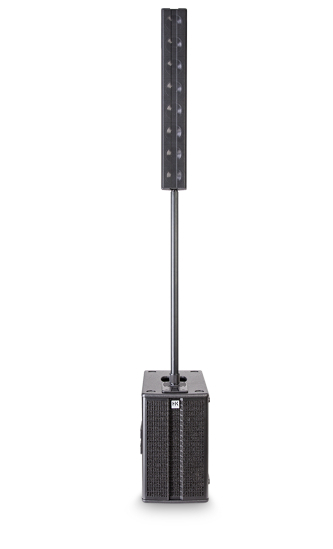

HK Audio Smart Base Single System PA System With E 835 And E 110 Sub AS Image 1
HK Audio Smart Base Single System PA System With E 835 And E 110 Sub AS
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The HK Audio Smart Base single system is incredibly flexible and easy to expand, making it the perfect PA solution for anything from clubs to open air gigs. For DJ applications where more bass is required, an E 110 SUB subwoofer will do the trick, while a second E 835 mid/high unit can be added for open air shows that require far-reaching mid/high frequencies.

HK Audio HKSMARTBASE Features:

  • Elegant design
  • Scalable and flexible to expand
  • Practically cable-free
  • Lightweight and compact
  • Maximum output (with all add-ons): 2,400 watts
  • 5-year HK Audio warranty

HK Audio HKSMARTBASE Specifications:

  • Model: E 835
    • Power-handling nominal (RMS): 300 W RMS @ 8 Ohm
    • Nominal impedance: 8 Ohm
    • Sensitivity 1W/1m: 100 dB (half space)
    • Frequency response -10 dB: 140 Hz – 20 kHz, via active system
    • Speaker: 8 x 3.5" broadband
    • Directivity: 70° horizontal
    • Crossover frequency: 140 Hz, 12 dB/oct.
    • Connections:
      • 1 x E-Connect-In
      • 1 x E-Connect-Out
    • Dimensions (W x H x D): 11 x 74.5 x 12 cm (exkl.E-Connect- sleeves)
    • Weight: 9.9 lbs (4.5 kg)
  • Model: E 110 Sub AS
    • Headline: System Subwoofer
    • Nominal impedance: 10 Ohm
    • Frequency response -10 dB: 45 Hz – 150 Hz (measured with active separation)
    • Subwoofer amplifier: 1 x 600 W/Class-D @ 4 Ohm
    • Active protection circuits: RMS limiter, subsonic filter; DC, load, and thermal (temp.- controlled fan)
    • LF Speaker: 1 x 10" (2" voice coil)
    • Connections: 1 x XLR-Kombi-In, 1 x XLR-Through, 2 x Speakon-Out (1 x Sub + 1 x Mid-High), 2 x E-Connect-Out
    • Input Sensitivity: (selectable) +4 dBu / -10 dBu
    • Continous power into 4 ohms: 600 W Class-D @ 4 Ohm (Subs) / 600 Watt Class-D @ 4 Ohm (Mid/High)
    • Pole mount: 2 x E-Connect
    • Dimensions (W x H x D): 30 x 48 x 46 cm
    • Weight: 40.8 lb (18.5 kg)
