Product Overview

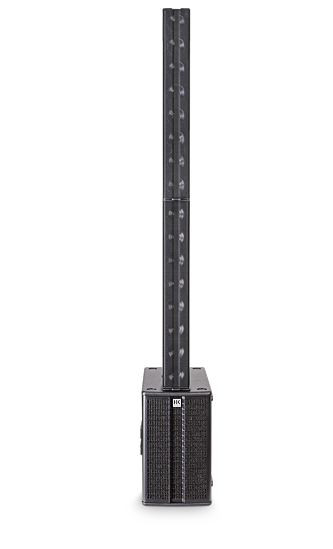

The HK Audio Line Base single system is composed of two E 835 mid/high units in a mono column format, and it offers genuine long-throw sound reproduction properties for bigger indoor venues and open air concerts too. If more bass is required, the system can easily be expanded with a passive E 110 SUB subwoofer.
HK Audio Line Base Single System Features:
- Elegant design
- Scalable and flexible to expand
- Practically cable-free
- Lightweight and compact
- Maximum output: 2,400 watts
- Long-throw properties
- 5-year HK Audio warranty
HK Audio Line Base Single System Specifications:
- Model: E 835
- Power-handling nominal (RMS): 300 W RMS @ 8 Ohm
- Nominal impedance: 8 Ohm
- Sensitivity 1W/1m: 100 dB (half space)
- Frequency response -10 dB: 140 Hz – 20 kHz, via active system
- Speaker: 8 x 3,5" broadband
- Directivity: 70° horizontal
- Crossover frequency: 140 Hz, 12 dB/oct.
- Connections:
- 1 x E-Connect-In
- 1 x E-Connect-Out
- Dimensions (W x H x D): 11 x 74,5 x 12 cm (exkl.E-Connect- sleeves)
- Weight: 9.9 lbs (4.5 kg)
- Model: E 110 Sub AS
- Headline: System Subwoofer
- Nominal impedance: 10 Ohm
- Frequency response -10 dB: 45 Hz – 150 Hz (measured with active separation)
- Subwoofer amplifier: 1 x 600 W/Class-D @ 4 Ohm
- Active protection circuits: RMS limiter, subsonic filter; DC, load, & thermal (temp.- controlled fan)
- LF Speaker: 1 x 10" (2" voice coil)
- Connections: 1 x XLR-Kombi-In, 1 x XLR-Through, 2 x Speakon-Out (1 x Sub + 1 x Mid-High), 2 x E-Connect-Out
- Input Sensitivity: (selectable) +4 dBu / -10 dBu
- Continous power into 4 ohms: 600 W Class-D @ 4 Ohm(Subs) / 600 Watt Class-D @ 4 Ohm (Mid/High)
- Pole mount: 2 x E-Connect
- Dimensions (W x H x D): 30 x 48 x 46 cm
- Weight: 40.8 lb (18.5 kg)
