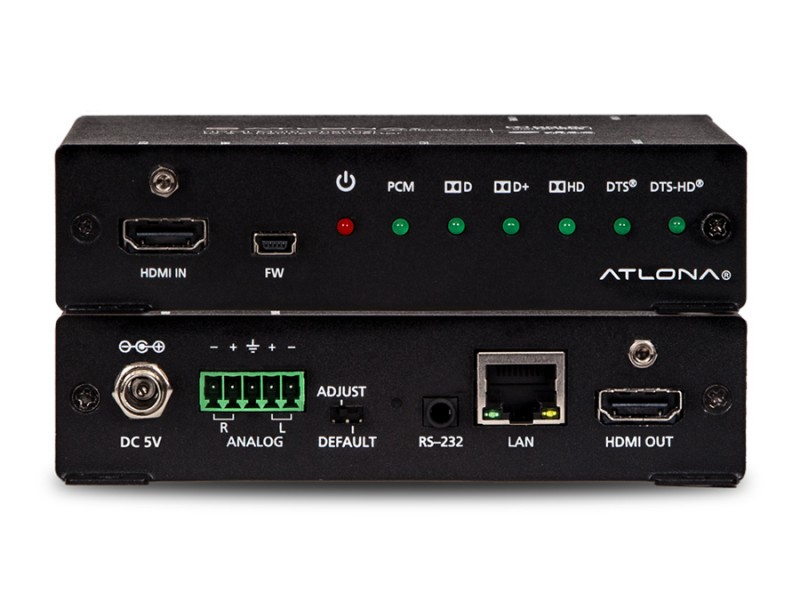

Atlona Technologies AT-UHD-M2C-BAL
2-Channel Balanced Audio Converter

OUR PART #:  AT-UHD-M2C-BAL

The Atlona AT-UHD-M2C-BAL is an audio converter used to extract and downmix multi-channel LPCM, Dolby®...
Learn More

Call for price! Not available online.

Similar Products

The Atlona AT-UHD-M2C-BAL is an audio converter used to extract and downmix multi-channel LPCM, Dolby®, and DTS® surround sound signals from HDMI sources to balanced analog signals for professional audio systems. The converter provides controls for one- or two-channel mode, volume, mute, bass, and treble via RS-232, TCP/IP, and a web-based GUI. A balanced analog audio output is provided on a 5-pin captive screw connector. The video pass-through design of the AT-UHD-M2C-BAL allows it to be placed anywhere in the signal path where a convenient audio feed to the sound system is required.

This product is the commercial version of the AT-HD-M2C. In commercial applications where audio is provided by an HDMI source, integrators need an easy solution to extract balanced, +4 dBu, two-channel or monaural audio for professional sound reinforcement systems while maintaining full 4K/UHD video signal integrity for video switching and distribution systems. Integrated control reduces total cost in simple systems potentially eliminating a DSP or other volume control device.

The AT-UHD-M2C-BAL is ideal for use in training or meeting spaces that require audio from PCs or Blu-ray players to be routed to a distributed speaker system. The converter is placed in line between the source and the HDBaseT transmitter or switcher in order to provide a feed to both the sound and video systems.

Atlona AT-UHD-M2C-BAL Features:

  • Universal de-embedder for Dolby and DTS signals
    • Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, and DTS-HD Master Audio™
    • HDMI audio de-embedding with or without a video display or other sink connection
    • Allows any multi-channel audio stream to be used within a professional audio system
  • Downmixes multi-channel audio to 1 or 2-channel audio
    • Extracts, decodes, downmixes and converts digital multi-channel streams to analog two channel or summed mono signals
    • Provides easy integration of HDMI audio sources into professional audio systems
  • Balanced audio output
    • Professional, +4dBu audio is provided on a 5-pin captive screw connector
    • Allows for fast integration with professional sound systems
  • Volume and EQ adjustment
    • On-board adjustment of output volume, bass and treble settings via RS-232 and web-based GUI
    • Audio adjustment without external DSP
  • 4K/UHD support
    • Supports all HDMI resolutions up to 4K@30 Hz
    • Ensures all high resolution signals are passed to video system
  • HDMI Receiver
    • Functions as an HDMI sink so no additional devices are required for operation
    • Eliminates the cost of HDMI sink such as a display or UHD-SYNC
  • EDID management
    • Manages EDID communications between source and switcher; allows integrators to force sources to preferred resolution
    • Ensures desired audio formats and video resolutions are provided to the AV system; eliminates the need for EDID management device
  • HDCP Management
    • HDCP compliance can be switched on/off from control systems for use with non-compliant displays, streaming devices and codecs
    • Allows non-protected material from PCs to pass to non-compliant displays and teleconference systems while protected content is not transmitted
  • Control capabilities
    • RS-232, TCP/IP and web-based GUI provide external control of volume, mute, bass, and treble
    • Easy interfacing with control systems for simplified audio system adjustments
  • Default switch
    • Allows volume, mute, EQ, and 2- /1-ch. settings to be externally controlled (Adjust) or reset to factory settings (Default)
    • Provides quick troubleshooting adjustment when control systems are not available
  • Included accessories
    • User guide, desktop power supply, detachable power cable
  • Award-winning 10 year limited product warranty
    • Ensures long-term product reliability and performance in residential and commercial systems
    • Specify, purchase, and install with confidence

Atlona AT-UHD-M2C-BAL Specifications:

  • Resolution
    • Video:
      • 4096×2160@24/25/30Hz
      • 3840×2160@24/25/30Hz
      • 2048x1080p
      • 1080p@23.98/24/25/29.97/30Hz
      • 1080i@ 50/59.94/60Hz
      • 720p@50/59.94/60Hz
      • 576p
      • 576i
      • 480p
      • 480i
    • VESA:
      • 2560×2048
      • 2560×1600
      • 2048×1536
      • 1920×1200
      • 1680×1050
      • 1600×1200
      • 1440×900
      • 1400×1050
      • 1366×768
      • 1360×768
      • 1280×1024
      • 1280×800
      • 800×600
      • 640×480
    • Colorspace: RGB, YCbCr
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
    • Color depth: 8-bit, 10-bit, 12-bit
  • Audio
    • Formats – HDMI IN/OUT:  PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
    • Formats – Captive screw analog  Balanced +4dBu, 2Ch
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz
    • Total Harmonic Distortion: 0.0008% (dB, sample frequency: 48kHz)
    • Signal/Noise Ratio: 142dB
    • Frequency Range: 20Hz to 20kHz +/- .1dB
    • Crosstalk: < -103dB
    • Bass: 15dB to -15dB @ 500Hz
    • Treble: 15dB to -15dB @ 2kHz
  • Distance (per port)
    • HDMI @ 1080p: up to 10 meters/up to 30 feet
    • HDMI @ 4K: up to 5 meters/up to 15 feet
  • Signal
    • Bandwidth  10.2 Gbps
    • HDCP: Switchable – Compliant/Non compliant
  • Connector
    • Firmware: Mini-B USB
    • RS-232: 3.5mm mini jack – Tip: Pin 2 (TX), Ring: Pin 3 (RX), Sleeve: Pin 5 (Ground)
    • LAN: RJ45, TCP/IP
    • HDMI: Type A
    • Analog: Balanced, 5-pin captive screw
    • Power: DC 5V locking connector
  • Temperature
    • Operating: 32°F to 122°F (0°C to 50°C)
    • Storage: -4°F to 140°F (-20°C to 60°C)
    • Humidity: 20 to 90%, non-condensing
  • Power
    • Consumption: 7W
    • Supply
      • Input: AC100~240V 50/60Hz
      • Output: DC 5V/2.6A
  • Dimensions(HxWxD): 1.18" x 4.92" x 4.33" (30 x 125 x 110 mm)
  • Weight:Device:0.61lbs (0.28kg)
  • Certification
    • Power Supply: CE, FCC, cULus, RCM
    • Product: CE, FCC
