Atlona Technologies AT-HD120
Composite to HDMI Converter & Scaler


The Atlona Technologies AT-HD120 is a converter scaler.
Learn More
Our Price: $200.00
Write the first review.
Atlona Technologies AT-HD120
In Stock

Related Products

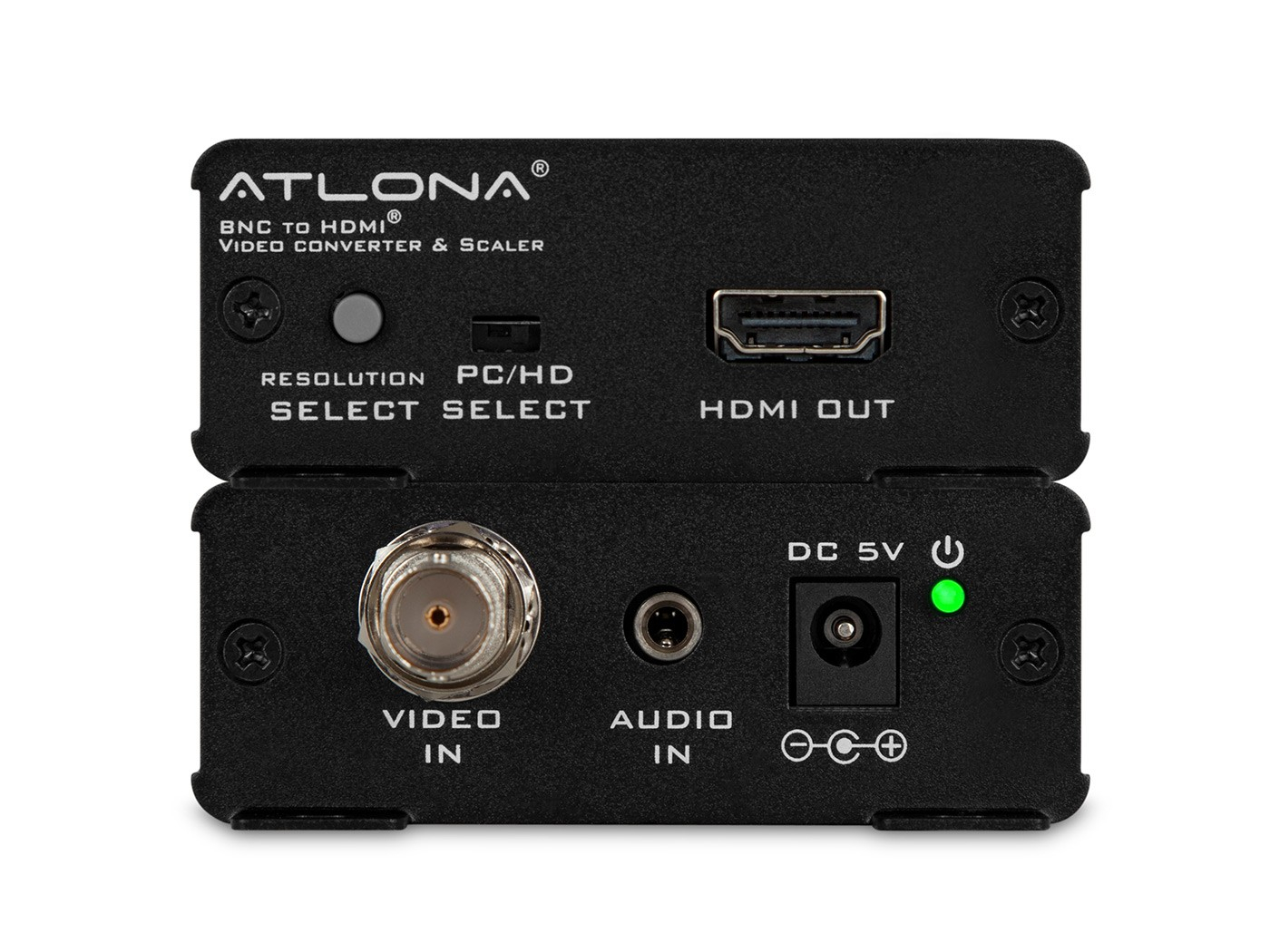

The Atlona Technologies AT-HD120 is a converter scaler. Converting and scaling composite video (BNC) signal to HD Displays becomes as simple as ‘plug and play’ with the AT-HD120. Includes a built in scaler and on screen control for output resolution options. Selectable resolutions available up to 1080p or 1600×1200.

Atlona Technologies AT-HD120 Includes:

  • Atlona AT-HD120
  • 5V power supply
  • Instruction manual
  • BNC to RCA adaptor

Atlona Technologies AT-HD120 Features:

  • Converts composite video and stereo audio to HDMI: With a built in converter the AT-HD120 will combine a composite video (BNC) signal and stereo audio signal into a signal that passes over a single HDMI cable.
  • Built in Scaler: The AT-HD120 receives low resolution signals (such as 600×800 or 480i) and scales them up to 1600×1200 or 1080p allowing HD video.
  • Video System: Compatible with NTSC and PAL video formats.

Atlona Technologies AT-HD120 Specifications:

  • Inputs: 1 x Composite Video (BNC), 1 x  1/8”stereo audio (3.5mm)
  • Outputs: 1x HDMI (Type A Female)
  • Resolutions:
    • Vesa: 1024×768 (XGA), 1280×1024 (SXGA), 1600×1200 (UXGA) – computer display only supports 60hz
    • Video: 480p, 576p (50Hz only), 720p, 1080p HDTV (50/60hz compatible)
  • Dimensions (WxDxH): 3.1” x 5.2” x 1.2” (78.5 x 131 x30mm)
  • Weight: 0.44lbs (200g)
