Atlona Technologies AT-DVI60SRS
Passive DVI Extenders Over single Cat5/6/7

OUR PART #:  AT-DVI60SRS

The Atlona Technologies AT-DVI60SRS is a DVI Passive Extender kit that allows you to extend high resolution DVI digital signals great distances.
Learn More
Our Price: $249.99

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Atlona Technologies AT-DVI60SRS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atlona Technologies AT-DVI60SRS is a DVI Passive Extender kit that allows you to extend high resolution DVI digital signals great distances. The DVI60SRS can transmit resolution such as 1920×1200 up to 160ft away or 1024×768 up to 180ft. With AT-DVI60SRS, users can send high quality digital video from DVI enabled PC/Laptop through single cost effective Cat5, Cat6 or Cat7 cable to the remote monitor or projector, instead of using short and expensive DVI cables.

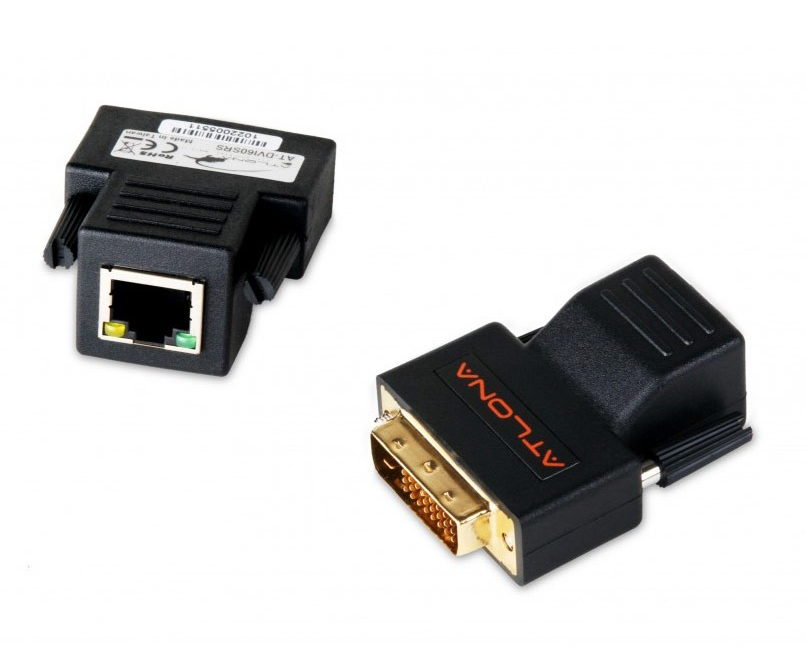

The AT-DVI60SRS includes one transmitter and one receiver units. The transmitting unit is connected to your PC DVI output and the receiving unit is connected to the monitor or projector. The transmission distance between the transmitting and receiving units can be up to 160ft (50m) at resolutions up to 1920×1200 or 180ft (55m) at resolutions up to 1024×768. With compact size and requiring no power, AT-DVI60SRS is the most cost effective choice for bringing your impressive digital video to the remote display.

Atlona Technologies AT-DVI60SRS Includes:

  • Transmitter Module
  • Receiver Module
  • Instructions Manual

Atlona Technologies AT-DVI60SRS Features:

  • DVI 1.1 compliant
  • Extend the transmission length 160ft (50m) atresolutions up to 1920×1200 or 180ft (55m) at resolutions up to 1024×768
  • Easy to install
  • No power required (passive)
  • Compact size
  • Direct plug-in
  • Capable of using CAT5/6/7 (568B Termination foroptimal results)
  • Network Traffic LEDS (denotes active network traffic)

Atlona Technologies AT-DVI60SRS Specifications:

  • Role of usage: Transmitter [TX] Receiver [RX]
  • DVI compliance: DVI 1.1
  • HDCP compliance: No
  • Video bandwidth Single-link: 165MHz (4.95Gbps)
  • Video support Up to WUXGA: 1920×1200 @ 60Hz
  • DVI over CAT5e transmission: 1920×1200 @ 60Hz – 160ft(50m)
  • 1024×768 @ 60Hz – 180ft (55m)
  • Audio support: No audio for DVI signal
  • Equalization: None
  • Input TMDS signal: 1.2 Volts (peak-to-peak)
  • Input DDC signal 5 Volts: (peak-to-peak, TTL) fromDVI output
  • Input: 1 x DVI 1x RJ-45
  • Output: 1x RJ-45 1 x DVI
  • DVI connector: DVI-I (29-pin male digital only)
  • RJ-45 connector: WE/SS 8P8C with 2 LED indicators
