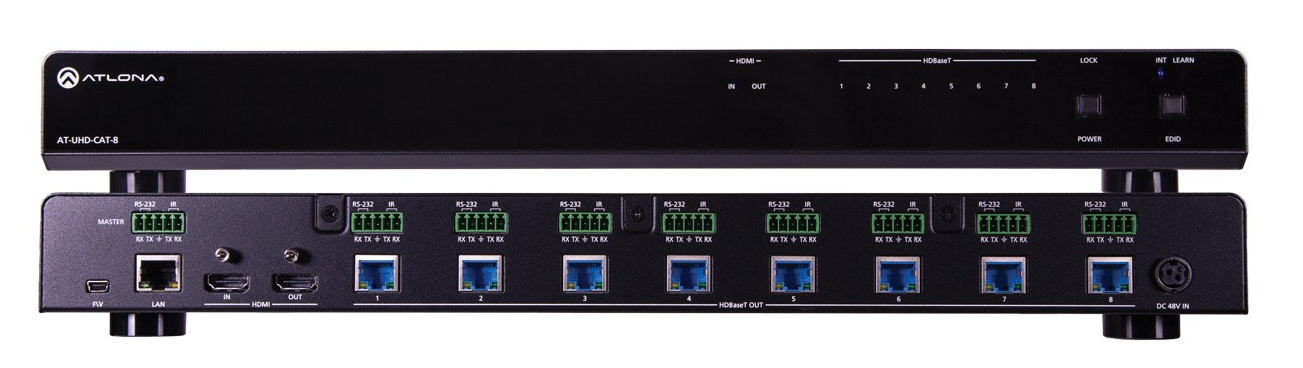

Atlona Technologies AT-UHD-CAT-8 4K/UHD 8-Output HDMI to HDBaseT Distribution Amplifier

The Atlona Technologies' AT-UHD-CAT-8 is a 4K/UHD HDMI to HDBaseT™ distribution amplifier featuring pass-through HDMI input connections, and HDBaseT outputs and display control capability. Each output transmits AV and control signals up to 230 ft. (70 m) @ 1080p and 130 ft. (40 m) @ 4K/UHD. Features include 4K/UHD @ 60 Hz with 4:2:0 color depth, HDCP 2.2 compliance, EDID management, and PoE for remote receiver powering. A wide variety of consumer and commercial displays may be controlled by the AT-UHD-CAT-8 using CEC, IR, or RS-232. Designed for commercial or residential distribution applications, the AT-UHD-CAT-8 is control system-friendly and integrates with any TCP/IP, RS-232, or IR control system and features a 1U, full-rack width enclosure with external, international power supply.

The AT-UHD-CAT-8 is ideal for environments requiring clear, crisp, ultra-high definition images such as:

• Retail, restaurant, and entertainment environments that need long distance signal extension of high-impact messages and program information
• TV showrooms that demand the highest quality signal be delivered to each 4K television to entice customers to make an immediate purchase decision
• Any single image/multi-screen environment that requires display control

Atlona AT-UHD-CAT-8 Features:

• HDMI distribution amplifier with built-in HDBaseT transmission
• (8) HDBaseT outputs with transmission of AV and control signals and PoE
• 4K/UHD capability with HDCP 2.2 copy protection
• Automatic display control

Atlona AT-UHD-CAT-8 Specifications:

• Resolution:
  • Color Space: YUV, RGB
  • Color Depth: 8-bit, 10-bit, 12-bit
• Audio:
  • HDMI IN & HDBaseT OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
  • Bit Rate: up to 24-bit
• Power:
  • Consumption: 85.7 W
  • Idle Consumption: 18.4 W
• Dimension (HxWxD): 1.73" x 17.24" x 10" (44 x 438 x 254 mm)
• Weight: 7.05 lbs (3.02 kg)
