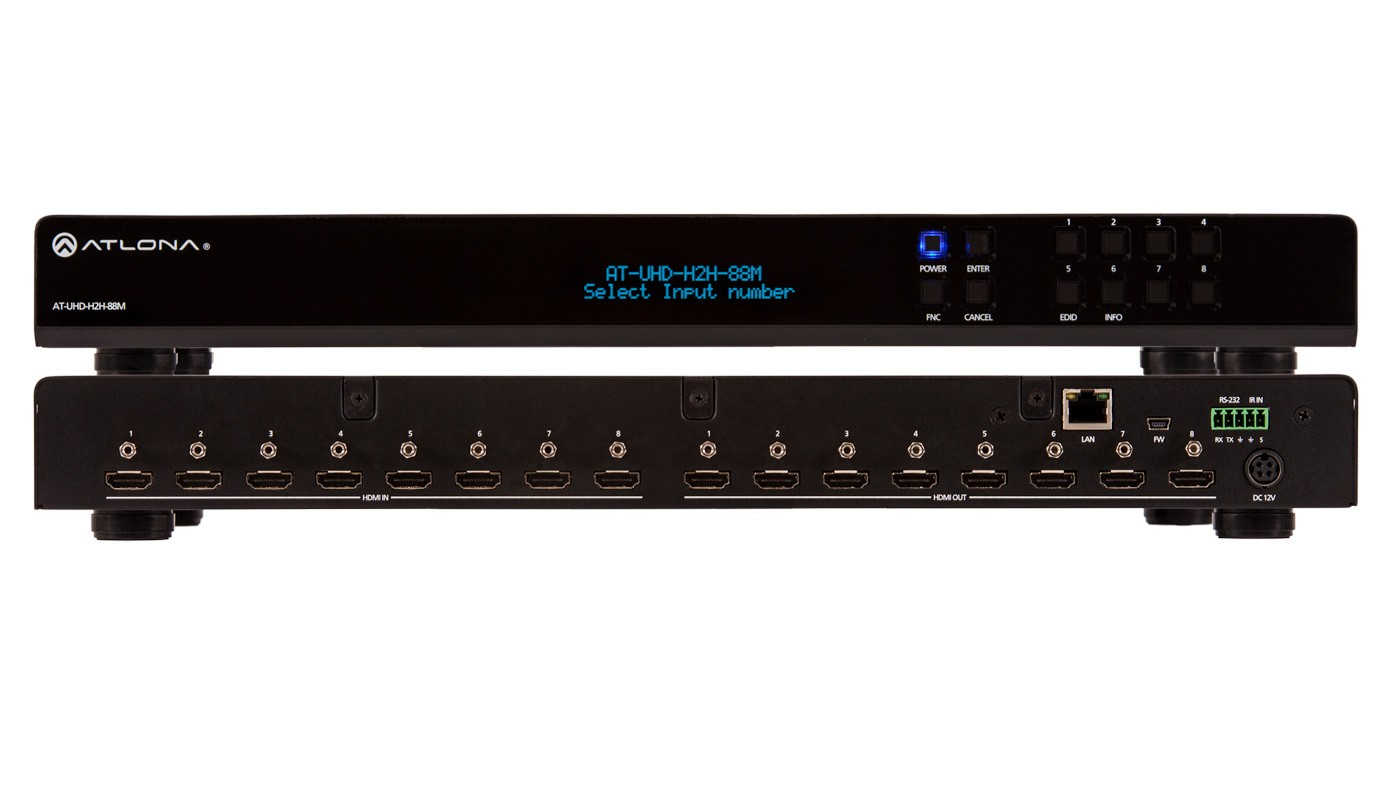

Atlona Technologies AT-UHD-H2H-88M
8x8 4K/UHD HDMI to HDMI Matrix


The Atlona Technologies' AT-UHD-H2H-88M is an HDMI matrix switcher with advanced control capability.
Learn More

Call for price! Not available online.

Related Products

The Atlona Technologies' AT-UHD-H2H-88M is an HDMI matrix switcher with advanced control capability. It routes any 4K/UHD @ 60Hz (4:2:0, 8-bit) source to any 4K/UHD destination with full HDCP 2.2 content protection. For ease of setup and management, the matrix includes a GUI-based integrated web server for HDCP/EDID reporting, system configuration, and device status. The WebGUI uses an easy, intuitive drop down menu for fast setup and troubleshooting in the field. Additional control capabilities include I/O routing from tablets, smart phones or PCs. The matrix is control system-friendly and integrates with any TCP/IP, RS-232, or IR-based control system. Flexible control capability is also provided by the supplied IR remote and front panel controls. The AT-UHD-H2H-88M is ideal for professional HDMI signal routing in residential and commercial applications were a number of AV sources must be shared throughout eight zones to reduce the installed equipment footprint and to reduce the costs associated with multiple, redundant devices. The AT-UHD-H2H-88M features a 1U, rack-mountable enclosure with an external, international power supply.

Altona AT-UHD-H2H-88M Features:

  • 8-input/8-output HDMI matrix:
    • Each of the eight sources can be simultaneously distributed to all eight zones
    • Reduces redundant source equipment and integration costs; eliminates the space needed for source equipment within the zone
  • 4K/UHD capability with HDCP 2.2 copy protection:
    • Compatible with ultra-high definition PCs and other sources and displays and adheres to latest content protection specification
    • Future proofs AV systems in preparation for technology improvements, 4K/UHD streaming services and playback devices
  • Integrated web server with WebGUI:
    • Provides HDCP/EDID reporting, system configuration, and device status plus I/O routing from tablets, smart phones or PCs
    • Speeds setup and troubleshooting in the field; simplifies remote management and control
  • TCP/IP, RS-232, and IR, control:
    • Flexible control options compatible with any 3rd-party control system
    • Reduces integration time and costs
  • Fast, blink-free input switching:
    • Input selection changes occur in less than three seconds with no loss of signal (video blinking) to other zones; Eliminates long wait times caused by handshaking and content protection key validation
    • Ensures an uninterrupted viewing experience for all zones
  • Rack mountable 1U, full rack width enclosure:
    • Installs easily in rack mounted systems with included 19” rack mount brackets
    • Reduces space needed for installation

Altona AT-UHD-H2H-88M Specifications:

  • Resolution:
    • Video:
      • 4096 x 2160 at 24/25/50/60Hz
      • 3840 x 2160 at 24/25/30/50/60Hz
      • 2048x1080p
      • 180p at 23.98/24/25/29.97/30/50/59.94/60Hz
      • 1080i at 50/59.94/60Hz
      • 720p at 50/59.94/60Hz
      • 576p
      • 576i
      • 480p
      • 480i
    • VESA:
      • 2560×2048
      • 2560×1600
      • 2048×1536
      • 1920×1200
      • 1680×1050
      • 1600×1200
      • 1600×900
      • 1440×900
      • 1400×1050
      • 1366×768
      • 1360×768
      • 1280×1024
      • 1280×800
      • 1280×768
      • 1152×768
      • 1024×768
      • 800×600
      • 640×480
    • Color Space: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
    • Color Depth: 8-bit, 10-bit, 12-bit
  • Audio:
    • HDMI IN/OUT:
      • PCM 2Ch
      • LPCM 5.1
      • LPCM 7.1
      • Dolby Digital
      • DTS 5.1
      • Dolby Digital+
      • Dolby TrueHD
      • DTS-HD Master Audio
      • Dolby Atmos
      • DTS:X
    • Sample Rate:
      • 32kHz
      • 44.1kHz
      • 48kHz
      • 88.2kHz
      • 96kHz
      • 176.4kHz
      • 192kHz
    • Bit Rate: up to 24-bit
  • Distance:
    • HDMI IN/OUT @ 4K: up to 5m (up to 15ft)
    • HDMI IN/OUT @ 1080p: up to 10m (up to 30ft)
  • Signal:
    • Bandwidth: 10.2 Gbps
    • CEC: No
    • HDCP: 2.2
  • Temperature:
    • Operating: 32°F-104°F (0°C-40°C)
    • Storage: -40°F-158°F (-40°C-70°C)
    • Ambient: 32°F-158°F (0°C to 70°C)
    • Humidity: 20 to 90% non-condensing
  • Power:
    • Consumption: 25W
    • Idle Consumption: 5W
    • Supply:
      • Input: AC100~240 VAC 50/60Hz
      • Output: 12V/5A
  • Dimension (HxWxD): 2.17"x 17.31"x 10" (55.22mm x439.74mm x 254mm)
    • With feet: 1.74" x 19" x 10" (44.20mm x 482.60mm x 254mm)
    • Rack Unit: 1U
  • Weight:
    • Unit: 6.60lbs (2.99kg)
  • Certification:
    • Power Supply: CE, TUV, RCM, UL, CCC, PSE, AS, AU-GEMS, BSMI, CB, DOE, EMC, FCC
    • Unit: CE
