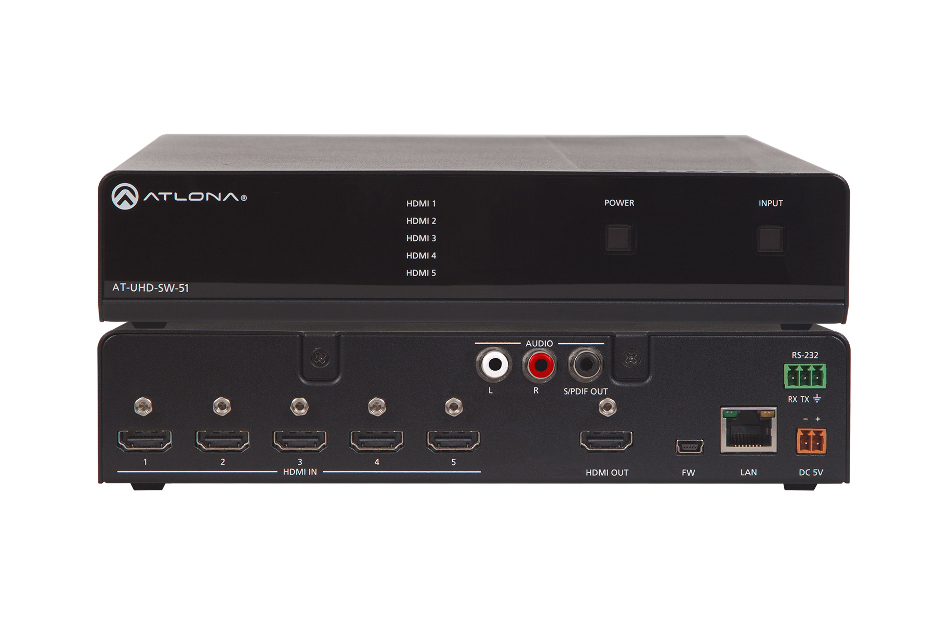

Atlona Technologies AT-UHD-SW-51
4K/UHD 5 Input HDMI Switcher with Auto-Switching

OUR PART #:  AT-UHD-SW-51

The Atlona Technologies AT-UHD-SW-51 is a 5x1 HDMI switcher with auto-switching and advanced control capability.
Learn More
Our Price: $499.99
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Atlona Technologies AT-UHD-SW-51
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atlona Technologies AT-UHD-SW-51 is a 5x1 HDMI switcher with auto-switching and advanced control capability. The switcher supports 4K/UHD @ 60 Hz, 4:2:0; offers 3D pass-through, and 10.2 Gbps bandwidth. With front panel buttons and IR control, it can be a standalone switcher. Designed as a cost-effective, easy to install solution, the switcher offers a web-based GUI for easy set-up and management of EDID and HDCP. Additional control options include auto-switching, front panel selector, and compatibility with RS-232 or TCP/IP-based control systems. Audio features include de-embedding of PCI audio over HDMI to either S/PDIF or two-channel analog audio outputs; pass-through of Dolby TrueHD and DTS-HD Master Audio; plus an Audio Return Channel feed to the S/PDIF output from the HDMI display. The compact, 1U, half-rack width enclosure is easily installed in rack mounted systems with the optional 19" rack-mount brackets. Two units can be mounted side-by-side.

The AT-UHD-SW 51 adds 4K/UHD performance to Atlona's HDMI small switcher family to meet the needs of displays and sources with resolutions beyond 1080p. In addition, the switcher offers advanced audio features. Auto-switch, the additional TCP/IP control flexibility, and overall control system neutrality give integrators a significant time savings during installation.

Atlona Technologies AT-UHD-SW-51 Features:

  • 4K/UHD capability:
    • Compatible with Ultra High Definition sources and displays
    • Supports high-resolution applications such as CAD, desktop publishing, and detailed financial reporting
  • Auto-Switching:
    • Reduces complexity or eliminates control system completely
    • Simplifies user operation
  • TCP/IP, RS-232, and IR control:
    • Flexible control options compatible with 3rd-party control systems
    • Reduces integration time and costs
  • EDID Management:
    • Manages EDID communications between source and display; allows integrators to force sources to preferred resolution
    • Ensures desired audio formats and video resolutions are provided to the AV system; eliminates the need for EDID management device
  • HDCP Management:
    • Allows non-protected material from PCs to pass to non-compliant displays and teleconference systems while protected content is not transmitted
    • HDCP compliance can be switched on/off from control systems for use with non-compliant displays, streaming devices, and codecs
    • Easy, GUI-based configuration using integrated web server:
    • Offers menu-based configuration of network settings, RS-232 settings, input switching, EDID, and HDCP management and audio
    • Allows fast configuration of internal product settings and troubleshooting from a tablet, smart phone, or PC in the field
  • ARC - Audio Return Channel:
    • Audio is returned from the remote display via HDMI to the S/PDIF or analog audio outputs
    • Ideal for smart TVs with video streaming capabilities
  • Multi-channel audio compliant:
    • Supports PCM, LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS Digital Surround, and DTS-HD Master Audior
    • Allows any multi-channel audio stream to be used within a professional audio system
  • Rack-mountable, 1U, half rack width enclosure:
    • Installs easily in rack-mounted systems with optional 19" rack-mount brackets
    • Simplifies installations; allows two units to be mounted together
    • The AT-UHD-SW 51 adds 4K/UHD performance to Atlona's HDMI small switcher family to meet the needs of displays and sources with resolutions beyond 1080p. In addition, the switcher offers advanced audio features. Auto-switch, the additional TCP/IP control flexibility, and overall control system neutrality give integrators a significant time savings during installation.
  • The AT-UHD-SW-51 is ideal for use in applicationswhere:
    • 4K video switching must be added to AV systems with upgraded 4K displays and sources that were designed around a high end audio processor/switcher limited to 1080p.
    • Installers need a no-nonsense, cost-effective 5x1 HDMI switcher with 4K/UHD support for easily-managed applications with multiple sources and one display for corporate and residential applications that will work with any control system

Atlona Technologies AT-UHD-SW-51 Specifications:

  • Resolution:
    • Video:  4096x2160 @ 24/25/30/50/60Hz, 3840x2160 @ 24/25/30/50/60Hz, 2048x1080p, 1080p @ 23.98/24/25/29.97/30/50/59.94/60Hz, 1080i @ 50/59.94/60Hz, 720p @ 50/59.94/60Hz, 576p, 576i, 480p, 480i
    • VESA:  2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
    • Colorspace:  YUV, RGB
    • Chroma Subsampling:  4:4:4, 4:2:2, 4:2:0
    • Color Depth:  8-bit, 10-bit, 12-bit
  • Audio:
    • HDMI IN/OUT:  PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
    • S/PDIF:  PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+
    • L/R Audio:  Maximum analog output: balanced +5dBu @ 0dBfs, 2Ch PCM only
    • Sample Rate:  32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
  • Distance:
    • HDMI IN/OUT @ 4K up to 5 meters
    • HDMI IN/OUT @ 1080p up to 10 meters
  • Signal:
    • Bandwidth 10.2 Gbps
    • CEC Pass through
    • HDCP Switchable - Compliant/Non compliant
  • Connectors:
    • Firmware:  Mini-B USB
    • HDMI:  Type A
    • Digital Audio:  S/PDIF
    • Analog Audio:  L/R RCA
    • LAN:  RJ45 (8P8C), TCP/IP control
    • RS-232:  3-pin captive screw
    • Power:  2-pin, 5V captive screw
  • Temperature:
    • Operating:  32°F to 122°F
    • Storage:  -4°F to 140°F
    • Humidity:  20 to 90% non-condensing
  • Power:
    • Consumption:  5.94W
    • Idle Consumption:  1.57W
    • Supply Input:  AC100~240V 50/60Hz; Output: DC 5V/3.6A
  • Dimensions (HxWxD):  1.73" x 8.75" x 10.28" (44mm x 222.25 mm x 261 mm)
  • Rack Unit:  1/2 rack, 1RU
  • Weight:  1.40lbs
  • Certification:
    • Power Supply: CE, FCC, cULus, RCM
    • Unit: CE, FCC
