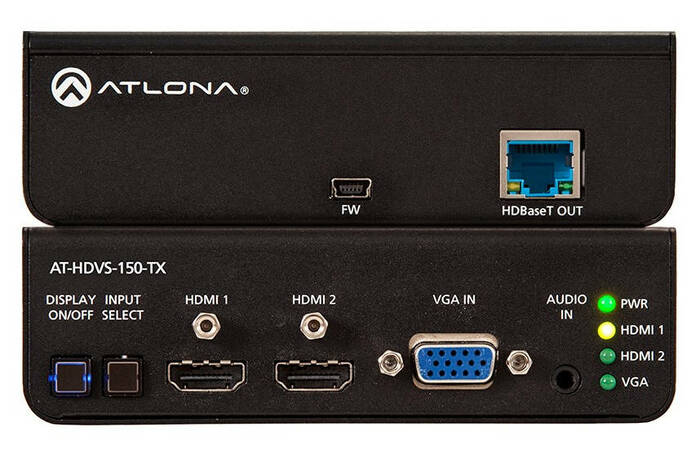

Atlona Technologies AT-HDVS-150-TX
Three Input HDMI/VGA Switcher with HDBaseT Output

OUR PART #:  AT-HDVS-150-TX

The Atlona Technologies AT-HDVS-150-TX is a 3×1 Switcher for HDMI and VGA Inputs with HDBaseT Output. It features two HDMI inputs plus a VGA input with 3.5mm audio connector.
Learn More

Call for price! Not available online.

Similar Products

The Atlona Technologies AT-HDVS-150-TX is a 3×1 Switcher for HDMI and VGA Inputs with HDBaseT Output. It features two HDMI inputs plus a VGA input with 3.5mm audio connector. Designed as a remote input device for the AT-UHD-CLSO-824 matrix switcher, the AT-HDVS-150-TX combines the benefits of a switcher with built-in auto-switching and the advantages of long-distance HDBaseT signal extension over a single cable. HDMI signals up to 4K/UHD @ 60Hz with embedded audio, VGA input signals up to 1920×1200 video, and control signals can be extended up to 230 feet (70 meters). The switcher enables auto display on/off, auto-switching, along with other features. The switcher receives power from the AT-UHD-CLSO-824 using Power over Ethernet. The AT-HDVS-150-TX is ideal for long distance transmission and display control in corporate or educational settings using analog and digital sources.

Remote Input Extension:

The Atlona AT-HDVS-150-TX switcher expands the input capabilities of the AT-UHD-CLSO-824. Each remote switcher provides input access for up to three devices with controls for input selection and can control the power state of a display or projector when used with a third party control system. The HDVS series is designed to smooth the transition from analog to digital displays, allowing advanced HDMI display devices to be used with legacy VGA sources. The series also adds the simplicity and performance of HDBaseT technology to eliminate multiple cable runs and signal degradation that can occur with long transmission lines. Cost-effective and easy-to-terminate category cable provides additional integration benefits.

Altona Technologies 3-Input Switcher Features:

  • 3×1 HDBaseT switcher:
    • Features two HDMI inputs plus a VGA input with 3.5mm audio connector
    • Allows advanced HDMI display devices to be used with legacy VGA sources
  • Long distance HDMI extension:
    • Transmits AV signals up to 230 ft (70m) @ 1080P and 130 ft. (40m) @ 4K/UHD using CAT6a/7 cable
    • Uses easy-to-integrate category cable for low-cost, reliable system installation
  • Automatic display control:
    • Automatically changes projector power state based on active or standby mode of scaler. Control signals transmitted via RS-232
    • Eliminates need for complex control system in small AV systems. Enables display control with AT-UHD-CLSO-824
  • Automatic input selection using video detection technology:
    • Selects active input when sources are connected or if there is a change in source power status
    • Eliminates need for complex control system in AV systems
  • Front panel input select button:
    • Overrides auto-switching when two active sources are present
    • Simple manual control allows presenter to maintain control of AV system
  • Front panel display on/off control:
    • Remotely controls display power state; provides alternate ‘Display Mute’ mode
    • Eliminates need for manual operation of display or use of IR remote control

Altona Technologies 3-Input Switcher Specifications:

  • Resolution:
    • Video: 4096×2160 @ 24/25/30/50/60Hz, 3840×2160 @ 24/25/30/50/60Hz, 2048x1080p,
      1080p @ 23.98/24/25/29.97/30/50/59.94/60Hz, 1080i @ 50/59.94/60Hz, 720p @ 50/59.94/60Hz, 576p, 576i, 480p, 480i
    • VESA: 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
    • Color Space: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0*
    • Color Depth: 8-bit, 10-bit, 12-bit
  • Audio:
    • Analog IN: PCM 2Ch
    • HDMI IN & HDBaseT OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Bit Rate: up to 24-bit
  • Distance:
    • CAT5e/6 @ 4K: up to 115 feet (up to 35 meters)
    • CAT6a/7 @ 4K: up to 130 feet (up to 40 meters)
    • CAT5e/6 @ 1080p: up to 197 feet (up to 60 meters)
    • CAT6a/7 @ 1080p: up to 230 feet (up to 70 meters)
    • HDMI IN/OUT @ 4K: up to 15 feet (up to 5 meters)
    • HDMI IN/OUT @ 1080p: up to 30 feet (up to 10 meters)
  • Signal:
    • Bandwidth: 10.2 Gbps
    • CEC: Yes
    • HDCP: 1.4
  • Temperature:
    • Operating: 32°F to 122°F (0°C to 50°C)
    • Storage: -4°F to 140°F (-20°C to 60°C)
    • Humidity: 20 to 90% non-condensing
  • Power:
    • Consumption: 18.7W (when paired)
  • Dimension (HxWxD): 1.5" x 5" x 4.02" (8mm x 127mm x 102mm)
  • Weight: 5.16lbs(2.34kg)
  • Certification: CE, FCC
