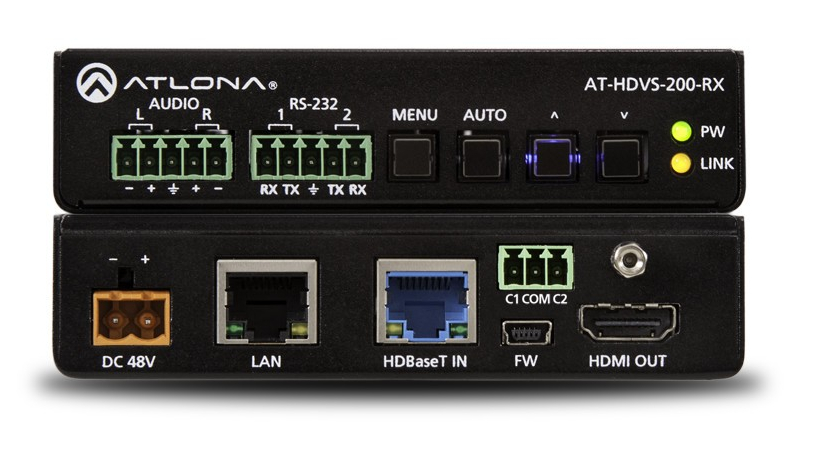

Atlona Technologies AT-HDVS-200-RX
HDBaseT Scaler with HDMI and Analog Audio Outputs


Altona Technologies' AT-HDVS-200-RX is an HDBaseT scaler with HDMI and analog audio outputs.
Learn More

Call for price! Not available online.

Related Products

Altona Technologies' AT-HDVS-200-RX is an HDBaseT scaler with HDMI and analog audio outputs. The AT-HDVS-200-RX features an HDMI output with balanced analog audio de-embedding and display control using CEC, IP, or RS-232. Altona's AT-HDVS-200-RX combines the benefits of an extended-distance HDBaseT receiver with built-in scaling and the capabilities of a control processor for simplified AV system installation and operation. When used with the AT-HDVS-200-TX switcher, it receives HDMI signals with embedded audio and control signals at distances up to 328 feet (100 meters). The switcher/scaler pair enables automatic display control, automatic input selection, volume adjustment, or optional third-party control. The AT-HDVS-200-RX supplies power to the AT-HDVS-200-TX switcher via Power over Ethernet and together they create a standalone AV switching and control system with scaling for huddle rooms and classrooms.

Altona AT-HDVS-200-RX HDBaseT Scaler Includes:

  • User guide
  • Mounting brackets

Altona AT-HDVS-200-RX HDBaseT Scaler Features:

  • Scaler with HDMI output and input resolution control:
    • Scales output video signals up to 1080p/60Hz and 1920x1200; Choose preferred input resolution from 800×600 to 1920×1200
    • Assures compatibility of VGA and HDMI sources with the display’s native resolution
  • Automatic display control when used withAT-HDVS-200-TX:
    • Automatically changes projector power state based on active or standby mode of scaler. Control signals transmitted via IP, RS-232, or CEC
    • Eliminates need for complex control system in small AV systems
  • Ethernet enabled, HDBaseT extension:
    • Receives IP and HDMI signals up to 328 ft. (100m) at 1080p
    • Uses easy-to-integrate category cable for low-cost, reliable system installation
  • Dual TCP/IP and RS-232 control ports:
    • Flexible control options for compatibility with third-party control systems. Dual RS-232 control ports allow connection to both display and control system
    • Reduces integration time and costs
  • Volume Control:
    • Volume up and volume down button adjust output level to sound system
    • Alternatively send RS-232 or TCP/IP commands to external control device
  • Contact closure for screen control or display liftcontrol:
    • Dry contact closure triggers electronic screen or lift operation based on active or standby mode of scaler
    • Automates screen or lift activation at system power-up; reduces steps for operators.
  • Easy, GUI-based configuration using integrated webserver:
    • Offers manual mode programming, CEC display control set-up, and status reporting of EDID and HDCP
    • Allows fast configuration of internal product settings and troubleshooting from a tablet, smart phone or PC in the field
  • Power over Ethernet for AT-HDVS-200-TX:
    • Industry standard IEEE 802.3af PoE supplied by the receiver over HDBaseT
    • No local AC outlet required at the AT-HDVS-200-TX switcher; saves time and integration costs
  • Award-winning 10 year limited product warranty
    • Ensures long-term product reliability and performance in residential and commercial systems
    • Specify, purchase, and install with confidence

Altona AT-HDVS-200-RX HDBaseT Scaler Specifications:

  • Resolution:
    • Video: 1080p @ 23.98/24/25/29.97/30/50/59.94/60Hz, 1080i @ 50/59.94/60Hz, 720p @ 50/59.94/60Hz, 576p, 576i, 480p, 480i
    • VESA: 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768,
      1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
    • Color Space: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
    • Color Depth: 8-bit, 10-bit, 12-bit
  • Audio:
    • Analog OUT: Compatible with PCM 2Ch de-embedding only
    • HDMI OUT & HDBaseT IN: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Bit Rate: up to 24-bit
  • Distance:
    • CAT5e/6 @ 1080p: up to 328 feet (up to 100 meters)
    • HDMI IN/OUT @ 1080p: up to 30 feet (up to 10 meters)
  • Signal:
    • Bandwidth: 6.75 Gbps
    • CEC: Yes
    • HDCP: 1.4
  • Temperature:
    • Operating: 32°F to 122°F (0°C to 50°C)
    • Storage: -4°F to 140°F (-20°C to 60°C)
    • Humidity: 20 to 90% non-condensing
  • Dimension (HxWxD): 1.5" x 5" x 4.02" (38 x 127 x 102mm)
  • Certification: CE, FCC
