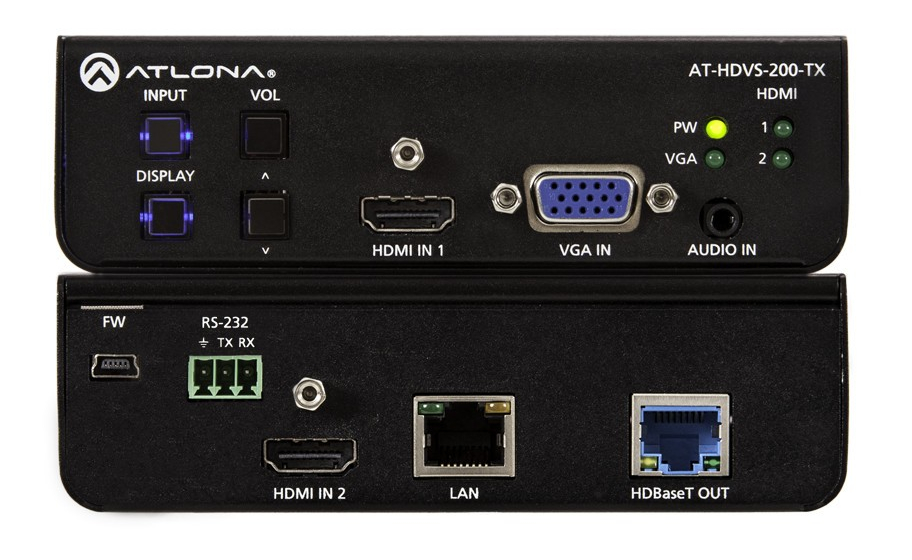

Atlona Technologies AT-HDVS-200-TX
3x1 HDBaseT Switcher for HDMI and VGA Inputs

OUR PART #:  AT-HDVS-200-TX

Altona Technologies' AT-HDVS-200-TX is a 3×1 switcher for HDMI and VGA inputs with HDBaseT output.
Learn More

Call for price! Not available online.

Similar Products

Altona Technologies' AT-HDVS-200-TX is a 3×1 switcher for HDMI and VGA inputs with HDBaseT output. The AT-HDVS-200-TX features two HDMI inputs, a VGA input, and an always on 3.5mm audio connector. Altona's AT-HDVS-200-TX can be the central component of a small, automated AV system. Automatic display control turns on the display automatically whenever a source is connected. When the source is removed, the display is turned off. Volume is controlled by using the front panel buttons. Automatic input selection on the AT-HDVS-200-TX works by sensing the presence of any video signal. With automatic input selection, manual control systems can be eliminated.

The AT-HDVS-200-TX combines the benefits of a switcher and the advantages of Ethernet-enabled HDBaseT signal transmission over a single cable. The switcher enables input selection from the front panel, RS-232, or TCP/IP commands. HDMI signals up to 4K/UHD at 60Hz with embedded audio, VGA input signals up to 1920×1200, and control signals can be extended up to 328 feet (100 meters).

When used with the HDVS-200-RX system performance is limited to 1080p. The AT-HDVS-200-TX receives power from the AT-HDVS-200-RX scaler via Power over Ethernet. Together they create a standalone AV switching and control system with scaling for classrooms and huddle rooms.

Altona AT-HDVS-200-TX Switcher Includes:

  • User guide
  • Mounting brackets

Altona AT-HDVS-200-TX Switcher Features:

  • 3×1 HDBaseT switcher:
    • Features two HDMI inputs plus a VGA input with 3.5mm audio connector
    • Allows advanced HDMI display devices to be used with legacy VGA sources
  • Automatic display control:
    • Automatically changes projector power state based on active or standby mode of scaler. Control signals transmitted via CEC, IP or RS-232.
    • Eliminates need for complex control system in AV systems. Enables display and volume control with AT-UHD-CLSO-824 or AT-HDVS-200-RX. CEC enables control of low-cost consumer displays.
  • Automatic input selection using video detectiontechnology:
    • Selects active input when sources are connected
    • Eliminates need for complex control system in AV systems
  • TCP/IP and RS-232 control of switcher:
    • Flexible control options for compatibility with third-party control systems. RS-232 controlled from HDBaseT connection
    • Reduces integration time and costs
  • Ethernet enabled, HDBaseT extension:
    • Transmits IP and AV signals up to 328 ft. (100m)
    • Uses easy-to-integrate category cable for low-cost, reliable system installation
  • Front panel input select button:
    • Overrides auto-switching when two active sources are present
    • Simple manual control allows presenter to maintain control of AV system
  • Front panel display on/off control:
    • Remotely controls display power state; provides alternate ‘Display Mute’ mode
    • Eliminates need for manual operation of display or use of IR remote control
  • Front panel volume control:
    • Remotely controls audio volume using TCP/IP or RS-232; provides ‘Mute’ mode
    • Eliminates need for manual operation of display or use of IR remote control
  • Works with AMS:
    • This IP-controllable product can be remotely managed by the Atlona Management System software
    • Integrates product configuration, management, and updates to reduce installation time and enable remote support
  • Award-winning 10 year limited product warranty
    • Ensures long-term product reliability and performance in residential and commercial systems
    • Specify, purchase, and install with confidence

Altona AT-HDVS-200-TX Switcher Specifications:

  • Resolution:
    • Video: 4096×2160 @ 24/25/30/50/60Hz, 3840×2160 @ 24/25/30/50/60Hz, 2048x1080p, 1080p @ 23.98/24/25/29.97/30/50/59.94/60Hz, 1080i @ 50/59.94/60Hz, 720p @ 50/59.94/60Hz, 576p, 576i, 480p, 480i
    • VESA: 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
    • Color Space: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
    • Color Depth: 8-bit, 10-bit, 12-bit
  • Audio:
    • Analog IN: PCM 2Ch
    • HDMI IN & HDBaseT OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Bit Rate: up to 24-bit
  • Distance:
    • CAT5e/6 @ 4K: up to 230 feet (up to 70 meters)
    • CAT5e/6 @ 1080p: up to 328 feet (up to 100 meters)
    • CAT6a/7 @ 4K: up to 328 feet (up to 100 meters)
    • HDMI IN/OUT @ 4K: up to 15 feet (up to 5 meters)
    • HDMI IN/OUT @ 1080p: up to 30 feet (up to 10 meters)
  • Signal:
    • Bandwidth: 10.2 Gbps
    • CEC: Yes
    • HDCP: 1.4
  • Temperature:
    • Operating: 32°F to 122°F (0°C to 50°C)
    • Storage: -4°F to 140°F (-20°C to 60°C)
    • Humidity: 20 to 90% non-condensing
  • Power Consumption: 30W (when paired)
  • Dimension (H x W x D): 1.5" x 5" x 4.02" (38 x 127 x102mm)
  • Weight: 0.64 lbs (0.29 kg)
  • Certification: CE, FCC
