Jensen Transformers MEDIA-2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

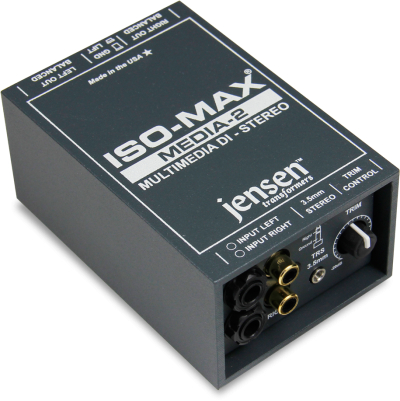

The Iso-Max Media-2 is a multi-purpose stereo direct box and isolator designed to interface all types of unbalanced sources to the PA system while enabling signals to be driven distances to 100 meters (300’) or more without high frequency loss or introducing noise into the signal path.

The design begins with a rugged extruded aluminum enclosure and steel slide-in inner tray with recessed zones at each end to protect the switches and connectors. At one end, stereo ¼” inputs for instruments, RCA inputs for consumer audio devices and a 3.5mm mini TRS for laptops are wired in parallel to act as thru-puts. A variable trim decreases input sensitivity for greater signal handling when interfacing line level sources. At the other end, two XLR male outputs with ground lift makes for easy connection. As the Iso-Max Media-2 is completely passive, no power is required.

Inside, two high-performance Jensen JT-DB-EPC transformers delivers exceptional audio and provides galvanic isolation to eliminate ground loops as it passively lowers the impedance and performs the balancing. A 22 k? input impedance optimizes signal-to-noise for consumer-type products and is supplemented with internal Faraday shielding to protect against interference from RF. An external MuMETAL® can further protects the sensitive internal workings of the transformer to ensure a quiet interference-free performance even when surrounded by magnetic fields from amplifiers, power supplies and stage light dimmers.

With over +22 dB of signal handling capacity, the Media-2 direct box gracefully handles extreme signals such as those produced by high output digital sources while providing instant access to level adjustments during hectic shows. These features combine to make the Media-2 the ideal choice for multi-media technicians and presenters.

Jensen Transformers Media-2 Features:

  • Converts unbalanced instrument and line level signals to balanced mic level
  • Eliminates hum and buzz caused by ground loops
  • Ruler flat frequency response from 10 Hz to 100 kHz
  • Features variable input trim for quick adjustments on stage
