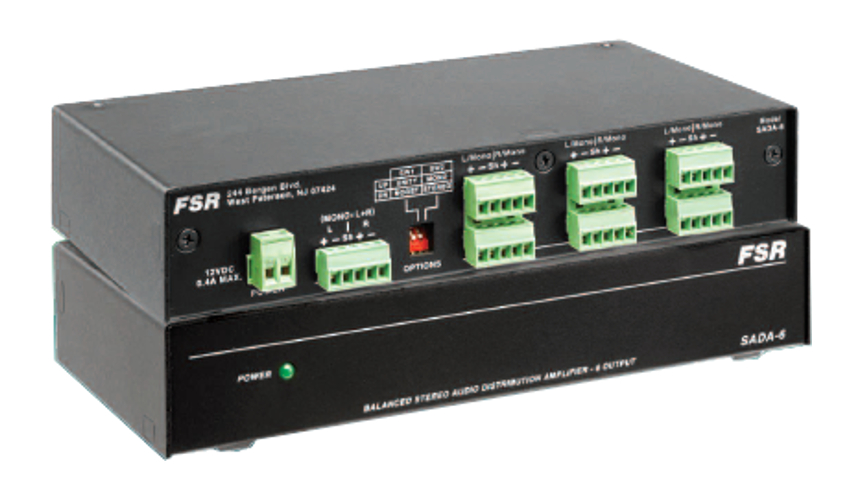

FSR, Inc SADA-6
1x6 Stereo or 1x12 Mono Audio Distribution Amplifier

OUR PART #:  SADA-6

The FSR, Inc. SADA-6 is a one input, six output stereo distribution amplifier. They can be configured for stereo or mono applications with the flip of a switch.
Learn More
Our Price: $272.09
List Price: $299.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

FSR, Inc SADA-6
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The FSR, Inc. SADA-6 is a one input, six output stereo distribution amplifier. They can be configured for stereo or mono applications with the flip of a switch. The SADA-6 incorporates a unity/boost setting that can effectively compensate for varying input signal levels handling a variety of audio sources.

The SADA-6 is a professional quality DA accepting balanced or unbalanced inputs and outputs. A unique feature of the SADA-6 is the four configurations available. The input output arrangement can be configured for: 1X6 stereo, 2- 1X6 mono’s, a 1X12 mono or a 1 stereo into 12 mono audio distribution. The SADA-6 includes a power supply.

These unit are ideal for companion operation with any of FSR's video DA's such as the CVD and SVD models.

FSR Inc. SADA-6 Features:

  • Individually buffered and amplified outputs
  • Input Boost switch (0 or +14dB)
  • Outputs are short circuit protected
  • Full metal enclosure
  • UL &CSA approved external power supply included
  • Rack mountable with optional rack mount (FSR RK-1)
  • Configurable for multiple output arrangements
  • Half rack size allows dual mounting option
  • Balanced inputs and outputs
  • May be operated in unbalanced mode

FSR Inc. SADA-6 Specifications:

  • Audio Input:
    • Number/type: 1 stereo balanced or unbalanced
    • Connectors: 1 pluggable screw terminal 5 conductor
    • Impedance: 20K ohms DC coupled balanced, 10K Ohms DC coupled unbalanced
    • Max Input level: +18dBm unity 12dBm boost (balanced orunbalanced)
  • Audio Throughput:
    • Gain: Unity Gain, +14dB with Boost set “on”
    • Frequency response: 20 Hz to 20 kHz (+/-0.05 dB)
    • THD + Noise: 0.02% @ 1 KHz at rated maximum output
    • S/N: >90 dB
    • CMRR: >50 dB
  • Audio Output:
    • Number/type: 6 Electronic balanced output
    • Connectors: 6, five-position pluggable screw terminals
    • Impedance: 50 ohm balanced output
    • Max Output level: +24 dBm into high impedance connection or +22dBm into 600 Ohms
  • General:
    • Power connector: Pluggable 2 conductor
    • Power Supply: 12VDC @ 400mA provided on the power supply line
    • Enclosure type/size: Metal
    • Shipping weight: 2 lbs.
