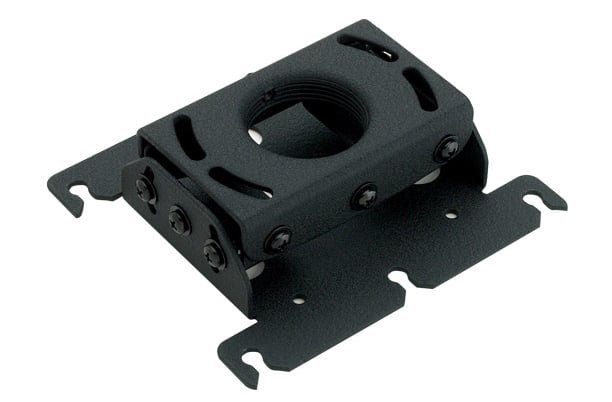

Chief RPA349 Custom RPA Series Projector Mount for Panasonic Projectors

The RPA349 Custom RPA Series Projector Mount from Chief is specifically designed for the Panasonic PT-EW550, PT-EW650, PT-EX520, PT-EX620, PT-EZ590, PT-FW530, PT-FX500, and PT-FZ570 projectors.

Chief Manufacturing RPA349 Custom Projector Mount Features:

• Independent roll, pitch and yaw for quick and precise projector image registration
• Quick projector connect and disconnect with convenient lamp and filter access on most projectors
• Maintains registration when disconnected and doesn't affect preset adjustments
• All-Points™ Security provides exclusive steel-into-steel locking hardware at all connection points to protect against theft
• Multiple installation options: flush mount to ceiling, mount with 0.25" threaded rods, or mount with 1.5" NPT threaded extension column
• Integrated cable management through top of mount without additional accessories

Chief Manufacturing RPA349 Custom Projector Mount Specifications:

• Certifications: UL Listed
• Color: Black
• Adjustments:
  • Roll: 4º
  • Pitch: 25º
  • Yaw: 360º, 12º on flush mount
• Product Weight: 5 lbs (2.27 kg)
• Weight Capacity: 50 lbs (22.7 kg)
