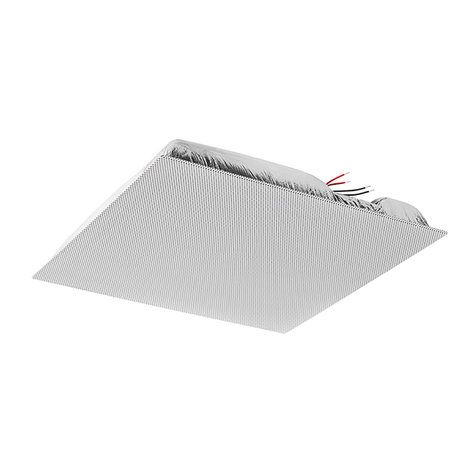

Quam UL22/25 24"x24" Tile Replacement Loudspeaker, 8" Fire-Resistant Speaker, 25V Transformer, Listed UL 1480-F and 2043

The Quam UL22/25 is a complete UL Listed (UL 1480-F and UL 2043), shallow depth, lightweight, tile replacement, fire-protective signaling device with an 8C10PAFR - 8” O.D. loudspeaker, 10 oz. magnet, fire retardant components and a 4W-25V rotary select transformer. Integral enclosure is 1,412 CID molded fiber. Grille is perforated steel with five (5) seismic tie-off points in a white powder coat finish. Line supervision capacitor is included. No assembly required.

Applications:

Intended for indoor use.

Program Material – Signal tones and voice

Installation – In a 2' x 2' or 2' x 4' wide ceiling tile grid

Includes:

• Loudspeaker – 8C10PAFR
• Transformer – 25V 4W-5 tap Rotary Select (4W, 2W, 1W, 0.50W,0.25W

Specifications:

• Sound Pressure dB-SPL@ 10 ft. per Tap: 1/4 = 78.7, 1/2 = 80.7, 1 = 81.5, 2 = 84.3, 4 = 87.4
• Loudspeaker Power Rating: 20W RMS, EIA 426A Standard
• Magnet Type & Weight: BeFe Ceramic, 10oz. Nominal
• Frequency Response: 60Hz - 17kHz EIA 426A Standard
• Nominal Coverage Angle: 100° Included Angle, -6dB / 2kHz, Half space
• Audio Connection Common : Dual, color-coded leads, pre-cut
