Yamaha TF Rack Mixer Free Dante NY64-D Card Offer
If You Purchase Your TF Rack From Full Compass Before January 31st You Will Receive A FREE NY64-D Dante Card From Yamaha After Online Rebate!... read more

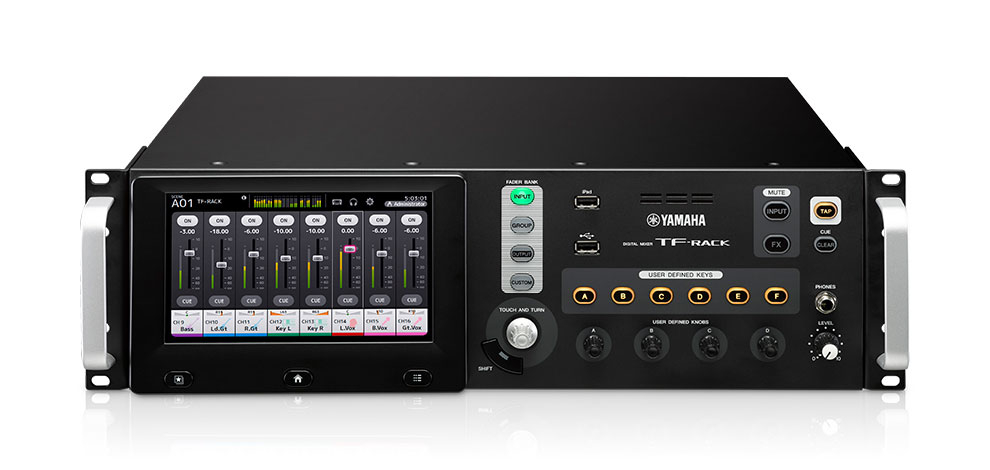

Yamaha TF-RACK
Rackmount Digital Mixer

OUR PART #  TF-RACK

Our Price: $1,799.99
List Price: $2,100.00
You save 14%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Yamaha TF-RACK is a compact rack-mount version of the TF Series digital mixing consoles, offering the same levels of performance and groundbreaking operability.

Yamaha TF-RACK Features:

  • 16 mic/line + 1 stereo line Input, 16-Output. Intuitive and smooth all-in-one rack-style digital mixer
  • Scene memory that stores mix settings for instant recall
  • 1-knob COMP™ & 1-knob EQ™: One Knob to Dial In the Ideal Sound
  • QuickPro Presets™ Provide Instant Access to Pro Sound Setups
  • A Natural Sound Foundation with Extra Creative Freedom
  • Recallable D-PRE™ Microphone Preamplifiers
  • 8 Powerful Processing/Effect Units and More
  • Applications that Work Seamlessly with the Console
  • TF Editor Facilitates Offline Editing Plus Showtime Control
  • TF StageMix™ for Wireless Mixing
  • Personal Monitoring with MonitorMix
  • Intuitive User Interface Optimized for Touch Panel Operation
  • Touch Operation for Intimate Control
  • Touch & Turn Knob Offers Extra Control Precision
  • Versatile Connectivity for a Wide Range of Applications

Yamaha TF-RACK Specifications:

  • Sampling frequency rate:
    • Internal: 48 kHz
  • Signal delay: Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
  • Fader: Resolution = 10-bit, +10 dB to –138 dB, –8 dB all faders
  • Total harmonic distortion: Less than 0.05% 20 Hz–20 kHz @ +4 dBu into 600 Ohm, INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter @ 80 kHz)
  • Frequency response: +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @ 1kHz, INPUT to OMNI OUT
  • Dynamic range: 110 dB typ., DA Converter, 108 dB typ., INPUT to OMNI OUT, Input Gain=Min.
  • Hum and noise level:
    • Equivalent input noise: –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
    • Residual output noise: –85 dBu, ST master off (Measured with an A-Weight filter)
  • Crosstalk: –100 dB (Measured with a –30 dB/octave filter @ 22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
  • Power requirements: 100–240 V 50/60 Hz
  • Power consumption: 85 W
  • Dimensions (W x H x D): 480 x 132 x 409 mm
  • Net weight: 9.2 kg (20.3lb)
  • Accessories: Quick Guide, Power Cord NUENDO LIVE (DAW Software), Rubberstoppers (4)
