Sennheiser EWD1-ME3 [RESTOCK ITEM]
Evolution Wireless D1 Series Digital Bodypack System with ME 3-II Headset Microphone

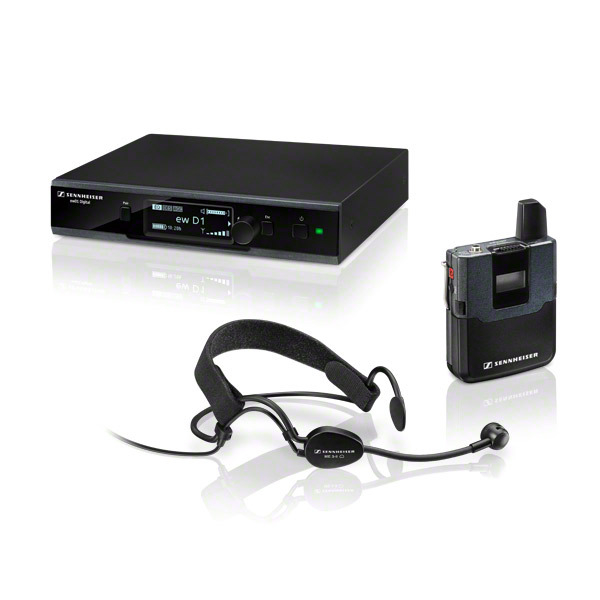

The Sennheiser EWD1-ME3 is an Evolution Wireless D1 Series digital wireless bodypack system that includes an ME 3-II headset microphone for live stage use.
Learn More
Sale Price: $586.01
List Price: $899.00
You save 35%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Sennheiser EWD1-ME3 [RESTOCK ITEM]
In Stock

Similar Products

The Sennheiser EWD1-ME3 is an Evolution Wireless D1 Series digital wireless bodypack system that includes an ME 3-II headset microphone for live stage use.

Evolution Wireless D1 is a digital sound transmission system that makes no compromises when you need to rely on sound quality or user-friendliness during gigs or live events. This microphone system can run up to 15 output lines in parallel - and independently adjust the sensitivity of every transmission. The EWD1-ME2 has up to 15 compatible channels (under optimal conditions) in license-free 2.4GHz band, with intelligent channel back-up that prevents interference and allows co-existence with Wi-fi & Bluetooth. Additionally, it comes with automatic frequency management, audio effects (EQ, de-esser, Automatic Gain Control) and an iOS/Android app for remote control and monitoring of the system.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

Sennheiser EWD1-ME3 Includes:

  • EM-D1 rackmount receiver
  • SK-D1 bodypack transmitter
  • ME 3-II Headset Microphone
  • NT-12 power supply
  • Transport case
  • User manual

Sennheiser EWD1-ME3 Features:

  • Lightweight and robust headset microphone for excellent speech intelligibility
  • Lightweight bodypack transmitter
  • Up to 15 compatible channels (under optimal conditions) in license-free 2.4 GHz band
  • Automatic frequency management
  • Prevents interference: Intelligent channel back-up allows co-existence with Wi-Fi & Bluetooth
  • Audio effects: equalizer, de-esser, automatic gain control
  • iOS & Android app for remote control and monitoring of the system
  • Sturdy metal housing

Sennheiser EWD1-ME3 Specifications:

  • Overall System:
    • Frequency Response: 20 Hz - 20 kHz
    • Dynamic Range: > 135 dB (A)
    • THD, Total Harmonic Distortion: typ. < 0,1 %
    • Audio Sampling: 24 bit/48 kHz
    • Signal-to-Noise Ratio: >/= 105 dB (A)
    • RF Frequency Range: 2,400 to 2,483.5 MHz
    • Modulation: GFSK with back channel
    • Transmission Method: TDMA, time diversity, frequency diversity, fast switching antenna diversity
    • Latency: 3.9 ms
    • Audio Codec: APT-X Live
    • Operating Temperature: - 10 °C to +55 °C
    • Storage Temperature: - 20 °C to +70 °C (The temperature range is influenced by the battery characteristics)
  • EM-D1 Receiver:
    • Latency: Multi-frequency targets
    • RF Sensitivity: <-90 dBm
    • RF Output Power: Back channel 10 mW/100 mW (country-specific)
    • Audio Output: Mic/line level switch –24 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu
    • Low-Cut Filter: –3 dB at 120 Hz
    • Equalizer: 7-band graphic equalizer
    • Automatic Gain Control (AGC): Compression/expansion with automatic make-up gain function
    • Display: OLED
    • Connection: XLR-1/4" (6.3 mm) jack
    • Antenna Connector: 2 x Rev-SMA
    • Network Socket: RJ45
    • Network Protocol: Media Control Protocol, TCP/IP IPv4 (DHCP, Manual)/IPv6
    • Power Supply: 12 V DC hollow jack
    • Current Consumption: 350 mA
    • Weight: approx. 824 g
  • SK-D1 Bodypack Transmitter:
    • RF Output Power: Adaptive, up to 100 mW (country-specific)
    • Connection: 3.5 mm jack socket, lockable
    • Weight: approx. 85 g
    • Microphone Frequency response: 50 Hz - 20 kHz
    • Max. Input Level: 2.2 V RMS
    • Line Frequency response: 20 Hz - 20 kHz
    • Max. Input Level: 3.3 V RMS
    • Input Impedance: 1 MegaOhm
    • Input Sensitivity: Automatic sensitivity adjustment
    • Battery Specification: 2 x AA size battery (1,5V), Operating time: typ. 6 h
    • Accupack: BA 30 (Li-Ion, 3.7V), Operating time: typ. 11 h (optional accessory)
  • ME 3-II Headset Microphone:
    • Microphone: Pre-polarized condenser
    • Sensitivity: 1.6 mV/Pa
    • Pick-up Pattern: Cardioid
    • Max. Sound Pressure Level: 150 dB SPL
