Product Overview

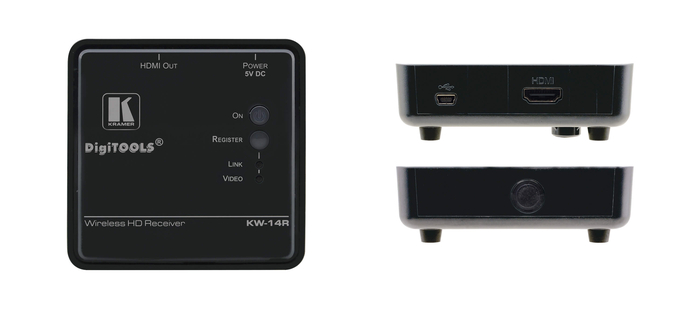

Kramer's KW-14R is a high-definition, wireless, HDMI receiver for indoor use. Up to four KW-14R receivers can receive from one KW-14T transmitter and up to three KW-14T transmitters can be paired with one KW-14R receiver.
Applications
- Meeting rooms
- Presentation and multimedia applications
- Short range video and audio distribution
Includes
- Power supply 5V
- 2 HDMI cables 2.95ft (0.9m) PN 2518–0101003
- 1 IR Emitter cable PN 3300–500135
Features
- Max. Data Rate: 6.75Gbps (2.25Gbps per graphic channel), Deep Color up to 12–bit
- Secure Link: Uses AES–128 bit encryption
- Connection Capacity: Up to four receivers can receive from one transmitter simultaneously; up to three transmitters associated with one receiver at any given time
- Transmission Range: Up to 100ft (30m) including through walls and furniture
- Automatic Frequency Selection: Selects the most suitable frequencies to prevent RF interference
- Auto EDID Adjustment: To allow multi–screen support
- IR Remote Control: Enables the OSD menu to be displayed on the output display
- OSD (On Screen Display): For simplified setup and configuration
- HDCP Compliant: HDCP sources are supported only when all connected displays support HDCP
- Zero Latency
- Automatic Sleep Mode: After three minutes when no input or link is detected
- CEC Support
Kramer KW-14R Specifications:
- Input: 1 internal antenna
- Output: 1 HDMI connector
- Video Resolution:
- Up to 1080p @60Hz
- 8, 10, or 12–bit color depth and VESA up to 1920 x 1080 @60Hz
- Formats: RGB and YCbCr digital video
- Maximum Data Rate: 6.75Gbps (2.25Gbps per channel)
- Maximum Pixel Clock: 148.5MHz
- Audio Formats: PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital Surround EX, DTS 2–channel,
- DTS Digital Surround 5.1, DTS 96/24
- Audio Rate: Digital audio from the HDMI input up to 6Mbps
- RF Communication Frequency:
- 5.19 to 5.795GHz (In Japan operation is limited to the lower bands 5.15 to 5.25GHz, in Israel operation is limited to 5.15 to 5.35GHz)
- 5.19 to 5.795GHz (In Japan and Israel operation is limited to the lower bands 5.15 to 5.25GHz)
- Transmission Power:
- Receiving Sensitivity: –65dBm
- System Latency:
- Standards:
- HDMI with Deep Color, x.v.Color™, 3D, CEC
- HDCP 2.0—works with sources that support HDCP repeater mode, DVI 1.0
- Unobstructed Transmission Range: 100ft (30m)
- Power Consumption: 5V DC 1.2A
- Operating Temperature: 32° to 104°F (0° to +40°C)
- Storage Temperature: –40° to 158°F (–40° to +70°C)
- Humidity: 10% to 90%, RHL non–condensing
- Cooling: Convection, vented
- Enclusure Type: Plastic
- Environmental Regulatory Compliance: Complies with appropriate requirements of RoHS and WEEE
- Vibration: ISTA 1A in carton (International Safe Transit Association)
- Compliance Standards: CE, c–UL, UL
- Emmission Standards: CE, C–tick, FCC Class B, ICES, VCCI, KC
- Product Dimensions (WxDxH): 3.74" x 3.74" x 1.34" (9.50cm x 9.50cm x 3.40cm)
- Product Weight: 0.3lbs (0.1kg) approx
- Shipping Dimensions (WxDxH): 9.13" x 4.72" x 3.50" (23.20cm x 12.00cm x 8.90cm)
