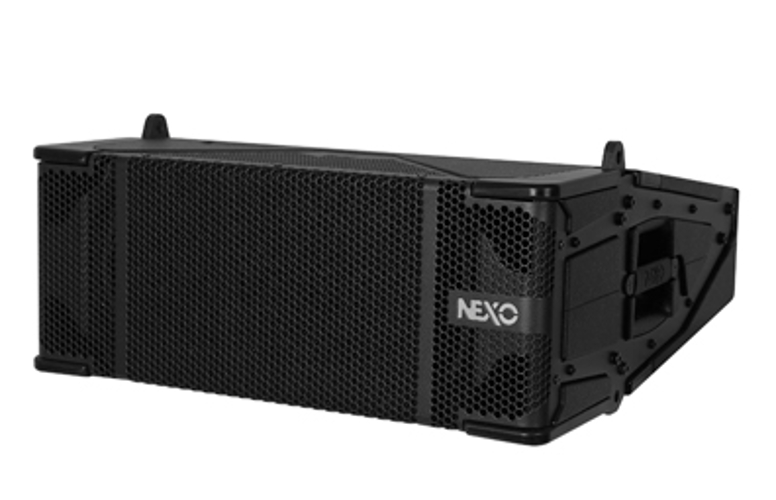

Nexo STM M2890 Audio Module

OUR PART #: STM-M2890 MFR #: STM-M2890

Copied to clipboard

The ‘fourth element’ in the suite of NEXO STM compatible loudspeaker modules, the M28 is an injection-moulded all-purpose 2- way loudspeaker cabinet... ...Read more

Nexo STM M2890 Audio Module Image 1
Nexo STM M2890 Audio Module

Call for price! Not available online.

Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The ‘fourth element’ in the suite of NEXO STM compatible loudspeaker modules, the M28 is an injection-moulded all-purpose 2- way loudspeaker cabinet, providing 90°/120° of horizontal dispersion and 0° to 15° splaying angle between modules.

M28 is the same width as the STM M46 main cabinet, 2/3 height, and can either be arrayed in the same column with M46 in a large-format STM system, arrayed in the same column as B112 bass cabinet in a mid-format STM system, or used independently from the M46 and B112.

Powered by the NEXO NXAMP Powered TDController, the M42 exhibits high SPL output, superior horizontal control and stable dispersion.

Nexo STM-M2890 Specifications:

  • Two 8" LF Drivers
  • Two HF Compression Driver
  • 141dB peak SPL
  • Frequency response: 60Hz-20kHz
  • Dimensions (HxWxD): 233 x 575 x 650mm
  • Weight: 82lb (37Kg)
