Nexo GEO S1210-ST
Array Module GEOS S12

OUR PART #:  GEOS1210ST

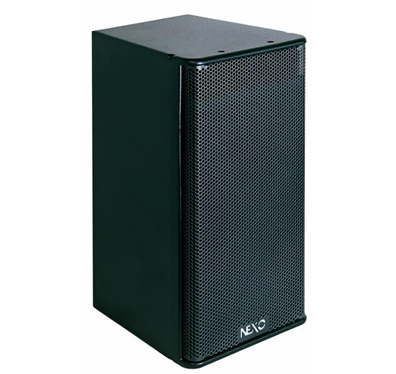

NEXO’s compact, 2-way GEO S1210-ST is a high-output, long throw version of the standard GEO S1210 cabinet, designed for stadium installations.
Learn More
Similar Products

NEXO’s compact, 2-way GEO S1210-ST is a high-output, long throw version of the standard GEO S1210 cabinet, designed for stadium installations. While a narrow-Q (10°) device in single-source mode, S1210-ST’s unique Hyperboloid Reflective Wavesource (HRW) also allows coupled S1210-STs to radiate as coherent, wavefronts, in either horizontally or vertically arrayed systems. GEO S1210-ST’s coupled MF/HF pattern control is array-dependent, as designed by NS-1 array software, and configured according to venue -specific geometry. Non- coupled MF/HF coverage configures at 80°or 120°. The S1210-ST module displays exceptional MF-LF output (105dB SPL nominal sensitivity -1W @1m) from a single 12" loudspeaker and NEXO’s proprietary Directivity Phase Device (DPD). NEXO’s digital N242 TDcontroller maximizes S1210’s MF/HF coherency.

Nexo GEO S1210-ST Features:

  • High SPL for long-throw applications
  • Enhanced speech intelligibility
  • Coherent Wave Propagation from NEXO’s Advanced GEOHyperbolic Wavesource
  • Advanced Constant Velocity Profile Output from 5.1°Wavefront Curvature
  • NS-1 Configurable, Ether SoundTM (Network)

Nexo GEO S1210-ST Specifications:

  • Components HF: 1 x 3” voice coil, 1.4” throat 16O ND driveron a 5° hyperboloid reflective wave source.
  • LF: 1 x 12” (30cm) high excursion neodymium 16Odriver.
  • Height x Width x Depth 344 x 675 x 378 mm (13 1/2” x26 1/2” x 14 7/8”) excluding accessories
  • Rigging axis to axis height: 345mm (13 1/2”)
  • Shape 10° Trapezoid
  • Weight net 28.05kg (61.8 lbs) including arrayassembly system.
  • Connectors 2x NL4MP SPEAKON 4-pole (In & Through)
  • Construction Baltic Birch ply with structured blackcoating.
  • Front finish Molded Dark Grey Metal Grill.
  • Flying points Two plates connecting with external accessories. Intercabinet angle adjustments = 0.2°, 0.315°, 0.5°, 0.8°; 1.25°, 2.0°, 3.15°, 5°, 6.3°,8.0°, 10.0° (logarithmic steps)
Main Touring/Production Bumper for GEOS12 Array Modules
Nexo GPT-BUMPER Main Touring/Production Bumper for GEOS12 Array Modules
The GPT-BUMPER is Nexo's main touring/production bumper for their GEOS12 array modules.
Call for price! Not available online.

Analog System Controller
Nexo GEOS12-TD Analog System Controller
The S12 TD controller is an advanced analogue processor that allows the S12 Series loudspeakers and companion NEXO SubBass exceptional performance from mid-sized packages. The S12 TD provides crossover, sensed-amplifier control and ...
Call for price!

Speaker Stand/Fly Bracket for GEO S12
Nexo GPT-PSBRK Speaker Stand/Fly Bracket for GEO S12
Speaker stand/fly bracket for GEO S12.
Call for price! Not available online.

1 Pair of Mini Crossbows for GEOS12 Array Modules (Requires 4 VXT-BL820s)
Nexo GPT-XBOW 1 Pair of Mini Crossbows for GEOS12 Array Modules (Requires 4 VXT-BL820s)
Nexo's GPT-XBOW is 1 pair of mini crossbows for their GEOS12 array modules.  Requires 4 VXT-BL820s (NOT INCLUDED!).
Call for price! Not available online.

Fixed Installation Bumper for GEO-S12
Nexo GPI-BUMPER Fixed Installation Bumper for GEO-S12
Nexo's GPI-BUMPER is a fixed installation bumper for curved vertical arrays.NOTE: Diagram above is not indicative of the actual color of the GPI-BUMPER.
Call for price! Not available online.

Fixed Install Angle Plate sold in Pairs
Nexo GPI-ANPL1 Fixed Install Angle Plate sold in Pairs
The GPI-ANPL1 are fixed install angle plates for GEOS1210 / 0.2° to 3.15°
Call for price! Not available online.

Adjustable Tilt Angle Lifting Bar for GEOS12, PS, PS R2 Loudspeakers
Nexo VNT-TTC Adjustable Tilt Angle Lifting Bar for GEOS12, PS, PS R2 Loudspeakers
Nexo's VNT-TTC is an adjustable tilt angle lifting bar for single GEO S12, PS, or PS R2 loudspeakers.  Requires VNT-XHBRK or VNT-TCBRK.
Call for price! Not available online.

Truss Clamp Adapter (for GEOS12, PS Series Accessories)
Nexo VNT-TCBRK Truss Clamp Adapter (for GEOS12, PS Series Accessories)
Truss clamp adapter for various GEO S12, PS, and PS accessories
Call for price! Not available online.

Lifting Ring for GEOS12, PS, PS R2 Accessories
Nexo VNT-XHBRK Lifting Ring for GEOS12, PS, PS R2 Accessories
Nexo's VNT-XHBRK is a lifting ring that works with various GEO S12, PS and PS R2 accessories.
Call for price! Not available online.
