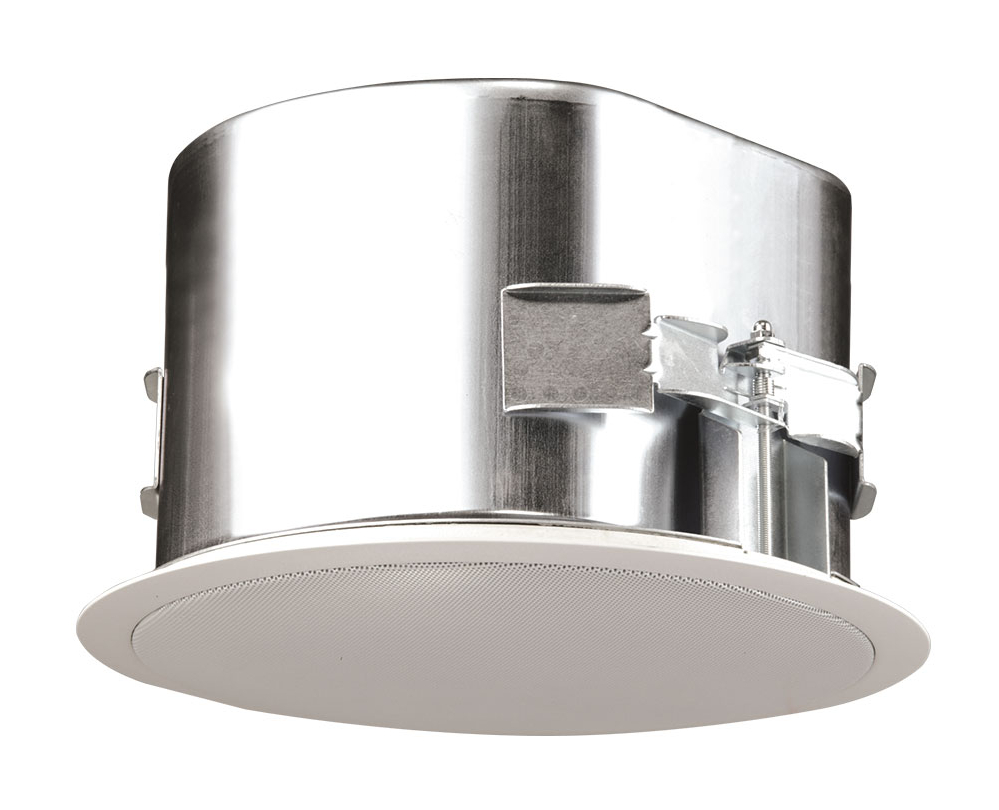

SoundTube IP-CM82-BGM
In-Ceiling POE Speaker, 8"

OUR PART #  IP-CM82-BGM

Selected Model Price: $473.20
List Price: $563.00

Save up to 16%! (Low Price Guarantee)
Select model: (shipping times are approximate)

The Soundtube IP-CM82-BGM is an 8-inch coaxial two-way blind-mount in-ceiling speaker which delivers true high-efficiency and performance across the operating bandwidth. By incorporating an 8-inch polypropylene driver with a butyl rubber surround and a 1-inch silk dome tweeter in a sealed drawn steel backcan with a tuned port, this speaker delivers maximum frequency response (55 Hz – 22 kHz, - 10 dB) in an integrated enclosure design.

Mounting hardware is included and features a constant-tension fixed-wing mounting system with a 21-gauge “full-metal” steel tile bridge ensuring rapid and secure installation in any sheetrock or drop-tile application. For easy ordering, stocking and installation, this series includes a color-coded (green) tile bridge and optional pre-construction bracket, as well as a six-position tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position.

Soundtube IP-CM82-BGM Features:

  • IP adressable, self powered (POE) speaker.
  • One 8.0 inch (203 mm) polypropylene woofer with butylrubber surround and one 1.0 inch (25 mm) silk dome tweeter.
  • BeamRing™ technology for mid-range clarity and ultrawide off axis performance
  • Easy-access six-position tap switch for25/70.7/100-volt and transformer bypass settings allows for easy ordering,stocking and installation.
  • Tuned port on baffle for added musicality and bassresponse down to 55 Hz (-10 dB).
  • Reduced amplification costs and maximum efficiency of89.0 dB sensitivity, 16 ohm impedance.
  • Incorporates a painted steel grille for lastingdurability.
  • Adaptable to material thicknesses ranging from 0.035inch (0.9 mm) to 1.6 inch (40.6 mm).
  • UL 1480 and 2043 pending.
  • High-quality black or white painted finish. Customcolors available.
  • Included accessories: Tile bridge, UL listed 0.5-inch conduit clamp, paint shield.

Soundtube IP-CM82-BGM Specifications:

  • System Type: 8-inch coaxial, in-ceiling, ported(64-watt transformer for 25/70.7/100-volt or transformer bypass)
  • Impedance (nominal): 16 ohm
  • Enclosure Material: Drawn steel backcan with ABS baffle
  • Grille: Painted steel
  • Inputs: RJ45 ethernet port
  • Colors: Black or white
  • Weight: 4.1 kg (9.0 lbs.)
  • Shipping Weight: 4.5 kg (10.0 lbs.)

SoundTube IP-CM82-BGM
In-Ceiling POE Speaker, 8"

OUR PART #  IP-CM82-BGM

Product Information:

The Soundtube IP-CM82-BGM is an 8-inch coaxial two-way blind-mount in-ceiling speaker which delivers true high-efficiency and performance across the operating bandwidth. By incorporating an 8-inch polypropylene driver with a butyl rubber surround and a 1-inch silk dome tweeter in a sealed drawn steel backcan with a tuned port, this speaker delivers maximum frequency response (55 Hz – 22 kHz, - 10 dB) in an integrated enclosure design.

Mounting hardware is included and features a constant-tension fixed-wing mounting system with a 21-gauge “full-metal” steel tile bridge ensuring rapid and secure installation in any sheetrock or drop-tile application. For easy ordering, stocking and installation, this series includes a color-coded (green) tile bridge and optional pre-construction bracket, as well as a six-position tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position.

Soundtube IP-CM82-BGM Features:

  • IP adressable, self powered (POE) speaker.
  • One 8.0 inch (203 mm) polypropylene woofer with butylrubber surround and one 1.0 inch (25 mm) silk dome tweeter.
  • BeamRing™ technology for mid-range clarity and ultrawide off axis performance
  • Easy-access six-position tap switch for25/70.7/100-volt and transformer bypass settings allows for easy ordering,stocking and installation.
  • Tuned port on baffle for added musicality and bassresponse down to 55 Hz (-10 dB).
  • Reduced amplification costs and maximum efficiency of89.0 dB sensitivity, 16 ohm impedance.
  • Incorporates a painted steel grille for lastingdurability.
  • Adaptable to material thicknesses ranging from 0.035inch (0.9 mm) to 1.6 inch (40.6 mm).
  • UL 1480 and 2043 pending.
  • High-quality black or white painted finish. Customcolors available.
  • Included accessories: Tile bridge, UL listed 0.5-inch conduit clamp, paint shield.

Soundtube IP-CM82-BGM Specifications:

  • System Type: 8-inch coaxial, in-ceiling, ported(64-watt transformer for 25/70.7/100-volt or transformer bypass)
  • Impedance (nominal): 16 ohm
  • Enclosure Material: Drawn steel backcan with ABS baffle
  • Grille: Painted steel
  • Inputs: RJ45 ethernet port
  • Colors: Black or white
  • Weight: 4.1 kg (9.0 lbs.)
  • Shipping Weight: 4.5 kg (10.0 lbs.)
