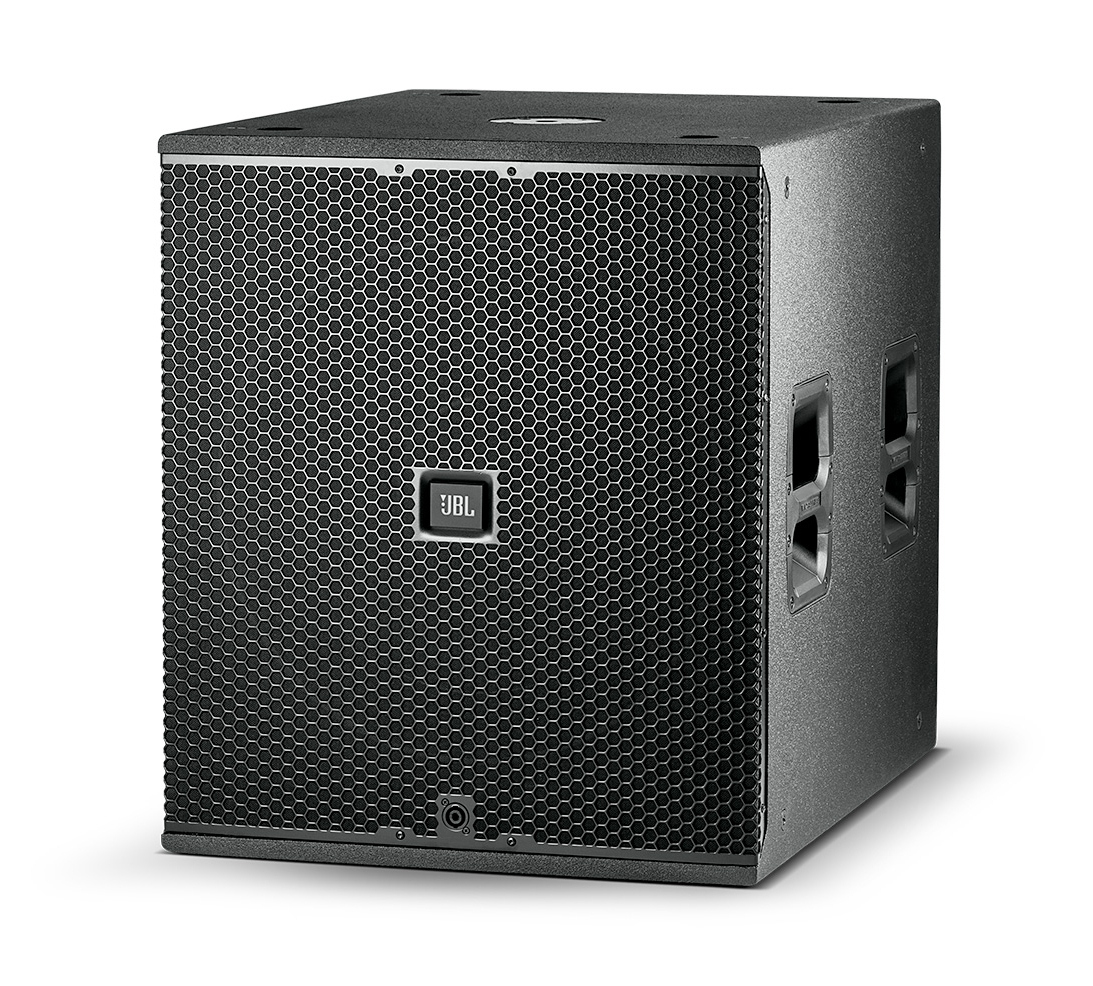

JBL VTXF18S
18" Passive Subwoofer

OUR PART #:  VTXF18S

JBL's VTX F series is a line of multi-purpose loudspeakers designed to give sound production companies a variety of flexible options for deploying high-quality audio...
Learn More
Our Price: $3,774.00
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL VTXF18S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

JBL's VTX F series is a line of multi-purpose loudspeakers designed to give sound production companies a variety of flexible options for deploying high-quality audio, either as a stand-alone FOH system, a satellite and subwoofer system (with companion VTX F18S), or on-stage floor monitor and fill speaker.

The VTX F18S is a compact, high power, cardioid-arrayable single 18" subwoofer designed to perfectly complement VTX F12 and F15. For small to medium format Front-of-House applications, single or multiple VTX F18S enclosures can be used with F12 or F15 enclosures in subwoofer / satellite mode. VTX F18S is also ideal for drum, DJ or side fill monitoring since it has been strategically dimensioned to physically integrate with either VTX F12 or F15 enclosures.

JBL F18S Features:

  • 2269H Differential Drive 18"
  • Exceptionally High Power Handling (2000 W Continuous,8000 W Peak AES 2 hr)
  • Massive Linear Excursion Capability (3.5"peak-to-peak)
  • Reverse-Cardioid Arrayable (front NL4)
  • Reinforced M20 Extension Rod Receptacle
  • 16x M10 Mount Points (4 per side, 4 top/bottom)
  • Convenient Handle Locations (4x)
  • Attachment plates included as standard for stacked F18S plus F12 or F15configurations

JBL F18S Specifications:

  • System Type: High Power Single 18” DifferentialDrive® Subwoofer
  • Components: 1 x 2269H, 460 mm (18 in) dia.,100 mm (4in) Dual Coil Neodymium Differential Drive®, Direct Cooled™ Transducer
  • Frequency Range (-10 dB): 24 Hz - 2.2 kHz
  • Frequency Response (+/-3 dB): 32.5 Hz - 1.7 kHz
  • Sensitivity (1W/1m): 97db half space
  • Nominal Section Impedances: 8 ohms
  • Transducer Power Rating (AES 2 hour):
    • 2000W cont
    • 8000W peak
  • Dimensions (WxHxD): 25.2" x 21.6" x 28.1" (640.1 x548.6 x 713.7 mm)
  • Weight: 100 lbs (45.4 kg)
