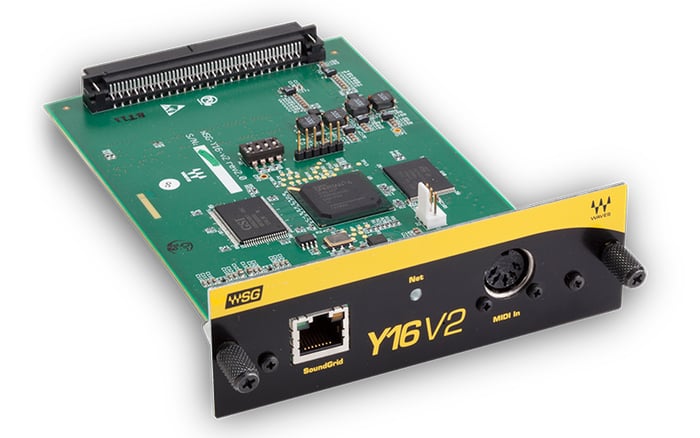

Waves WSG-Y16 V2
mini-YGDAI I/O Card for Yamaha Digital Consoles

OUR PART #  WSG-Y16-V2

Our Price: $800.00
(Low Price Guarantee)
In Stock

The Waves WSG-Y16 V2 I/O card for Yamaha digital consoles enables integration with Waves SoundGrid systems via a single Ethernet cable, providing live sound engineers with access to SoundGrid's low-latency plugin processing, multitrack recording and playback, and audio networking. WSG-Y16 V2 also features clock Sync over Ethernet for syncing multiple consoles and performing digital splits.

Together with a SoundGrid DSP server and a Mac or PC, the Waves WSG-Y16 V2 card lets you process 16 channels of audio in low latency using SoundGrid-compatible plugins, directly from your Yamaha console.

Waves WSG-Y16 V2 mini-YGDAI Card Features:

  • Extremely low-latency networking platform for processing, playback and recording
  • Supports 44.1, 48, 88.2 and 96 kHz sample rates
  • (16) I/O channels of audio at 44.1/48 kHz; (8) I/O channels of audio at 88.2/96 kHz
  • Clock Sync over Ethernet (SoE) for digital splits and audio networking
  • Works with all consoles installed with the WSG-Y16 V1 card
  • Redundancy and recovery options
  • Connects to SoundGrid systems and SoundGrid-compatible devices
  • Compatible with standard computers and switches
  • Comes with the SoundGrid Studio Application for ASIO/Core Audio recording and playback
  • MIDI control from consoles
  • Add up to four cards for 64/32-channel processing and recording

Waves WSG-Y16 V2 mini-YGDAI Card Specifications:

  • Compatible with these Yamaha consoles and mixers:
    • Up to 4 cards: PM5D / PM10 / DM2000 / O2R96 / DME64N
    • Up to 3 cards: M7CL / CL Series
    • Up to 2 cards: DM1000 / LS9-32 / QL Series
    • 1 card: LS9 / O1V96 / DME24N / TXn Series

Waves WSG-Y16 V2
mini-YGDAI I/O Card for Yamaha Digital Consoles

OUR PART #  WSG-Y16-V2

Product Information:

The Waves WSG-Y16 V2 I/O card for Yamaha digital consoles enables integration with Waves SoundGrid systems via a single Ethernet cable, providing live sound engineers with access to SoundGrid's low-latency plugin processing, multitrack recording and playback, and audio networking. WSG-Y16 V2 also features clock Sync over Ethernet for syncing multiple consoles and performing digital splits.

Together with a SoundGrid DSP server and a Mac or PC, the Waves WSG-Y16 V2 card lets you process 16 channels of audio in low latency using SoundGrid-compatible plugins, directly from your Yamaha console.

Waves WSG-Y16 V2 mini-YGDAI Card Features:

  • Extremely low-latency networking platform for processing, playback and recording
  • Supports 44.1, 48, 88.2 and 96 kHz sample rates
  • (16) I/O channels of audio at 44.1/48 kHz; (8) I/O channels of audio at 88.2/96 kHz
  • Clock Sync over Ethernet (SoE) for digital splits and audio networking
  • Works with all consoles installed with the WSG-Y16 V1 card
  • Redundancy and recovery options
  • Connects to SoundGrid systems and SoundGrid-compatible devices
  • Compatible with standard computers and switches
  • Comes with the SoundGrid Studio Application for ASIO/Core Audio recording and playback
  • MIDI control from consoles
  • Add up to four cards for 64/32-channel processing and recording

Waves WSG-Y16 V2 mini-YGDAI Card Specifications:

  • Compatible with these Yamaha consoles and mixers:
    • Up to 4 cards: PM5D / PM10 / DM2000 / O2R96 / DME64N
    • Up to 3 cards: M7CL / CL Series
    • Up to 2 cards: DM1000 / LS9-32 / QL Series
    • 1 card: LS9 / O1V96 / DME24N / TXn Series
