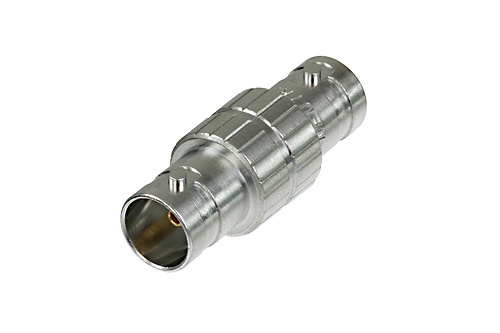

Neutrik NBB75FA BNC Feed Through CoUpler

Neutrik's NBB75FA BNC feed through coupler offers a true 75 Ohm design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.

Neutrik NBB75FA BNC Feed Through Coupler Features:

• Gold plated cage type center contact offers the best possible shielding and lowest contact resistance
• True 75 Ohm design meets stringent HD requirements
• Closed contact design - extremely robust

Neutrik NBB75FA BNC Feed Through Coupler Specifications:

• Electrical Specifications:
  • Signal Type: HD, SDI, Video, AES/EBU, Composite, YUV, RGB, RGBH, RGBHV
  • Contact resistance: 3 mOhms (inner)
  • Contact resistance: 2 mOhms (outer)
  • Dielectric strength: 1.5 kVdc
  • Insulation resistance: > 5 GOhms
  • Rated voltage: < 50 V
  • VSWR:
  • 1.03/>37 dB up to 1 GHz
  • 1.05/>32 dB up to 2 GHz
  • 1.08/>28 dB up to 3 GHz
• Mechanical Specifications:
  • Insertion force: < 25 N
  • Lifetime: > 1000 mating cycles
  • Locking device: Bayonett
• Material Specifications
  • Contacts: Brass (CuZn39Pb3) (ground contact)
  • Insert: PTFE
  • Shell: Brass (CuZn39Pb3)
• Environmental Specifications:
  • Temperature range: -30°C to +85°C
