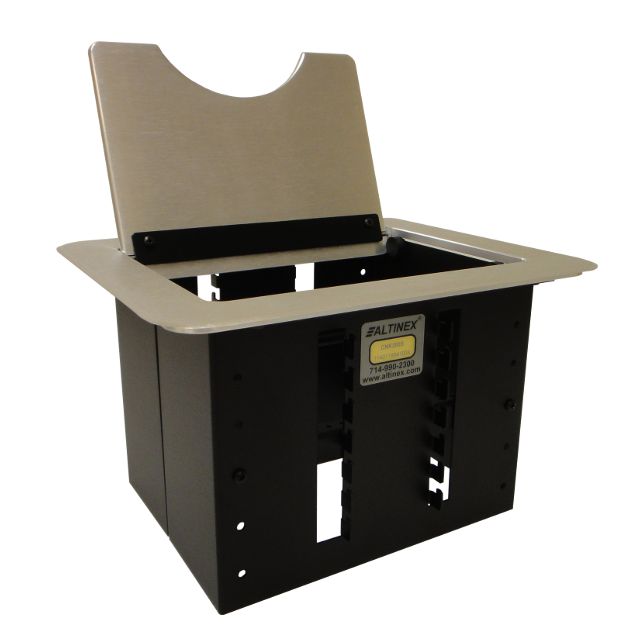

Altinex CNK200S Cable-Nook Modular Table Top Interconnect Box, Silver

The Altinex CNK200S Cable-Nook® provides a simple yet effective way of hiding and storing multimedia cables and fixed connectors. The cables remain connected to a presentation system, enabling the user to gain easy access to them for connection to video, audio, and other media sources.

Designed for boardrooms and conference rooms, the Modular Cable-Nook has more room than the original Cable-Nook by eliminating the two internal AC power sockets, yet provides a simple, effective way of hiding/storing multimedia cables and connectors. The cables remain connected to a presentation system enabling the user to access connections to video, audio, and other media sources.

The Modular Cable-Nook uses a trapdoor type half-moon lid that remains flush with the table when not in use. To access the cables or connectors, simply lift the trap door and pull the ends out, or plug cables into any installed fixed connectors. The lid closes easily even with several cables in use. After the presentation, the cable ends are returned to the Cable-Nook for safe storage.

Cables feed through the Cable-Nook to the underside of the table, enabling connection to the presentation system. The weight of the cables helps to feed the slack through the unit and the cable ends are kept from falling by a special adjustable retaining bracket. The bracket uses rounded edges to prevent kinking and is adjustable to both height and depth.

A variety of accessories are available for the Modular Cable-Nook, including power outlets, fixed connectors, and snap-in port panels.

Altinex CNK200S Cable-Nook Modular Table Top Interconnect Box Features

• Installs into tabletop
• Convenient access to cable ends or fixed connectors
• Optional retaining bracket adjusts for range of cable types
• Modular configuration: more room for additional connectors
• Simple, cost-effective interconnect solution
• Sold as an empty unit
• 23 slots available for power, grommets, retaining brackets or insert plates

Altinex CNK200S Cable-Nook Modular Table Top Interconnect Box Specifications

• Compatibility:
  • Cable-Nook Standard and Customizable Plates: CN5000 Series, CNK-IP-100 Series
  • All Altinex Snap-In Connectors
• Hole Sets: 23
• Minimum Table Thickness: 0.5" (13 mm)
• Maximum Table Thickness: 3.5" (89 mm)
• Housing Dimensions: 4.7" H x 6" W x 4.7" D (119 x 153 x 119 mm)
• Bezel Dimensions (Surface): 7.8" W x 6.5" D (200 x 166 mm)
• Color: Black
• Material: Aluminum
• Operating Temperature: 10°C-35°C
• Maximum Temperature: 50°C
• Humidity: 90% non-condensing
• MTBF (calculations): 40,000 hrs (min.)
• Accessories Included: Mounting Hardware ((2) thumb screws, (2) mounting brackets)

Note:

The CNK200S comes as an empty box; accessories must be ordered separately to provide a complete solution.
