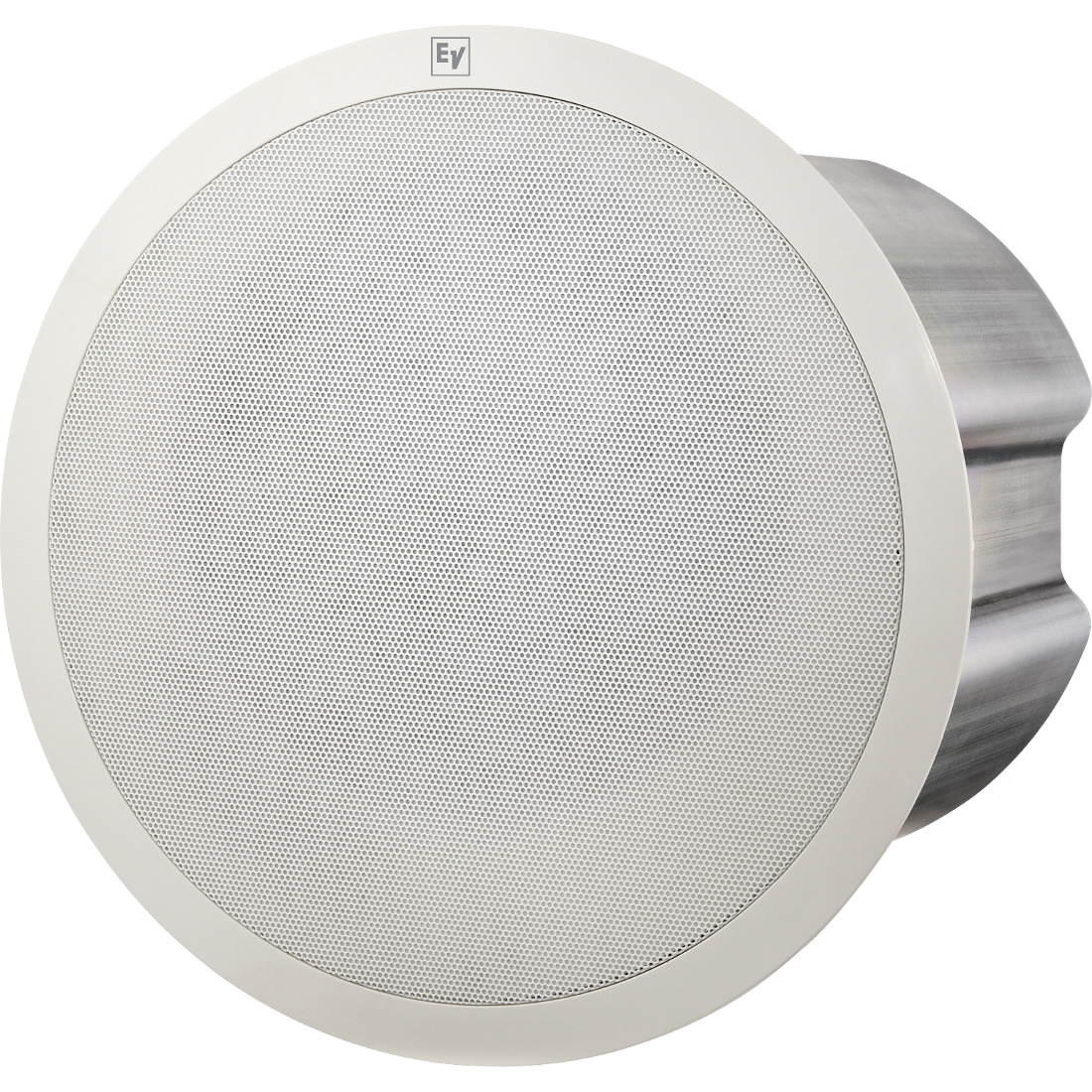

Electro-Voice PC 8.2
8-inch Two-Way Ceiling Speaker

OUR PART #:  PC8.2

The Electro-Voice PC 8.2 (8-inch two-way) is designed to be the most advanced ceiling speaker available today, with superior performance across every detail.
Learn More
Our Price: $845.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice PC 8.2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Electro-Voice PC 8.2 (8-inch two-way) is designed to be the most advanced ceiling speaker available today, with superior performance across every detail. Each self-contained unit features a dedicated compression driver for enhanced high-frequency performance and coverage control in comparison to current EVID ceiling speaker offerings. Simplified wiring and innovative new integrated mounting hardware allows for quicker installation into a wide range of ceiling cavities and construction formats. The model adds increased power handling (100 W), higher output (113 dB / 114 dB), and wider coverage angles (120° / 105°) to the user-friendly installation and low-profile looks that contractors expect from EVID products, complimenting the range as a new, high-end option. Ideal for retail spaces, restaurants, theater and stadium concourses, shopping malls, and a wide range of applications where premium-quality distributed audio is required.

Electro-Voice PC 8.2 Features:

  • High-performance EV-engineered compression driver.Ultra-wide HF dispersion provides extremely even coverage through room.
  • High-excursion woofer provides dramatic low-endfrequency extension. Reinforced steel back can provides rigid enclosure tominimize acoustic loss.
  • Four-point clamp mechanism and integrated mountinglegs enable quick ceiling installation.
  • Detachable pass-thru Phoenix-style signal connectionssimplify installation wiring. Tap selector with 8O / 70 V / 100 V operation.
  • Fully reinforced ABS UL-rated baffle ensures long life. Fully compliantwith EN 54 (pending), UL 1480, and 2043 standards.

Electro-Voice PC 8.2 Specifications:

  • Coverage (Nominal -6 dB): 100°
  • Cutout Size: 11.59" (294.3 mm)
  • Diameter (Max): 12.87" (327 mm)
  • Frequency Range: 40 - 20kHz
  • Impedance: 8 Ohm
  • Mounting Systems: C ring, tile bridge
  • Regulatory Approvals: UL1480, 2043; EN54; CE
  • Sensitivity 1 W/1 m: 88 dB
  • Max. SPL/1m (calc): 108 db avg, 114 pk dB
  • LF Transducer: 200 mm (8 in)
  • HF Power Handling: 200W program, 100W pink noiseWatts
  • HF Transducer: 35 mm compression driver
  • Connector Type: Removable locking 4-Pin (Phoenix)12AWG (2.5 mm) max wire size
  • Enclosure Material: ABS plastic (UL94V-0) baffle,steel back can
  • Grill: Color-matched steel grille with fabric
  • Height: 12.76" (324 mm)
  • Weight Net: 8 kg (17.64 lbs)
  • Shipping Weight: 20.23 kg (44.6 lbs)
